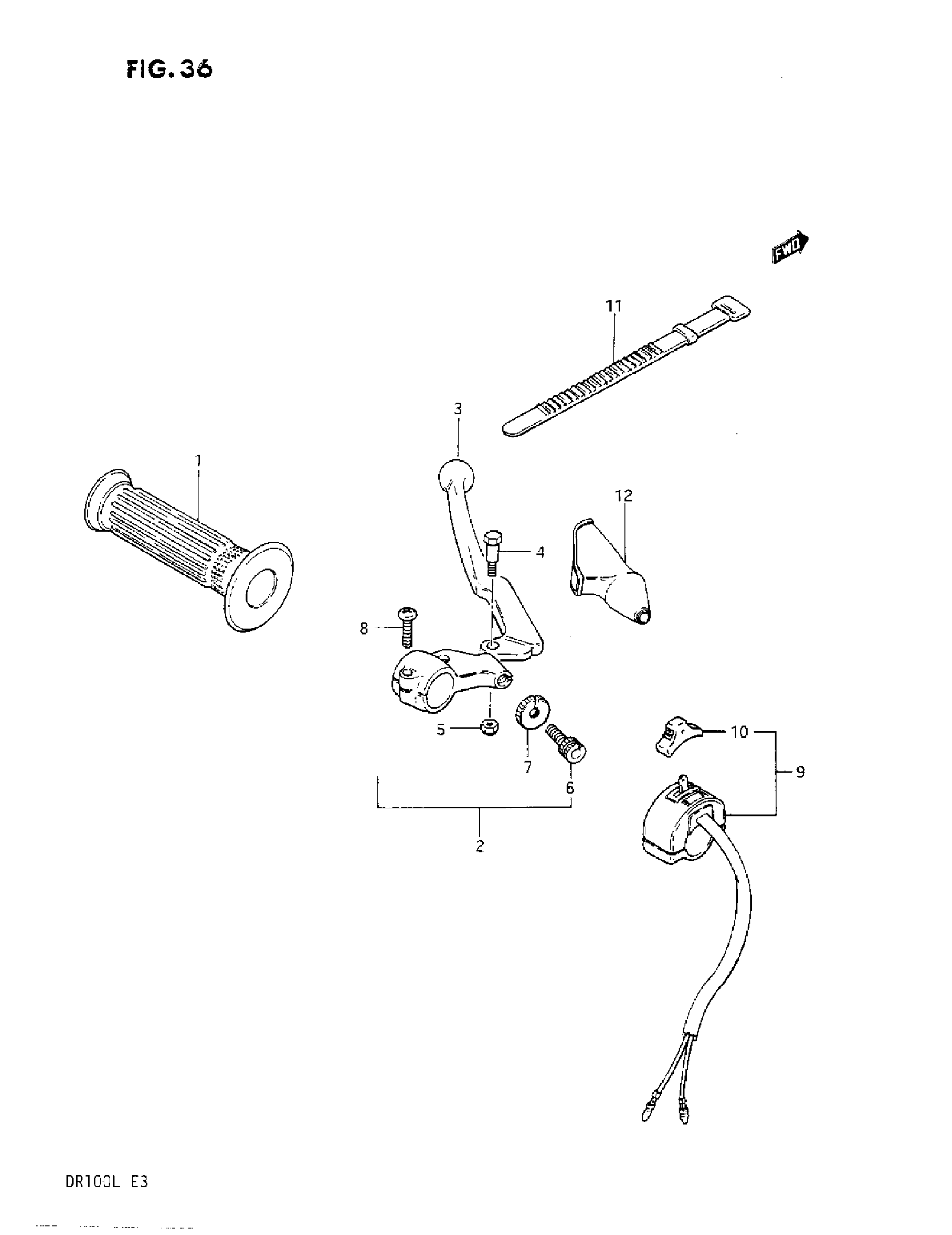

Suzuki DR100 (1987) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP,L This part replaces 57211-45020.

57211-45021

$11.44

2

LEVER ASSY, CLUTCH (BLACK) | MODEL F/G/H/J/K

57500-38210

Unavailable

2

LEVER ASSY, CLUTCH | MODEL L

57500-48200

Unavailable

3

LEVER, CLUTCH (BLACK) | MODEL F/G/H/J/K

57620-49101

Unavailable

3

LEVER, CLUTCH | MODEL L

57620-26500

$25.90

4

BOLT | MODEL F/G/H/J/K This part replaces 57431-11011.

57431-11013

$6.31

4

BOLT | MODEL L

57431-11013

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

ADJUSTER, CABLE

57441-26010

$4.48

7

NUT, CABLE ADJUSTER

57442-11010

$2.79

8

SCREW This part replaces 02112-06208.

02112-06207

$1.78

9

SWITCH ASSY, LIGHTING

37250-38200

Unavailable

10

KNOB, LIGHTING

57617-28602

Unavailable

11

BAND

09407-12402

$3.04

12

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.56
