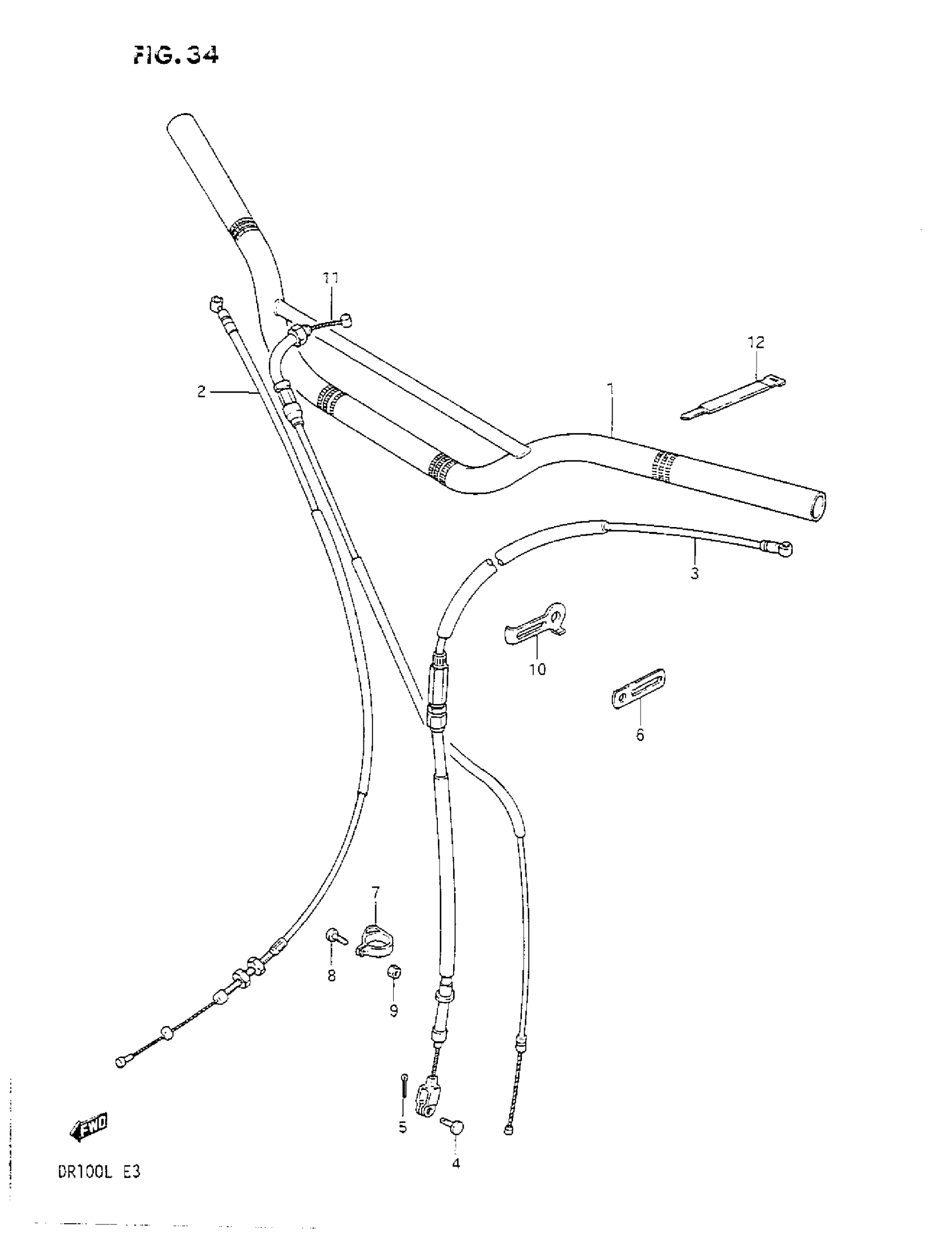

Suzuki DR100 (1987) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | MODEL F/G This part replaces 56110-05250-19T.

56110-05250-291

Unavailable

1

HANDLEBAR (BLACK) | MODEL H/J/K/L

56110-05250-291

Unavailable

2

CABLE, FRONT BRAKE

58110-05250

Unavailable

3

CABLE ASSY, CLUTCH

58200-05250

Unavailable

4

PIN

09200-06011

Unavailable

5

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

6

CLAMP This part replaces 09404-06412.

09404-06039

$1.74

7

CLAMP, NO.2

58285-05250

Unavailable

8

SCREW

02112-05164

$2.63

9

.NUT This part replaces 08310-22055.

09140-05006

$2.19

10

CLAMP, NO.3

58285-05201

Unavailable

11

CABLE ASSY, THROTTLE

58300-05250

Unavailable

12

CLAMP This part replaces 09407-18301.

09407-18302

$2.28
