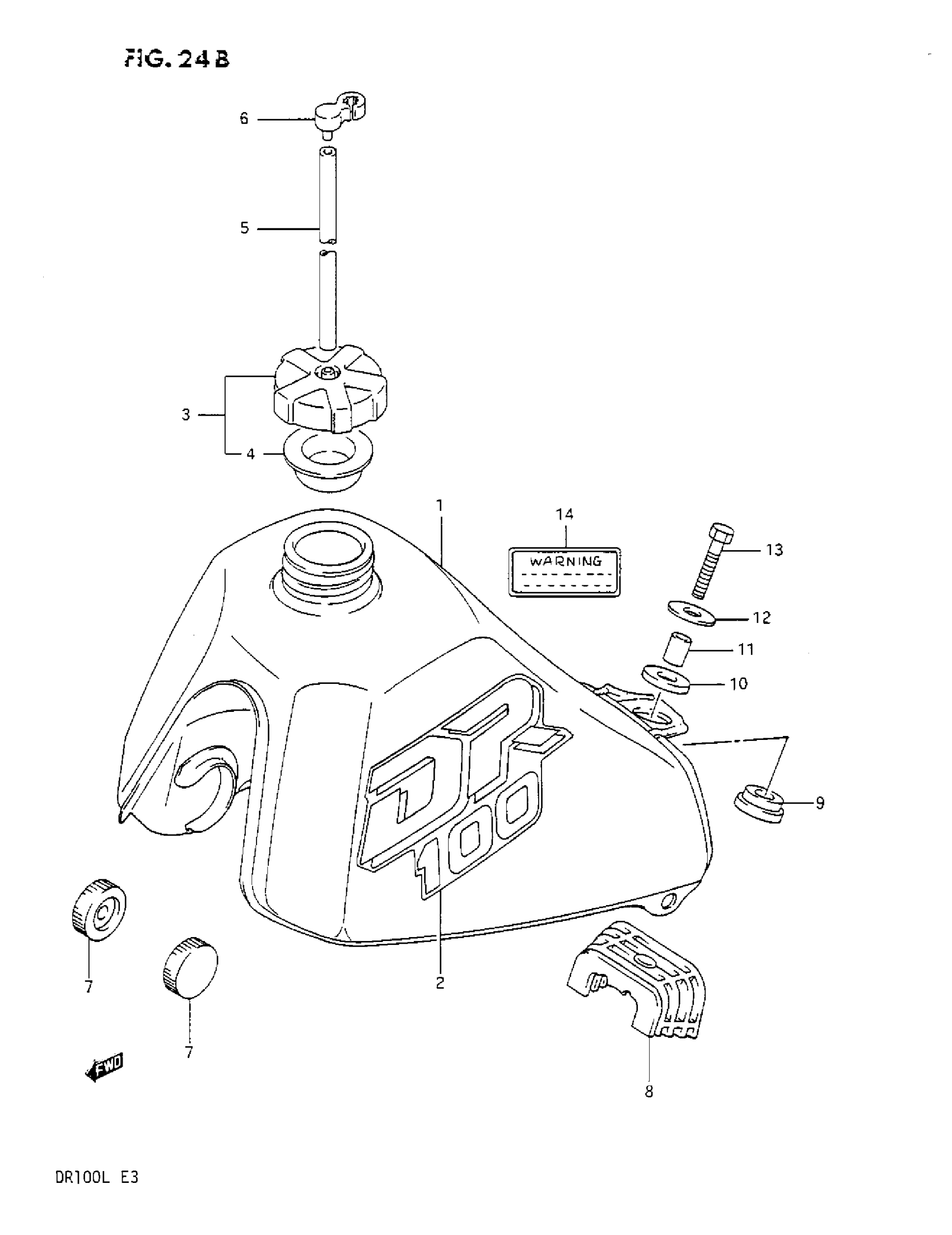

Suzuki DR100 (1987) FUEL TANK (L) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE)

44100-05930-30H

Unavailable

2

EMBLEM (BLUE)

68120-05210-3SD

Unavailable

3

CAP, FUEL TANK

44200-01890

Unavailable

4

GASKET This part replaces 44248-05210.

44248-05211

$3.76

5

HOSE,5X10X600 This part replaces 09352-50823-300.

44421-13ER0

$10.06

6

CLAMP

44486-32101

$3.65

7

CUSHION, FRONT

09329-10016

$3.10

8

CUSHION, REAR

44542-05250

Unavailable

9

CUSHION, REAR NO.1 This part replaces 09320-12010.

09320-12013

$2.60

10

CUSHION, REAR NO.2 This part replaces 09320-12023.

09320-12017

$2.18

11

SPACER

09180-08067

$2.41

12

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

13

BOLT This part replaces 01107-08307.

01500-08307

$3.04

14

LABEL, WARNING

68367-05250

Unavailable
