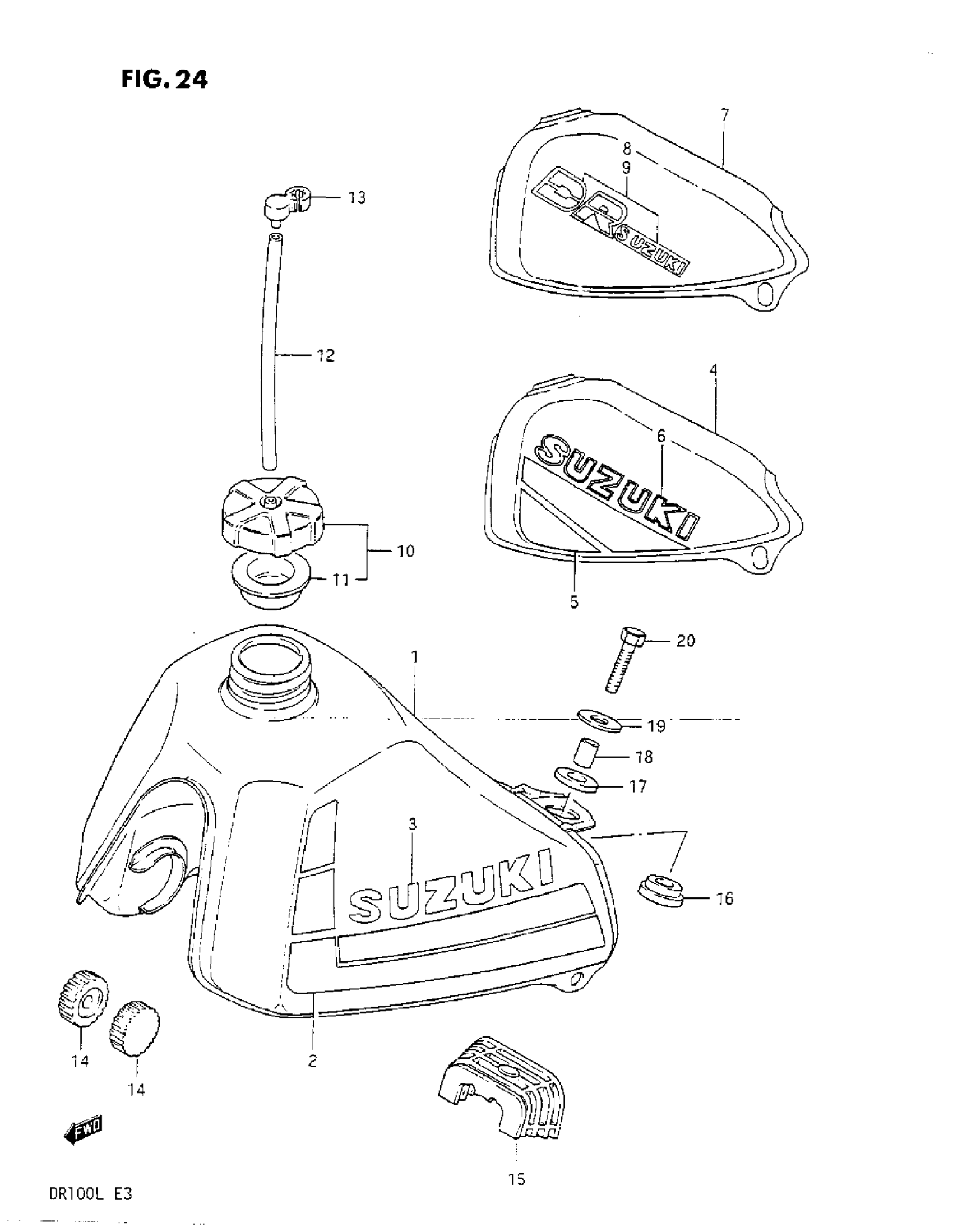

Suzuki DR100 (1987) FUEL TANK (F/G/H) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 49100-05280-163.

44110-05250-YD8

Unavailable

2

TAPE SET | MODEL F

68110-05110-67H

Unavailable

3

.EMBLEM (BLACK) | MODEL F This part replaces 68111-05200-019.

68111-47C10-019

$22.97

4

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 49100-05290-163.

44110-05250-YD8

Unavailable

5

TAPE SET, FUEL TANK | MODEL G

68110-05120-7CL

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 68111-29310-019.

68131-06C50-33J

Unavailable

7

TANK ASSY, FUEL (YELLOW) | MODEL H

44100-05900-25Y

Unavailable

8

EMBLEM, RH | MODEL H

68111-05210-9BZ

Unavailable

9

EMBLEM, LH | MODEL H

68121-05200-9BZ

Unavailable

10

CAP, FUEL TANK | MODEL F

44200-05812

Unavailable

10

CAP, FUEL TANK | MODEL G/H

44200-01890

Unavailable

11

GASKET This part replaces 44248-05210.

44248-05211

$3.76

12

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

13

CLAMP

44486-32101

$3.65

14

CUSHION, FRONT

09329-10016

$3.10

15

CUSHION, REAR

44542-05250

Unavailable

16

CUSHION, REAR NO.1 This part replaces 09320-12010.

09320-12013

$2.60

17

CUSHION, REAR NO.2 This part replaces 09320-12023.

09320-12017

$2.18

18

SPACER

09180-08067

$2.41

19

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

20

BOLT This part replaces 01107-08307.

01500-08307

$3.04
