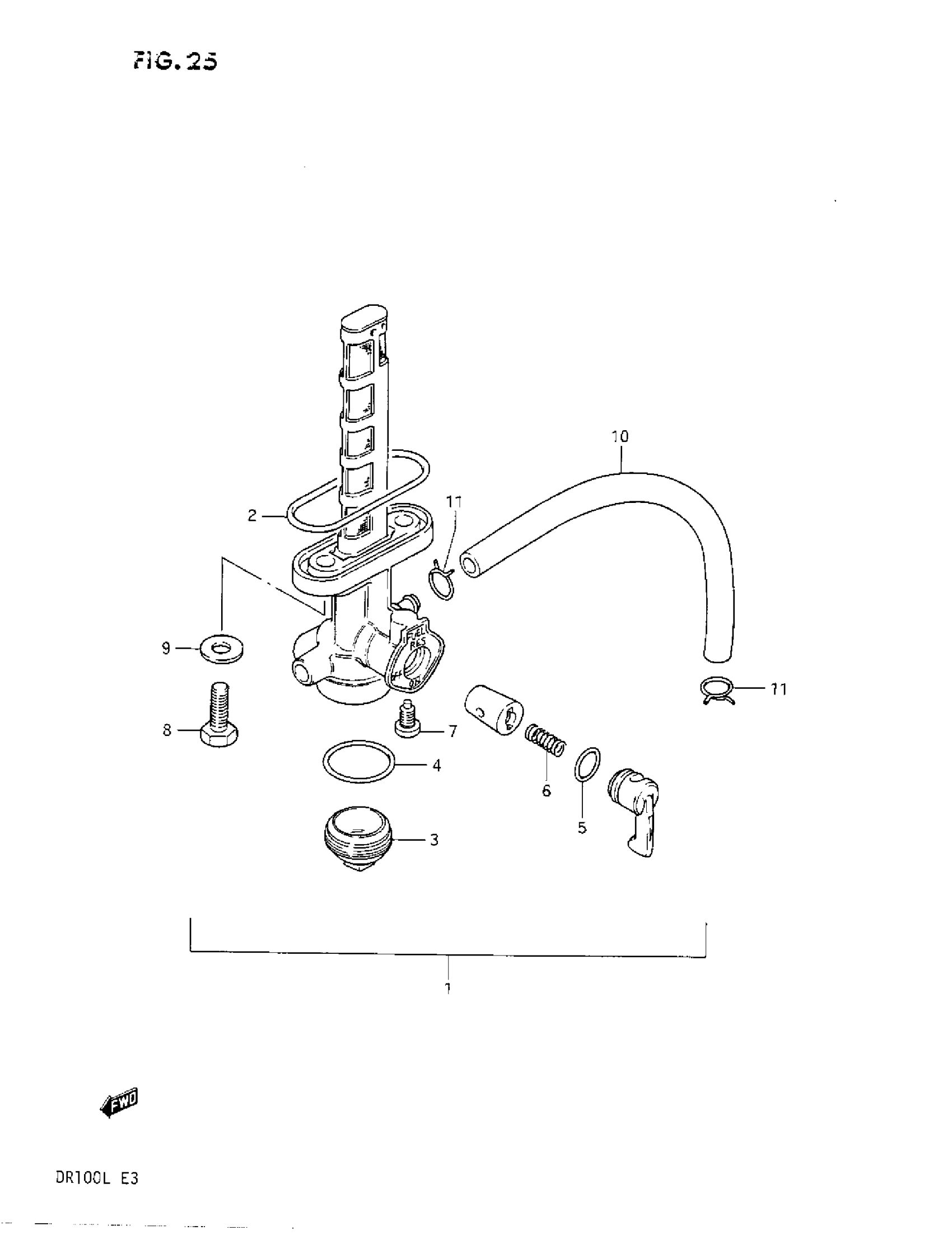

Suzuki DR100 (1987) FUEL COCK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44300-05251.

44300-05253

Unavailable

2

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$5.05

3

CUP

44347-28071

$8.98

4

O-RING This part replaces 44346-28070.

44346-28071

$2.40

5

O RING, LEVER This part replaces 44353-32470.

44353-12C01

$7.44

6

SPRING

44357-32470

$2.21

7

SCREW

44343-41370

$2.22

8

BOLT This part replaces 09128-06006.

09128-06057

$1.65

9

GASKET

09168-06026

$3.10

10

HOSE,5X10X600 | MODEL F/G/H/J/K This part replaces 09352-50823-240.

44421-13ER0

$10.06

10

HOSE,5X10X600 | MODEL L This part replaces 09352-50823-300.

44421-13ER0

$10.06

11

CLIP

09401-08401

$1.54
