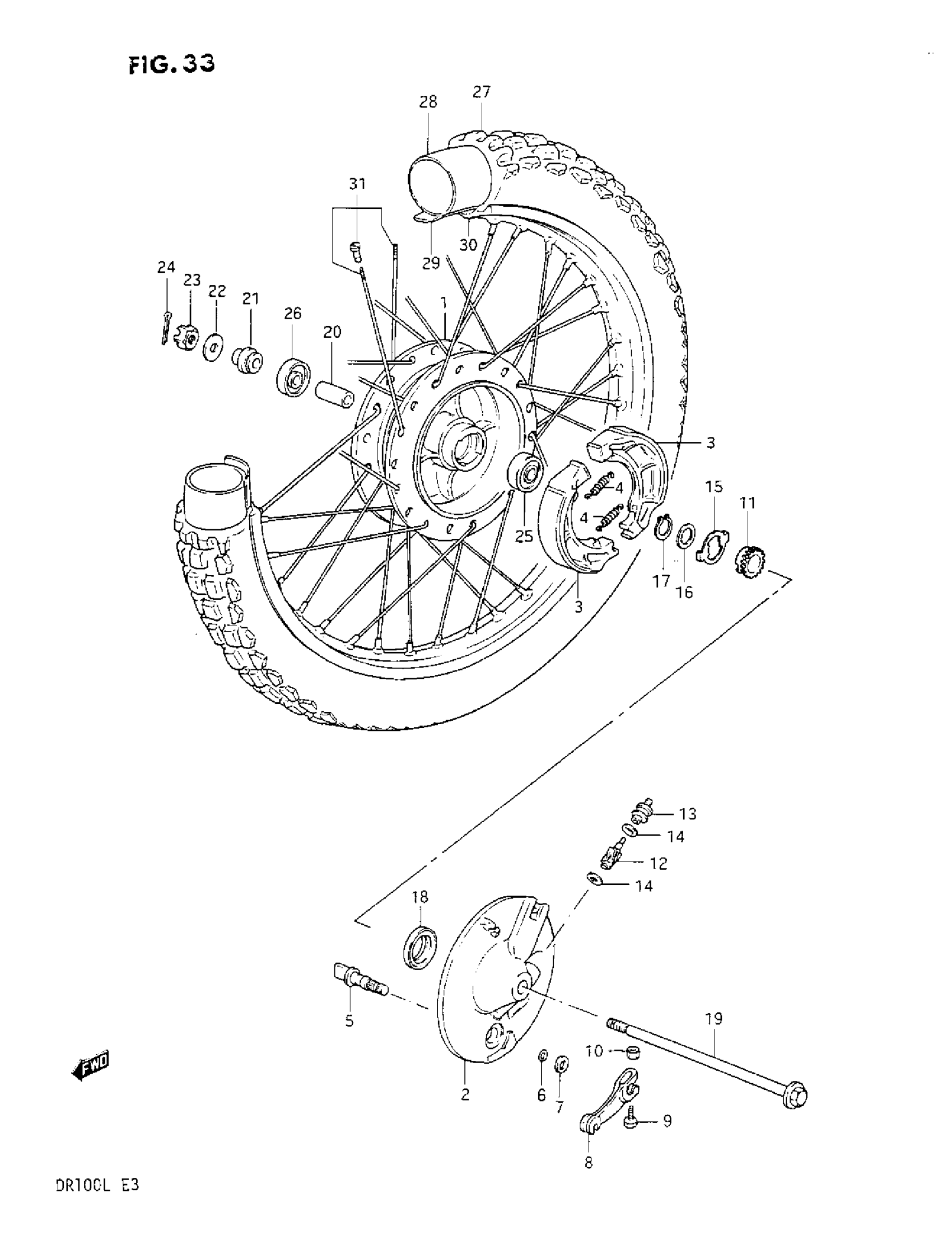

Suzuki DR100 (1987) FRONT WHEEL Diagram

#

Description
Price

1

HUB, WHEEL (BLACK) | MODEL F/G/H/J/K

54110-05200

Unavailable

1

HUB, WHEEL (BLACK) | MODEL L This part replaces 54110-05220.

54110-05200

Unavailable

2

PANEL, FRONT BRAKE (BLACK) | MODEL F/G/H/J/K

54210-05200

Unavailable

2

PANEL, FRONT BRAKE (BLACK) | MODEL L This part replaces 54210-05220.

54210-05200

Unavailable

3

SHOE & SPRING S | MODEL F This part replaces 54410-43010.

54400-43880

$39.22

3

SHOE & SPRING S | MODEL G/H This part replaces 54410-43011.

54400-43880

$39.22

3

SHOE & SPRING S | MODEL J/K/L This part replaces 54410-43030.

54400-43880

$39.22

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

SHAFT, BRAKE CAM This part replaces 54441-05200.

54441-26503

Unavailable

6

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

7

WASHER This part replaces 09160-14001.

09160-14055

$2.39

8

LEVER, FR BRAKE CAM

54451-26500

$14.76

9

BOLT This part replaces 01517-06358.

01550-06357

$2.77

10

NUT This part replaces 09159-06017.

08319-31067

$2.03

11

GEAR, SPEEDOMETER (NT:23)

54611-27102

Unavailable

12

PINION, SPEEDOMETER (NT:9)

54621-39202

Unavailable

13

BUSH

54632-02201

$11.83

14

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

15

DRIVER, GEAR

54661-07000

$4.52

16

THRUST WASHER (18.5X24X1)

09160-18002

$2.38

17

CIRCLIP

08331-11189

Unavailable

18

OIL SEAL This part replaces 09285-43001.

09283-43004

$14.03

19

AXLE, FRONT

54711-05200

Unavailable

20

SPACER (12.5X19X52) This part replaces 09180-12041.

09180-12144

$10.30

21

SPACER, RH

54740-05200

Unavailable

22

WASHER This part replaces 08322-11128.

08322-01127

$1.84

23

NUT This part replaces 08314-31128.

08314-3112A

$2.41

24

PIN This part replaces 04111-30308.

04111-3030A

$1.49

25

BEARING This part replaces 08143-62017.

08143-6201B

$10.80

26

BEARING, RH

08133-62017

$18.47

27

NO DESCRIPTION AVAILABLE This part replaces 55100-20520.

55100-205V0

Unavailable

28

TUBE ASSY, WHEEL INNER This part replaces 55200-20330.

55200-08G01

$22.77

29

PROTECTOR, INNER TUBE This part replaces 55261-20330.

55261-02B40

$6.88

30

RIM, WHEEL (1.40X17) GOLD | MODEL F/G/H/J/K

55311-05280

Unavailable

30

RIM, WHEEL (1.40X17) GOLD | MODEL L This part replaces 55311-05290.

55311-05280

Unavailable

31

SPOKE SET

55320-05240

Unavailable
