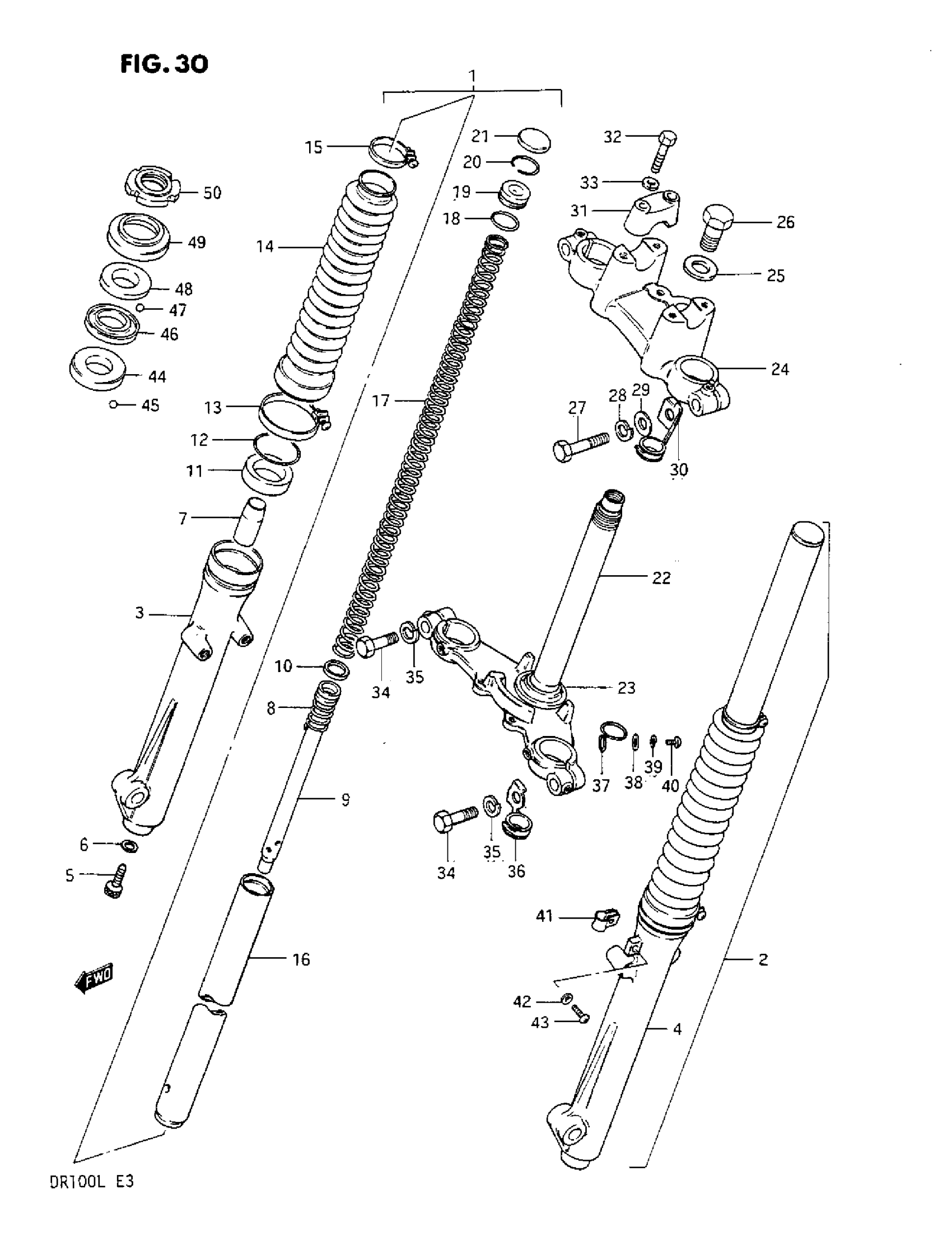

Suzuki DR100 (1987) FRONT FORK (H/J/K/L) Diagram

#

Description
Price

1

DAMPER ASSY, RH (BLUE/YELLOW) | MODEL H

51103-05260-9CC

Unavailable

1

DAMPER ASSY, RH (BLUE/YELLOW) | MODEL J

51103-05260-9VC

Unavailable

1

DAMPER ASSY, RH (BLUE/WHITE) | MODEL K

51103-05260-2US

Unavailable

1

DAMPER ASSY, RH (SILVER/YELLOW) | MODEL L

51103-05260-3SC

Unavailable

2

DAMPER ASSY, LH (BLUE/YELLOW) | MODEL H

51104-05260-9CC

Unavailable

2

DAMPER ASSY, LH (BLUE/YELLOW) | MODEL J

51104-05260-9VC

Unavailable

2

DAMPER ASSY, LH (BLUE/WHITE) | MODEL K

51104-05260-2US

Unavailable

2

DAMPER ASSY, LH (SILVER/YELLOW) | MODEL L

51104-05260-3SC

Unavailable

3

OUTER TUBE, RH (YELLOW) | MODEL H/J

51131-05260-25Y

Unavailable

3

OUTER TUBE, RH (SILVER) | MODEL K This part replaces 51131-05260-30H.

51131-05260-13L

Unavailable

3

OUTER TUBE, RH (SILVER) | MODEL L

51131-05260-13L

Unavailable

4

OUTER TUBE, LH (SILVER) | MODEL H/J This part replaces 51141-05260-25Y.

51141-05260-13L

Unavailable

4

OUTER TUBE, LH (SILVER) | MODEL K This part replaces 51141-05260-30H.

51141-05260-13L

Unavailable

4

OUTER TUBE, LH (SILVER) | MODEL L

51141-05260-13L

Unavailable

5

BOLT

51147-48130

$4.34

6

GASKET

51148-36011

$3.56

7

.PIECE, OIL LOCK

51195-48000

Unavailable

8

SPRING

51177-48720

Unavailable

9

CYLINDER

51146-05240

Unavailable

10

RING, PISTON

51196-48000

$8.42

11

.OIL SEAL

51153-48420

$13.30

12

.OIL SEAL This part replaces 51156-36030.

51156-48730

$5.32

13

BAND

51576-26515

Unavailable

14

BOOT (BLUE) | MODEL H

51571-26515-19F

Unavailable

14

BOOT (BLUE) | MODEL J/K This part replaces 51571-26515-34S.

51571-26515-19F

Unavailable

14

BOOT (BLUE) | MODEL L This part replaces 51571-26515-25Y.

51571-26515-19F

Unavailable

15

BAND

51575-26515

Unavailable

16

INNER TUBE

51110-05260

Unavailable

17

SPRING

51171-05240

Unavailable

18

O-RING

51181-33131

$4.68

19

SEAT, SPRING

51175-48500

Unavailable

20

RING

51169-48500

$3.37

21

CAP

51189-26515

Unavailable

22

STEM,STEERING(B | MODEL H This part replaces 51410-05240-291.

51410-05280-291

Unavailable

22

STEM,STEERING(B | MODEL J/K This part replaces 51410-05241-291.

51410-05280-291

Unavailable

22

STEM,STEERING(B | MODEL L This part replaces 51410-05241-13L.

51410-05280-291

Unavailable

23

OUTER RACE

51621-33001

$16.25

24

NO DESCRIPTION AVAILABLE This part replaces 51311-05240-291.

51311-26505-291

Unavailable

25

WASHER This part replaces 51356-20900.

51356-46030

Unavailable

26

BOLT

51352-20900

Unavailable

27

BOLT This part replaces 01107-10404.

01500-1040A

$3.85

28

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

29

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.84

30

CLIP

51455-05240

Unavailable

31

HOLDER, HANDLE (BLACK)

56211-27200-291

$17.90

32

BOLT This part replaces 01204-08354.

01204-08357

$2.09

33

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

34

BOLT, HANDLE HOLDER This part replaces 01107-10355.

01500-1035B

$3.72

35

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

36

CLIP

51452-05240

Unavailable

37

CLIP

51452-48500

Unavailable

38

WASHER This part replaces 08322-21067.

08322-01067

$2.13

39

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

40

SCREW This part replaces 02112-06128.

02112-06127

$1.84

41

CLIP

51452-46040

$6.58

42

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

43

SCREW This part replaces 02112-04167.

02112-0416A

$1.49

44

RACE, INNER LOWER

51611-33002

$13.81

45

BALL, LOWER

06111-08003

$1.49

46

RACE,STEERING INNER UPPER

51611-20002

$11.95

47

BALL, UPPER

06111-06003

$1.49

48

RACE,STEERING OUTER UPPER

51621-28000

$11.95

49

DUST SEAL,STEERING UPPER

51643-25001

$4.43

50

NUT, STEERING STEM

51631-28000

$17.37
