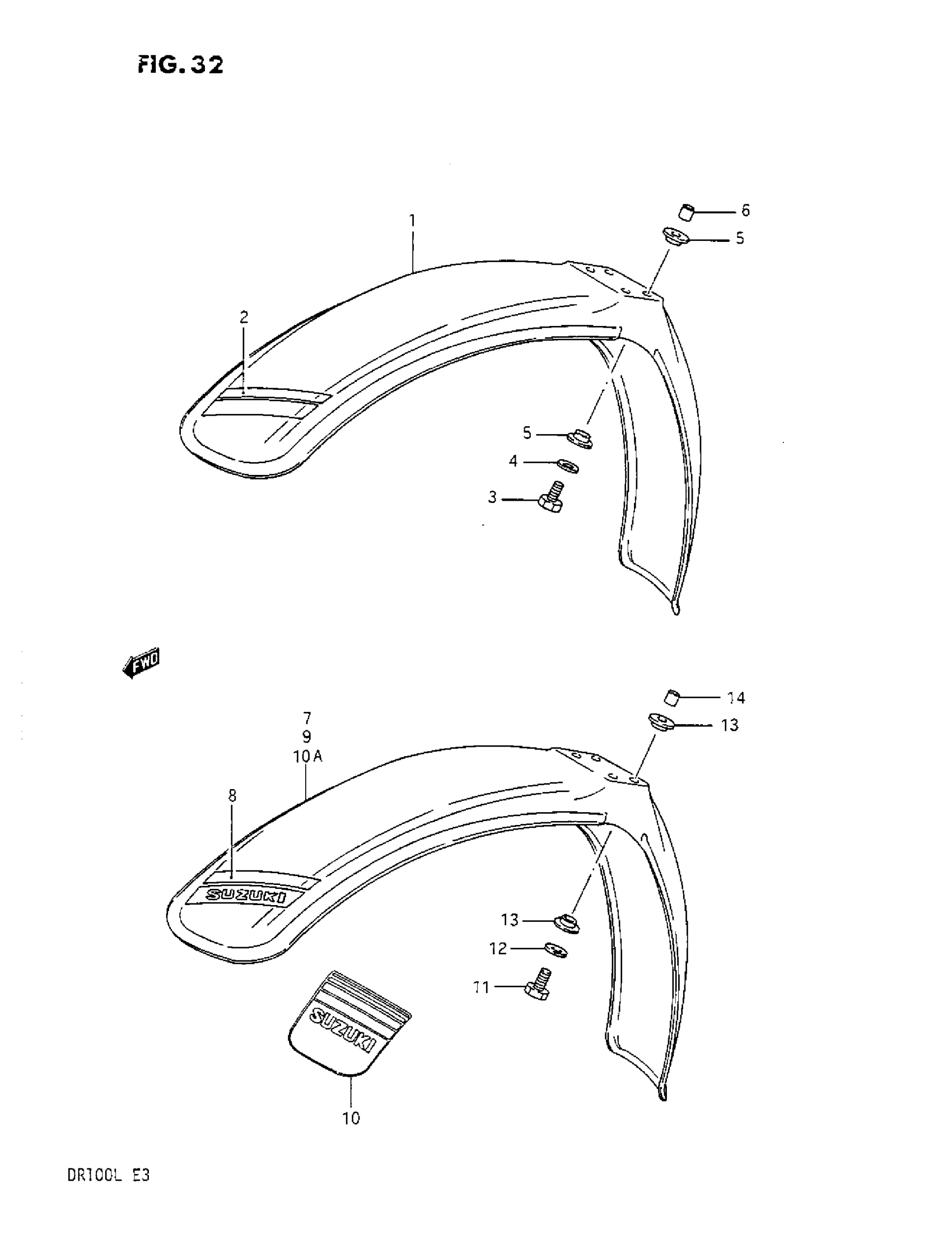

Suzuki DR100 (1987) FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL F/G This part replaces 53111-05252-163.

53111-05252-13L

Unavailable

2

TAPE SET | MODEL G

68150-05200-7CL

Unavailable

3

BOLT | MODEL F/G This part replaces 01107-06257.

01500-06257

$1.97

4

LOCK WASHER | MODEL F/G This part replaces 08321-21067.

08321-01067

$2.13

5

WASHER (6.3X16X1) | MODEL F/G

09169-06053

$1.49

6

SPACER (6.5X10X10) | MODEL F/G This part replaces 09180-06030.

09180-06310

$1.91

7

FENDER, FRONT (YELLOW) | MODEL H

53110-05210-25Y

Unavailable

8

TAPE SET | MODEL H

68150-05210-9BZ

Unavailable

9

FENDER, FRONT (YELLOW) | MODEL J This part replaces 53110-05220-25Y.

53110-05210-25Y

Unavailable

10

TAPE | MODEL J

68155-05200-9SG

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 53111-05252-30H.

53111-05252-13L

Unavailable

11

BOLT | MODEL H/J/K/L This part replaces 01107-06257.

01500-06257

$1.97

12

LOCK WASHER | MODEL H/J/K/L This part replaces 08321-21067.

08321-01067

$2.13

13

WASHER (6.3X16X1) | MODEL H/J/K/L

09169-06053

$1.49

14

SPACER (6.5X10X10) | MODEL H/J/K/L This part replaces 09180-06030.

09180-06310

$1.91
