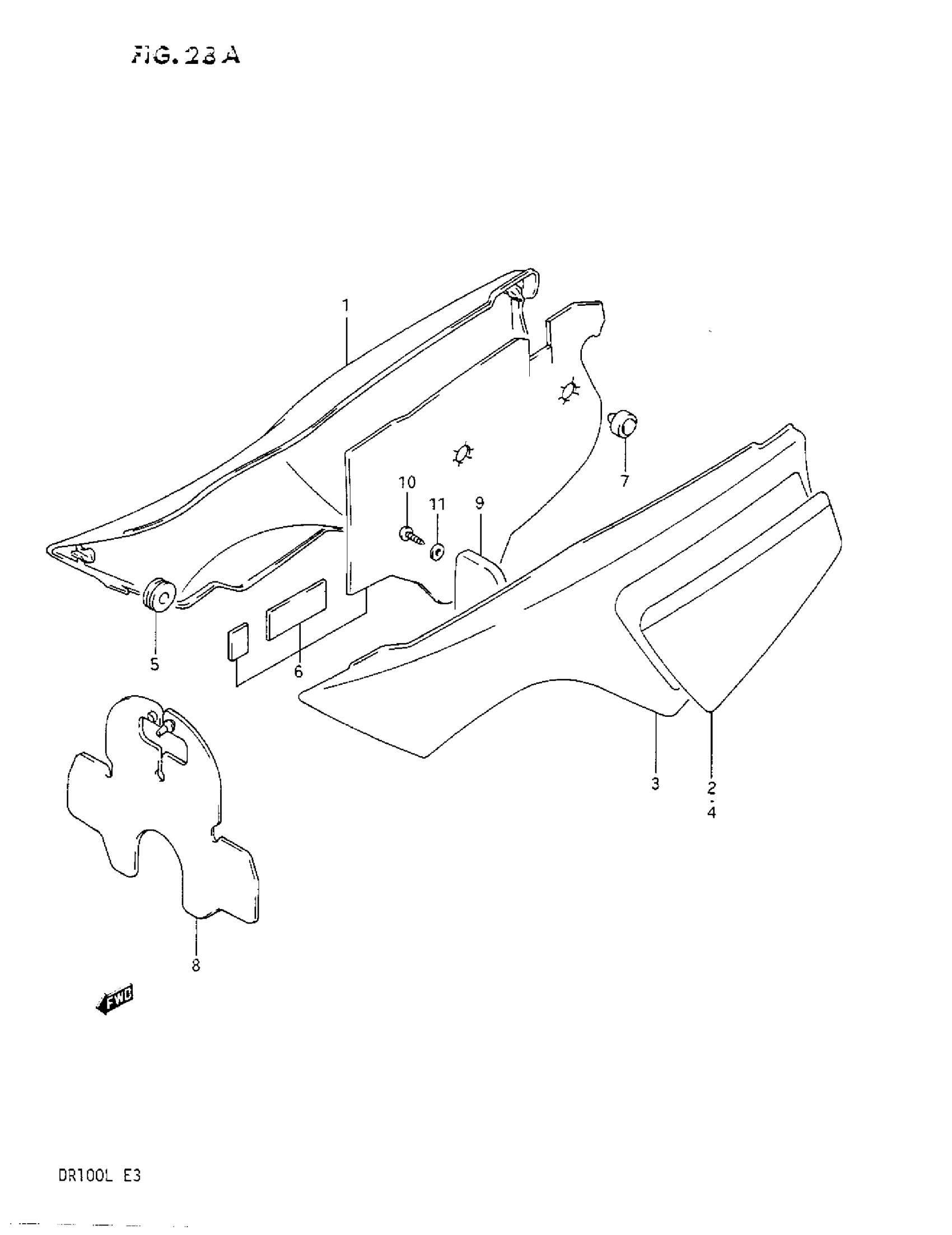

Suzuki DR100 (1987) FRAME COVER (L) Diagram

#

Description
Price

1

COVER,FRAME,RH This part replaces 47110-05280-30H.

47111-05250-13L

Unavailable

2

TAPE, FRAME COVER RH

68135-05220-3SE

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 47210-05280-30H.

47211-05251-13L

Unavailable

4

TAPE, FRAME COVER LH

68145-05220-3SE

Unavailable

5

CUSHION

09320-08018

$3.04

6

HEAT SHIELD SET, FRAME COVER

47100-05851

Unavailable

7

CUSHION, RH

09321-10007

$2.71

8

MUD FLAP, FRONT

47157-05250

Unavailable

9

MUD GUARD, AIR CLEANER LH

47219-05260

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 03511-04086.

03511-04083

Unavailable

11

WASHER This part replaces 08322-21047.

08322-01047

$1.86
