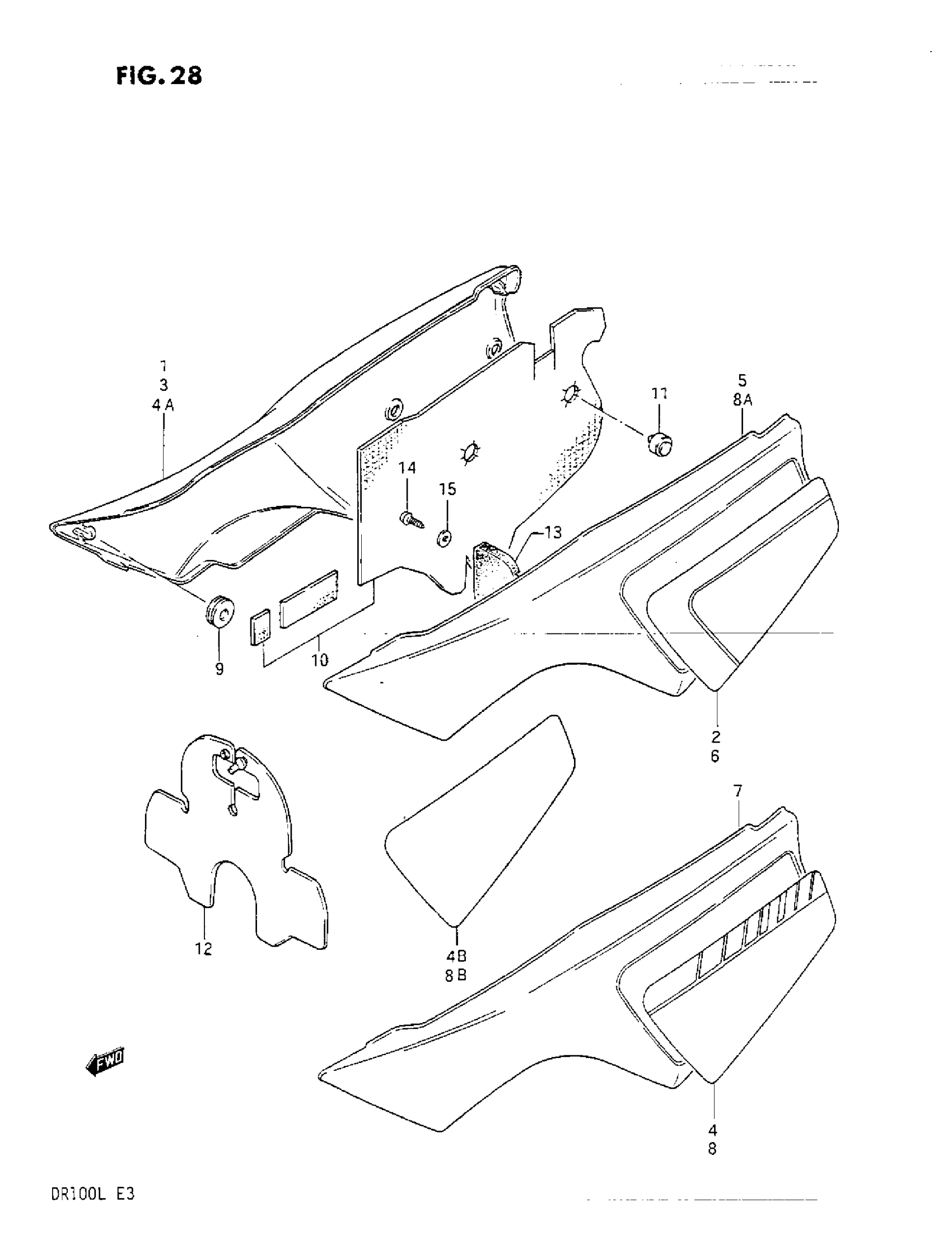

Suzuki DR100 (1987) FRAME COVER (H/J/K) Diagram

#

Description
Price

1

COVER,FRAME,RH | MODEL H This part replaces 47110-05250-25Y.

47111-05250-13L

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL H

68130-05290-9BZ

Unavailable

3

COVER,FRAME,RH | MODEL J This part replaces 47110-05260-25Y.

47111-05250-13L

Unavailable

4

TAPE, FRAME COVER RH | MODEL J

68135-05200-9UP

Unavailable

4

COVER,FRAME,RH | MODEL K This part replaces 47110-05270-30H.

47111-05250-13L

Unavailable

4

TAPE, FRAME COVER RH (BLUE) | MODEL K

68135-05210-08K

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 47210-05250-25Y.

47211-05251-13L

Unavailable

6

TAPE SET, FRAME COVER LH | MODEL H

68140-05290-9BZ

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 47210-05260-25Y.

47211-05251-13L

Unavailable

8

TAPE, FRAME COVER LH | MODEL J

68145-05200-9UP

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 47210-05270-30H.

47211-05251-13L

Unavailable

8

TAPE FRAME COVER LH (BLUE) | MODEL K

68145-05210-08K

Unavailable

9

CUSHION

09320-08018

$3.04

10

HEAT SHIELD SET, FRAME COVER

47100-05851

Unavailable

11

CUSHION, RH

09321-10007

$2.71

12

MUD FLAP, FRONT

47157-05250

Unavailable

13

MUD GUARD, AIR CLEANER LH

47219-05260

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 03511-04086.

03511-04083

Unavailable

15

WASHER This part replaces 08322-21047.

08322-01047

$1.86
