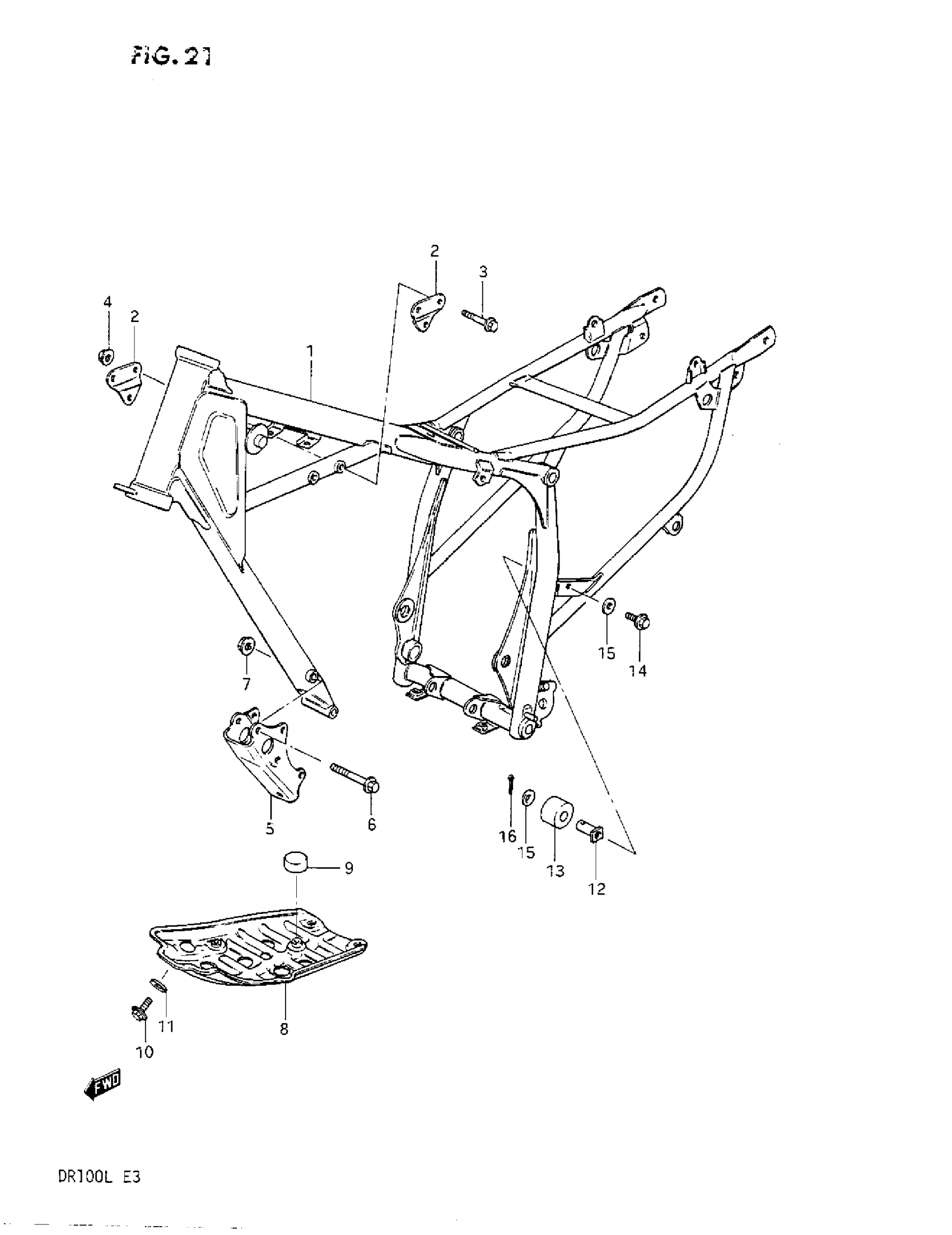

Suzuki DR100 (1987) FRAME Diagram

#

Description
Price

1

FRAME (BLUE) | MODEL F/G

41100-05250-19F

Unavailable

1

FRAME (SILVER) | MODEL H

41100-05250-13L

Unavailable

1

FRAME (YELLOW) | MODEL J/K This part replaces 41100-05250-34S.

41100-05250-163

Unavailable

1

FRAME (YELLOW) | MODEL L

41100-05250-163

Unavailable

2

PLATE, UPPER

41991-05250

Unavailable

3

BOLT (8X50) | MODEL F/G/H

09103-08081

$3.72

3

BOLT,8X50 | MODEL J/K/L This part replaces 09103-08082.

09103-08395

$3.68

4

NUT This part replaces 08319-31085.

08319-3108A

$2.32

5

PLATE, LOWER | MODEL F/G/H

41992-05250

Unavailable

5

PLATE, LOWER (YELLOW) | MODEL J/K This part replaces 41992-05250-34S.

41992-05250-163

Unavailable

5

PLATE, LOWER (YELLOW) | MODEL L

41992-05250-163

Unavailable

6

BOLT (8X67) | MODEL F/J/K/L This part replaces 09103-08075.

09103-08037

$5.57

6

BOLT | MODEL H

09103-08037

$5.57

7

NUT | MODEL F/J/K/L This part replaces 08319-31085.

08319-3108A

$2.32

7

NUT | MODEL H

08319-31087

$2.32

8

PROTECTOR, ENGINE (SILVER) | MODEL F/G This part replaces 42510-05202-08C.

42510-05203-13L

Unavailable

8

PROTECTOR, ENGINE (SILVER) | MODEL H/J/K This part replaces 42510-05202-13L.

42510-05203-13L

Unavailable

8

PROTECTOR, ENGINE (SILVER) | MODEL L

42510-05203-13L

Unavailable

9

CUSHION

09329-12003

Unavailable

10

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

11

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

12

BOSS, CHAIN CONTROL

43910-20400

Unavailable

13

ROLLER, CHAIN CONTROL

43911-20400

Unavailable

14

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

$1.97

15

WASHER This part replaces 08322-21108.

08322-01107

$2.15

16

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49
