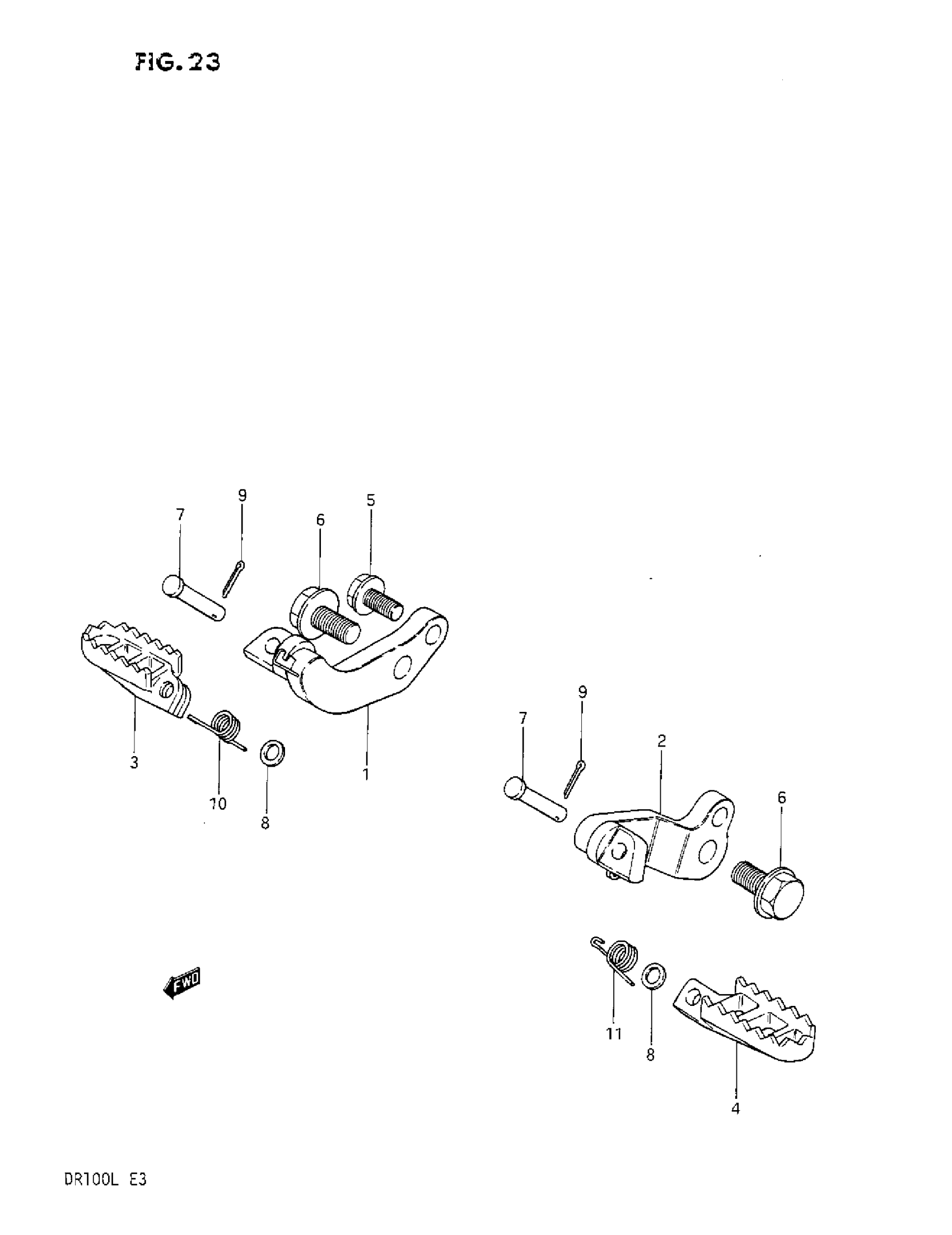

Suzuki DR100 (1987) FOOTREST Diagram

#

Description
Price

1

HOLDER, FOOTREST RH (BLACK) | MODEL F/G This part replaces 43510-05260-19F.

43510-05260-019

Unavailable

1

HOLDER: FOOTREST RH (SILVER) | MODEL H

43510-05260-13L

Unavailable

1

HOLDER, FOOTREST RH (BLACK) | MODEL J/K This part replaces 43510-05260-34S.

43510-05260-019

Unavailable

1

HOLDER, FOOTREST RH (BLACK) | MODEL L

43510-05260-019

Unavailable

2

HOLDER, FOOTREST LH (BLACK) | MODEL F/G This part replaces 43520-05260-19F.

43520-05260-019

Unavailable

2

HOLDER, FOOTREST LH (BLACK) | MODEL H This part replaces 43520-05260-13L.

43520-05260-019

Unavailable

2

HOLDER, FOOTREST LH (BLACK) | MODEL J/K This part replaces 43520-05260-34S.

43520-05260-019

Unavailable

2

HOLDER, FOOTREST LH (BLACK) | MODEL L

43520-05260-019

Unavailable

3

FOOTREST, FRONT RH (BLACK) | MODEL F/G This part replaces 43551-37202-19F.

43551-37202-019

Unavailable

3

FOOTREST, FRONT RH (BLACK) | MODEL H This part replaces 43551-37202-13L.

43551-37202-019

Unavailable

3

FOOTREST, FRONT RH (BLACK) | MODEL J/K This part replaces 43551-37202-34S.

43551-37202-019

Unavailable

3

FOOTREST, FRONT RH (BLACK) | MODEL L

43551-37202-019

Unavailable

4

FOOTREST, FRONT LH (BLACK) | MODEL F/G This part replaces 43561-40401-19F.

43561-40401-019

Unavailable

4

FOOTREST, FRONT LH (BLACK) | MODEL H This part replaces 43561-40401-13L.

43561-40401-019

Unavailable

4

FOOTREST, FRONT LH (BLACK) | MODEL J/K This part replaces 43561-40401-34S.

43561-40401-019

Unavailable

4

FOOTREST, FRONT LH (BLACK) | MODEL L

43561-40401-019

Unavailable

5

BOLT, PROP SHAFT REAR | MODEL F/G This part replaces 01517-10205.

01550-1020A

$3.05

5

BOLT, PROP SHAFT REAR | MODEL H/J/K/L This part replaces 01517-10208.

01550-1020A

$3.05

6

BOLT | MODEL F/G This part replaces 01517-12255.

01550-1225A

$4.05

6

BOLT | MODEL H/J/K/L This part replaces 01527-12257.

01550-12257

Unavailable

7

PIN This part replaces 09200-08035.

09200-08064

$6.13

8

WASHER This part replaces 08322-21088.

08322-01087

$2.13

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

10

SPRING, RH

09448-14027

Unavailable

11

SPRING, LH This part replaces 43582-14300.

43582-14600

Unavailable
