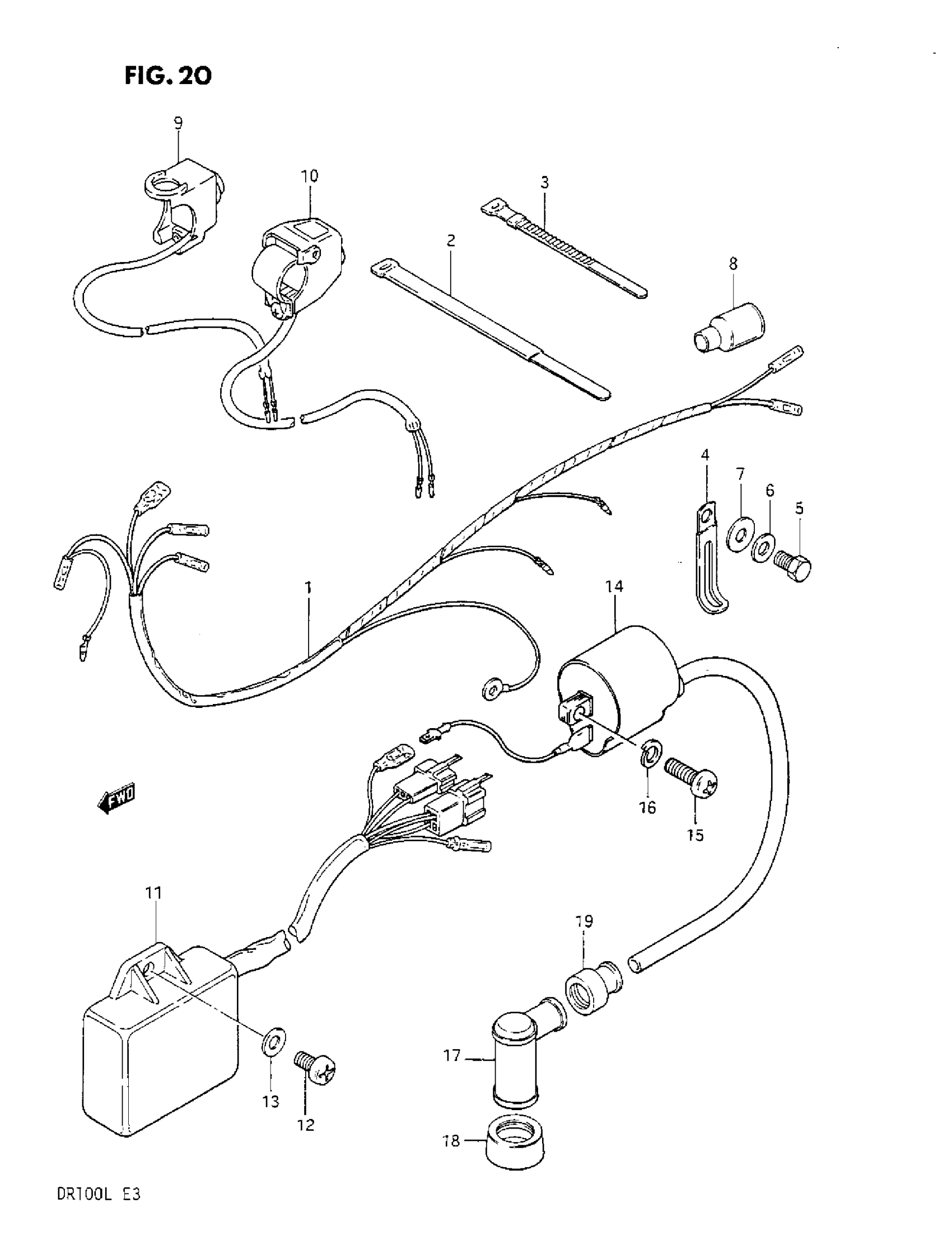

Suzuki DR100 (1987) ELECTRICAL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 36610-05280.

36610-29502

Unavailable

2

CLAMP This part replaces 09407-11301.

09407-18302

$2.28

2

CLAMP | MODEL F/G/H/J/K This part replaces 09407-18301.

09407-18302

$2.28

2

CLAMP | MODEL L This part replaces 09407-14301.

09407-18302

$2.28

3

CLAMP (L:120)

09407-12402

$3.04

4

CLAMP This part replaces 09404-08404.

09404-08420

$3.16

4

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74

4

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

5

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

6

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

7

WASHER This part replaces 09160-06006.

09160-06084

$1.78

8

BOOT, TAIL LAMP

36618-34000

Unavailable

9

SWITCH ASSY, ENGINE STOP | MODEL F

37830-38200

Unavailable

10

SWITCH ASSY, ENGINE STOP | MODEL G/H/J/K/L

37830-13A00

Unavailable

11

C.D.I. UNIT ASSY

32900-05210

Unavailable

12

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

13

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

14

COIL ASSY, IGNITION This part replaces 33410-05211.

33410-01X50

$105.37

15

SCREW This part replaces 02112-06208.

02112-06207

$1.78

16

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

17

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

18

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

19

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34
