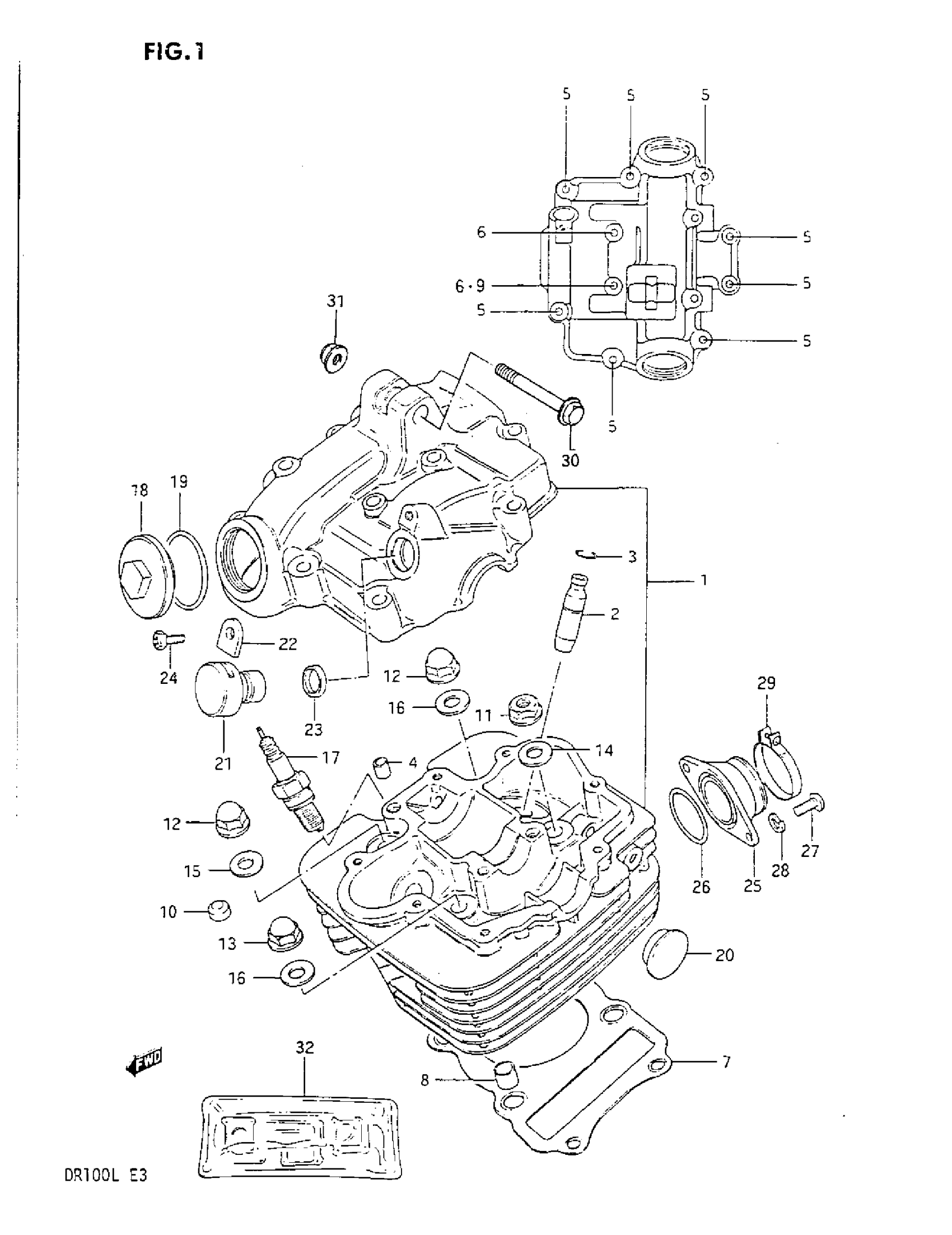

Suzuki DR100 (1987) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL F/G This part replaces 11100-05281.

11100-05290

Unavailable

1

HEAD ASSY, CYLINDER | MODEL H/J/K

11100-05290

Unavailable

1

HEAD ASSY, CYLINDER | MODEL L This part replaces 11100-05900.

11100-05290

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$32.10

3

.RING (10X85)

09381-10004

$1.50

4

PIN

09206-08001

$1.78

5

BOLT This part replaces 01517-06354.

01550-0635A

$2.32

6

BOLT This part replaces 01517-06605.

01550-0660A

$3.05

7

GASKET, CYLINDER HEAD This part replaces 11141-05210.

11141-05202

$12.15

8

PIN

04211-11169

$1.78

9

WASHER

09168-06023

$2.35

10

PAD, RUBBER

11151-45000

$3.84

11

NUT This part replaces 09159-08031.

09159-08034

$1.62

12

NUT This part replaces 09159-08035.

09159-08029

$5.81

13

NUT

09159-08029

$5.81

14

WASHER

09160-08039

$2.03

15

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

$2.03

16

GASKET This part replaces 09168-08012.

09168-08013

$2.92

17

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$3.32

17

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$5.18

17

SPARK PLUG (DR8EA) This part replaces 09482-00275.

09482-00399

$3.32

18

CAP, INSPECTION | MODEL F/G

11175-05260

Unavailable

18

CAP, INSPECTION | MODEL H/J/K

11175-42A00

$11.46

18

CAP, INSPECTION | MODEL L This part replaces 11175-05900.

11175-42A00

$11.46

19

.O RING (D:3,ID:29.5)

09280-30001

$1.72

20

PLUG, HEAD

09241-22002

$5.24

21

PLUG, TACHO. SLEEVE HOLE | MODEL F/G

26442-45000

$19.72

22

PLATE | MODEL F/G

26449-33000

$4.35

23

SEAL BAND | MODEL F/G

26451-45000

$5.05

24

SCREW | MODEL F/G

09128-05101

$1.49

25

PIPE, INTAKE This part replaces 13110-05210.

13110-05200

Unavailable

26

O-RING

09280-32006

$2.28

27

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

28

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

29

CLAMP This part replaces 09402-40305.

09402-40303

$7.12

30

BOLT,8X50 | MODEL F/G/J/K/L This part replaces 09103-08082.

09103-08395

$3.68

30

BOLT (8X50) | MODEL H

09103-08081

$3.72

31

NUT | MODEL F/G/J/K/L This part replaces 08319-31085.

08319-3108A

$2.32

31

NUT | MODEL H

08319-31087

$2.32

32

NO DESCRIPTION AVAILABLE | OPT This part replaces 11400-05871.

11400-05875

Unavailable
