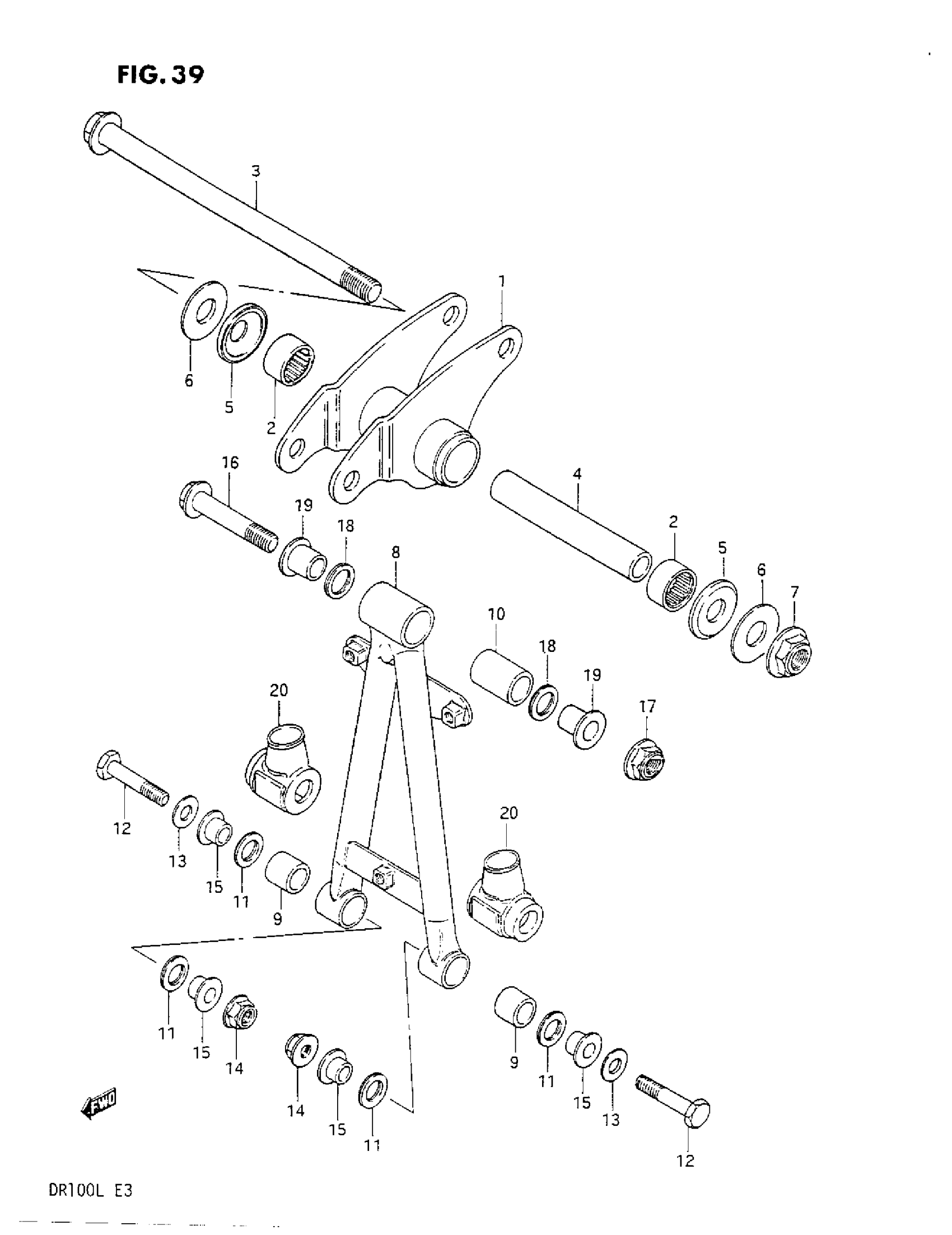

Suzuki DR100 (1987) CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, CUSHION

62600-05830

Unavailable

2

BEARING

09263-17018

Unavailable

3

SHAFT

62621-05200

Unavailable

4

SPACER

62623-05200

Unavailable

5

DUST SEAL

62624-48700

Unavailable

6

THRUST WASHER

08211-12303

Unavailable

7

NUT This part replaces 08319-31128.

08319-3112A

$3.76

8

NO DESCRIPTION AVAILABLE This part replaces 62600-05820.

62600-05821

Unavailable

9

BUSH, LOWER This part replaces 62642-20400.

62642-20900

Unavailable

10

BUSH, FRONT (15X20X31) This part replaces 62682-38200.

62682-04701

$16.87

11

DUST SEAL, LOWER

62647-20400

Unavailable

12

BOLT, LOWER

62313-08300

Unavailable

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

NUT

08319-31087

$2.32

15

SPACER, LOWER

62316-14100

Unavailable

16

BOLT, UPPER

09103-10058

Unavailable

17

NUT, UPPER

08319-31107

$2.73

18

DUST SEAL, UPPER

62683-20400

$3.37

19

SPACER, UPPER

62316-38200

Unavailable

20

BOOTS, LOWER

62689-05200

Unavailable
