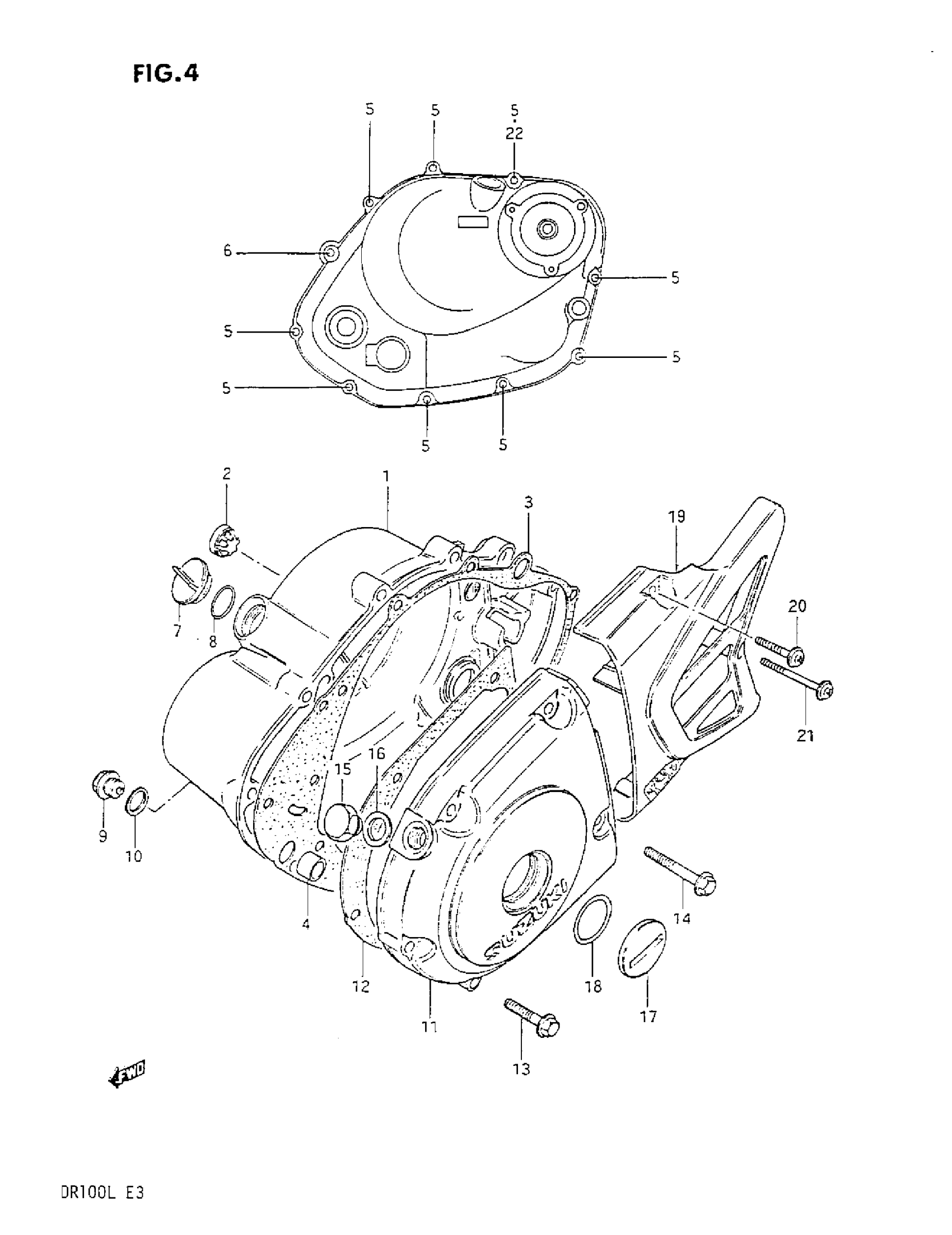

Suzuki DR100 (1987) CRANKCASE COVER Diagram

#

Description
Price

1

COVER COMP, CLU | MODEL F/G This part replaces 11340-05250.

11340-05280

Unavailable

1

COVER, CLUTCH | MODEL H/J/K

11340-05260

Unavailable

1

COVER COMP, CLU | MODEL L This part replaces 11340-05270.

11340-05280

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

.GASKET, CLUTCH COVER This part replaces 11482-05201.

11482-05211

$12.83

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

BOLT This part replaces 01547-06304.

01547-06307

$2.03

6

BOLT This part replaces 01547-06454.

01547-0645B

$2.73

7

.PLUG | MODEL F/H/J/K This part replaces 09259-20008.

09259-20008-XC0

$7.50

7

PLUG (20X10) | MODEL G This part replaces 09259-20013.

09259-20019

$11.52

7

PLUG (20X10) | MODEL L This part replaces 09259-20016.

09259-20019

$11.52

8

O-RING

09280-17003

$1.65

9

PLUG, OIL CHECK

09247-14015

$4.45

10

GASKET

09168-14004

$1.83

11

COVER, MAGNETO | MODEL F/G

11351-05250

Unavailable

11

COVER, MAGNETO | MODEL H/J/K

11351-05260

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 11351-05270.

11351-05201

Unavailable

12

.GASKET, MAGNETO COVER This part replaces 11483-05200.

11483-05210

$7.57

13

BOLT This part replaces 01547-06304.

01547-06307

$2.03

14

BOLT This part replaces 01547-06404.

01547-0640B

$2.75

15

PLUG, T.D.C

09247-12103

$2.84

16

GASKET

09168-12002

$1.59

17

PLUG | MODEL F/G

09259-26005

Unavailable

17

PLUG | MODEL H/J/K This part replaces 09259-26002.

09259-26002-XC0

$13.38

17

PLUG | MODEL L

09259-26008

Unavailable

18

O-RING

09280-22008

$2.27

19

NO DESCRIPTION AVAILABLE | MODEL F/G This part replaces 11361-05250.

11361-05201

Unavailable

19

COVER, ENGINE SPROCKET | MODEL H/J/K

11361-05260

Unavailable

19

COVER, ENGINE SPROCKET | MODEL L This part replaces 11361-05270.

11361-05260

Unavailable

20

SCREW, PIVOT This part replaces 02152-05255.

02112-0525A

$1.49

21

.SCREW This part replaces 02152-05455.

02112-0545B

$2.26

22

GASKET

09168-06023

$2.35
