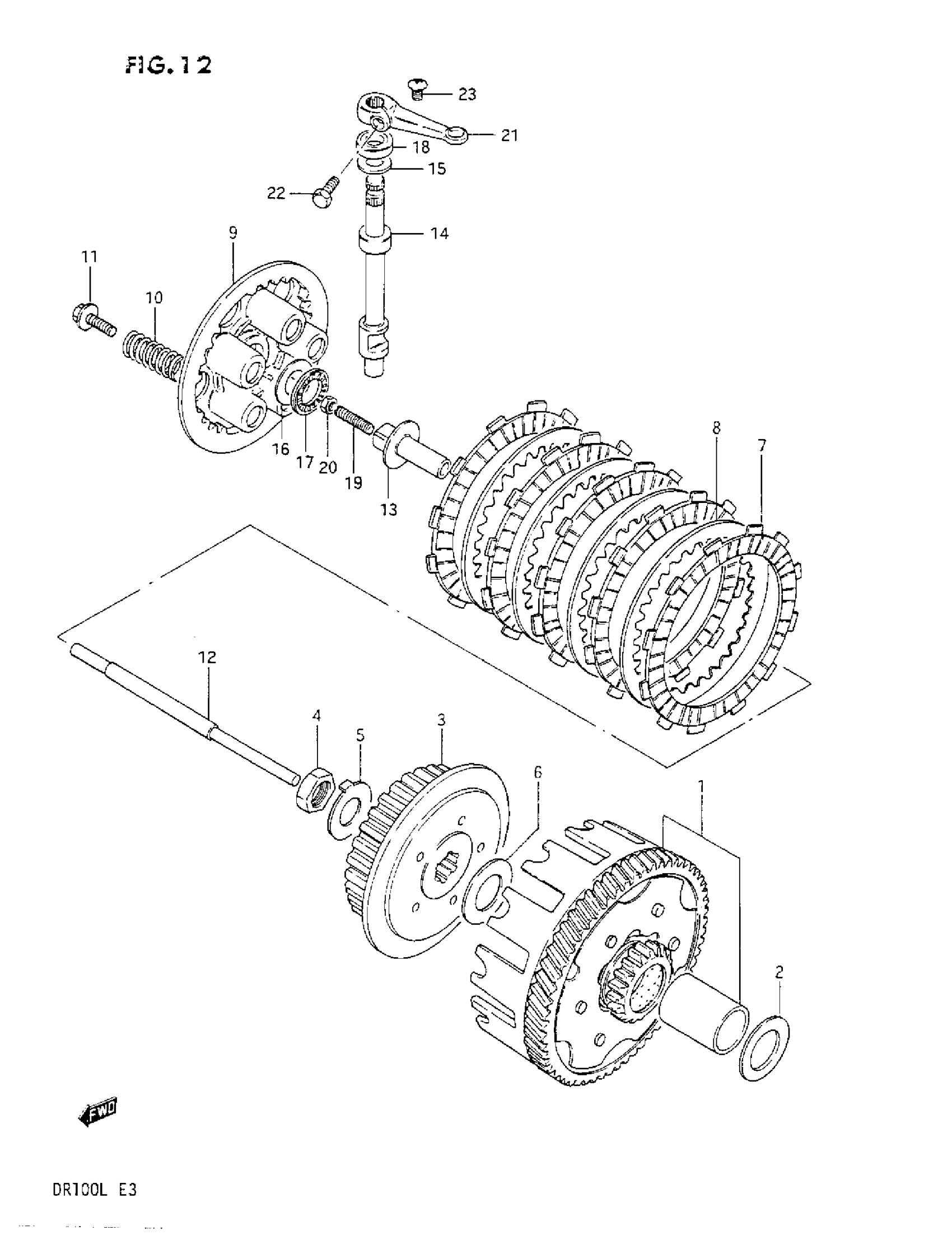

Suzuki DR100 (1987) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:20/60

21200-05863

Unavailable

2

WASHER

08211-20353

Unavailable

3

HUB, CLUTCH SLEEVE (NT:30) This part replaces 21411-05200.

21411-05230

$77.92

4

NUT This part replaces 09140-16014.

09140-16005

$3.75

5

LOCK WASHER

09169-16003

$2.45

6

WASHER

08211-20352

Unavailable

7

PLATE, CLUTCH DRIVE This part replaces 21441-13A00.

21441-13A01

$14.73

8

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$7.58

9

DISC, CL PRESSURE This part replaces 21462-14102.

21462-14130

$24.87

10

SPRING

09440-15014

$3.37

11

BOLT (5X16) This part replaces 09116-05003.

09116-05020

$2.03

12

ROD, CLUTCH PUSH This part replaces 23110-05202.

23110-05203

$18.02

13

PIECE, CLUTCH PUSH This part replaces 23121-38200.

23121-38201

$26.73

14

CAMSHAFT, CLUTCH RELEASE

23122-05200

$50.10

15

WASHER, CLUTCH RELEASE This part replaces 08211-10201.

09181-10195

$1.99

16

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

17

THRUST BEARING (15X28X2)

09263-15003

$8.29

18

SEAL, CLUTCH RELEASE ARM This part replaces 09282-10007.

09282-10012

$7.98

19

SCREW

09134-06010

$3.12

20

.NUT This part replaces 08310-22067.

08310-00067

$2.13

21

ARM, CLUTCH RELEASE This part replaces 23271-46000.

23271-46010

$28.97

22

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

23

SCREW

02142-06108

$2.45
