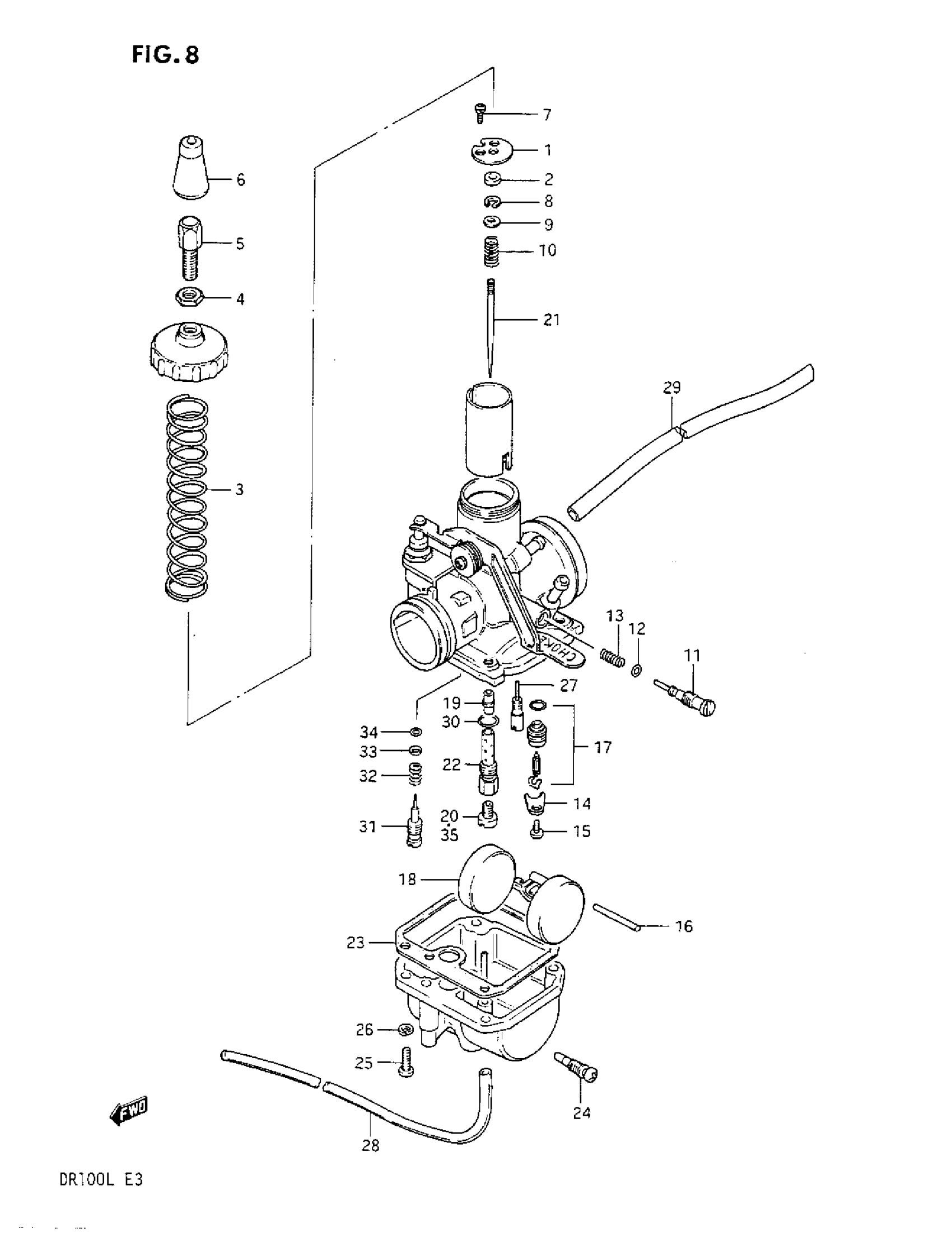

Suzuki DR100 (1987) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-05220

Unavailable

1

PLATE

13373-05230

$7.37

2

RING

13387-47010

$7.22

3

SPRING

13573-05230

Unavailable

4

NUT

13661-16600

$4.64

5

ADJUSTER, CABLE

13577-48110

$8.30

6

CAP

13681-16600

$3.77

7

SCREW

13601-05230

$3.37

8

E RING

13394-10010

$5.45

9

PACKING

13382-47010

$3.56

10

SPRING

13388-47010

$6.91

11

ADJUSTER

13267-36600

$12.17

12

O-RING

13295-33010

$4.48

13

SPRING

13268-35010

$4.48

14

PLATE

13373-46710

$6.17

15

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

16

.PIN, FLOAT

13254-01010

$3.62

17

VALVE ASSY, NEEDLE This part replaces 13370-43250.

13370-05320

$62.80

18

FLOAT

13250-05230

$26.91

19

JET, NEEDLE (N-8)

09494-00409

Unavailable

20

JET, MAIN (87.5)

09491-87005

$11.38

21

NEEDLE, JET (5L8-3)

13383-05220

Unavailable

22

PIPE

13385-47030

Unavailable

23

GASKET

13251-05230

Unavailable

24

SCREW, DRAIN

13247-02340

$4.99

25

SCREW This part replaces 02112-04166.

02112-0416A

$1.49

26

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

27

JET, PILOT (22.5)

09492-22008

$14.85

28

.HOSE (3X7X600) | L:500->400 This part replaces 13684-18900.

09355-30001-600

$8.56

29

HOSE,5X10X600 | L:550->250 This part replaces 13684-22A00.

44421-13ER0

$10.06

30

.O RING This part replaces 13246-43010.

13246-43011

$4.34

31

SCREW, PILOT (2 5/16)

13279-45400

$14.85

32

.SPRING (NT:45)

13268-47070

$4.34

33

WASHER

13291-29900

$1.98

34

O-RING This part replaces 13295-29900.

13295-29901

$4.34

35

JET, MAIN (82.5) | OPT

09491-82003

Unavailable

35

JET, MAIN (85) | OPT

09491-85008

$12.13

35

JET, MAIN (90) | OPT

09491-90007

$11.83

35

JET, MAIN (92.5) | OPT

09491-92004

$9.69

35

JET, MAIN (95) | OPT

09491-95005

$11.55
