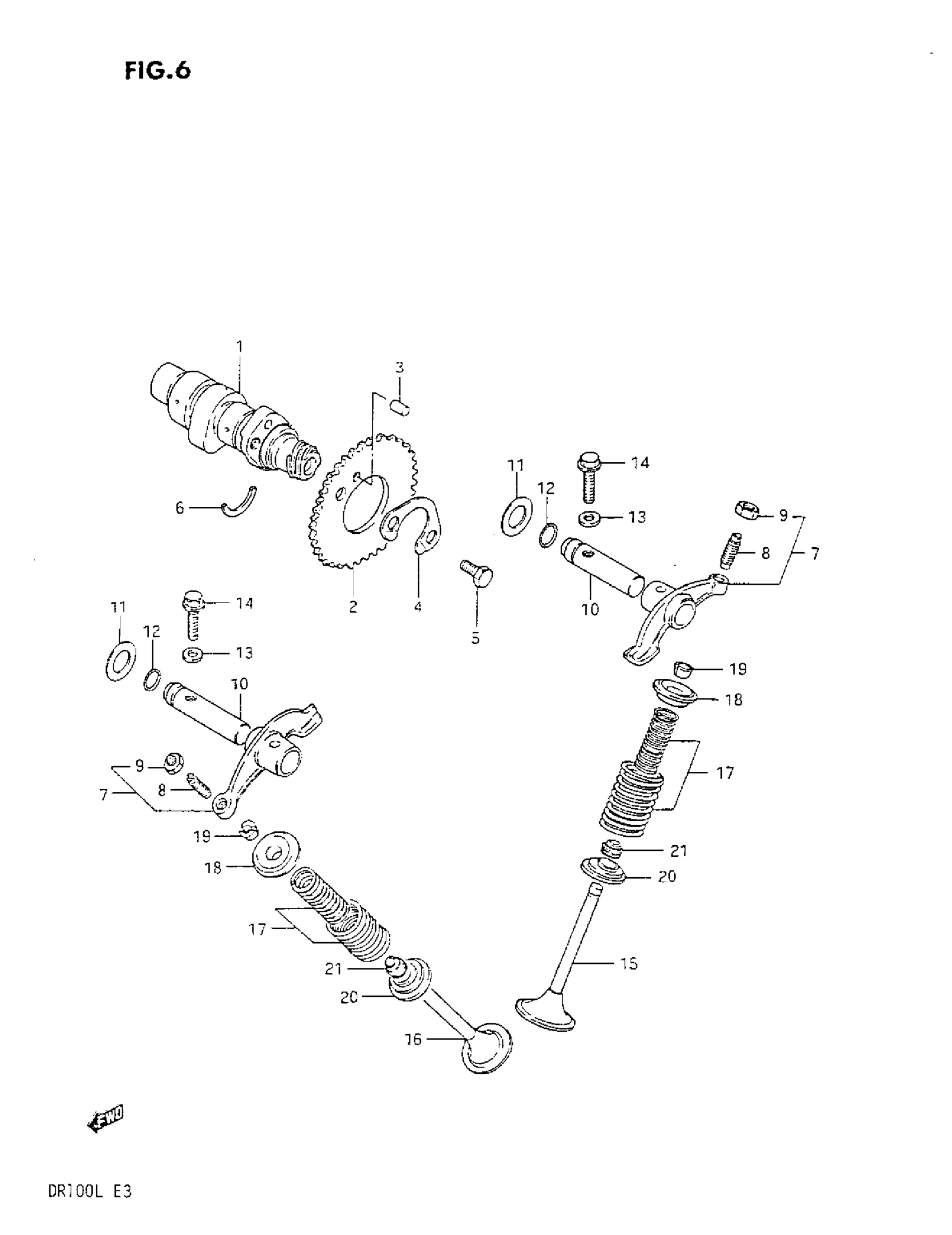

Suzuki DR100 (1987) CAM SHAFT-VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-05211

Unavailable

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

$22.98

3

PIN

09261-05005

$1.49

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.51

5

BOLT

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM ASSY, VALVE ROCKER This part replaces 12840-05200.

12850-25C00

$43.16

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

SHAFT, VALVE ROCKER ARM

12861-05201

$19.72

11

WASHER

09164-12021

$2.03

12

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

13

GASKET

09168-06023

$2.35

14

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

15

VALVE, INTAKE

12911-05230

Unavailable

16

VALVE, EXHAUST

12912-05230

Unavailable

17

SPRING SET, VAL This part replaces 12920-05230.

12920-11C00

Unavailable

18

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

19

COTTER, VALVE

12932-24400

$1.94

20

SEAT, VALVE SPRING This part replaces 12933-49200.

12933-49201

$5.84

21

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70
