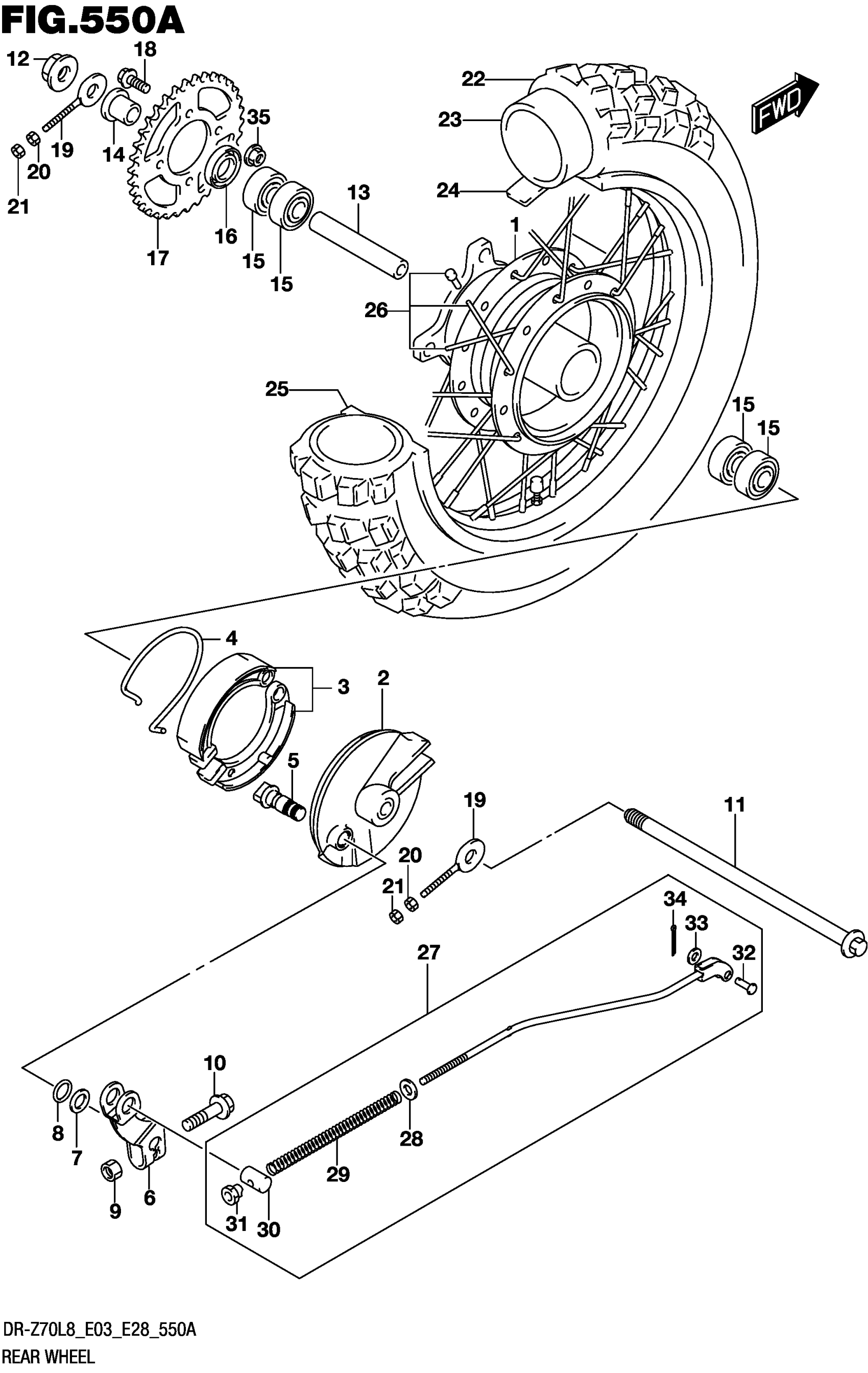

Suzuki DR-Z70L8 (2018) REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR WHEEL

64110-14H00

Unavailable

2

PANEL,FRONT BRAKE ANCHOR

54210-14H00

Unavailable

3

SHOE SET,BRAKE

54400-14870

$32.08

4

SPRING,BRAKE SHOE

54424-14H00

$12.72

5

CAM,BRAKE

54440-14H00

$31.28

6

LEVER,BRAKE CAM

54451-14H00

$25.03

7

WASHER (10.5X18X1)

09160-10121

$2.03

8

O RING (D:2.4,ID:9.6) This part replaces 09280-10006.

09280-10013

$3.70

9

NUT

08310-0005A

$1.84

10

BOLT

01550-0525A

$2.06

11

AXLE,REAR

64711-14H00

$55.63

12

NUT

08319-3112A

$3.76

13

SPACER (12.5X19X105.5)

64731-14H00

$21.83

14

SPACER,REAR AXLE,L

64751-14H00

$23.03

15

BEARING

08133-62017

$18.47

16

SEAL,OIL,32X20X5 (32X20X5)

09282-20008

$11.30

17

SPROCKET

64511-14H00

$53.18

18

BOLT (8X28)

09103-08359

$3.76

19

ADJUSTER,CHAIN

61411-14H00

$14.40

20

NUT

09140-06030

$2.97

21

NUT

08310-0006A

$1.84

22

TIRE (2.50-10 33J) | IX07S

55100-14H00

$103.03

22

TIRE (2.50-10 33J) | IRC

55100-14H00

$103.03

23

TUBE ASSY,WHEEL INNER This part replaces 55200-14H00.

55200-14H01

$35.93

24

PROTECTOR,WHEEL INNER TUBE

55261-14H10

$4.22

25

RIM,WHEEL (10X1.40)

55311-14H00

$297.20

26

SPOKE SET,WHEEL

55320-14H00

$111.87

27

ROD ASSY,REAR BRAKE

43300-14H00

$33.43

28

WASHER

08322-0106A

$1.84

29

.SPRING

09440-09004

$2.20

30

.PIN (11X18)

09209-11002

$2.19

31

.NUT

09150-06010

$3.10

32

.PIN (10X16)

09200-06013

$2.00

33

WASHER

08322-0106A

$1.84

34

PIN

04111-2020A

$1.49

35

NUT

08319-3108A

$2.32
