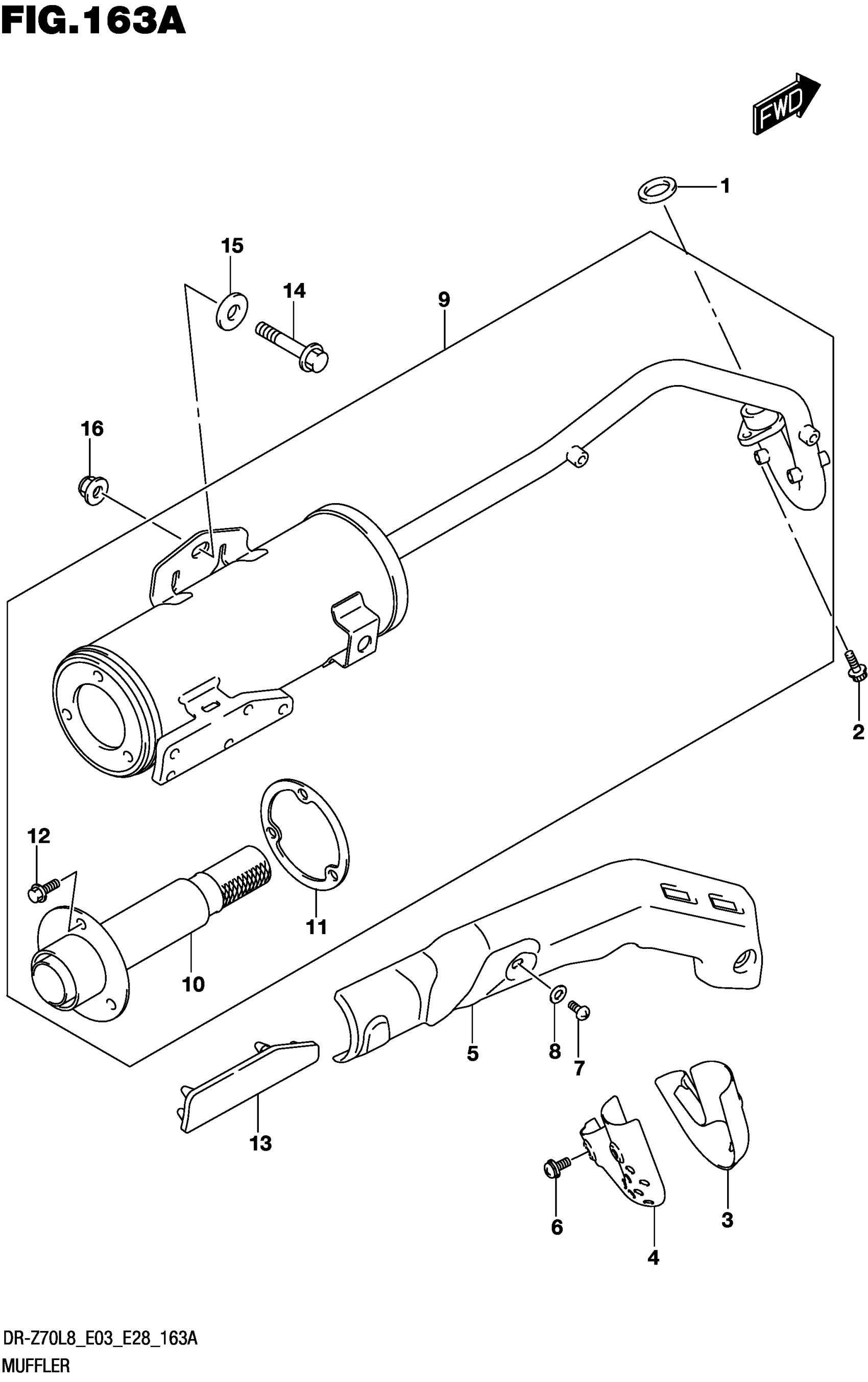

Suzuki DR-Z70L8 (2018) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST PIPE

14181-09D00

$7.95

2

BOLT

07120-0620A

$2.72

3

COVER,EXH PIPE

14186-14H00

Unavailable

4

COVER,EXH PIPE INNER

14187-14H00

Unavailable

5

COVER,EXH PIPE NO.2

14188-14H00

$91.95

6

SCREW

02112-7508A

$2.30

7

BOLT (5X10)

09106-05030

$3.03

8

WASHER

08322-0105A

$1.84

9

BODY

14310-14H00

Unavailable

10

.ARRESTER

14850-14H00

$63.47

11

.GASKET, ARRESTER

14773-08G00

$6.05

12

BOLT (6X12)

09103-06273

$2.26

13

PROTECTOR,HEAT GUARD

14782-14H00

$10.07

14

BOLT,8X40 (8X40)

09103-08388

Unavailable

15

WASHER (8.5X22X2.0)

09160-08127

$2.12

16

NUT

08319-3108A

$2.32
