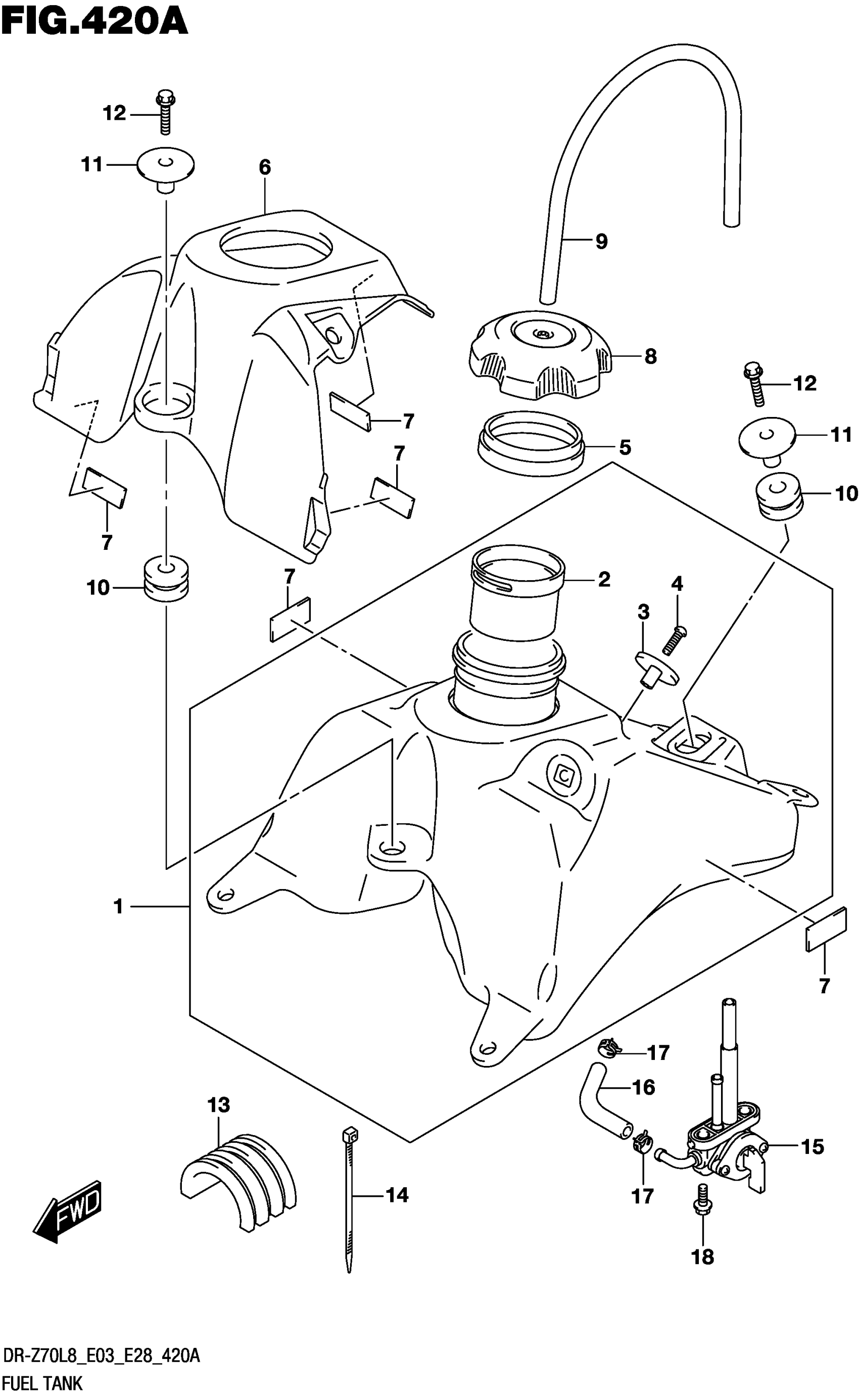

Suzuki DR-Z70L8 (2018) FUEL TANK Diagram

TANK ASSY,FUEL

44100-14H00

Unavailable

TUBE, FILLER INLET

44199-19A00

$6.28

HOOK, SEAT FR

44132-27C01

$17.17

BOLT (6X20)

09139-06148

$4.17

RUBBER, FUEL TANK INLET This part replaces 44261-14H00.

44261-14H01

$10.25

COVER,FUEL TANK UPPER

44291-14H00

Unavailable

.CUSHION (20X40X3)

44294-14H00

$3.33

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

HOSE (5X8.2X360) This part replaces 09352-50823-360.

09352-50005-360

$6.38

CUSHION

44511-10G10

Unavailable

WASHER,FUEL TANK

44512-10G00

Unavailable

BOLT

01547-0625A

$2.01

CUSHION, FUEL TANK

44541-13E10

$26.73

CLAMP (L:300)

09407-30402

$4.11

COCK ASSY,FUEL

44300-14H00

$61.64

HOSE

44421-14H01

$12.45

CLIP (ID:9.4,H:8)

09401-09403

$2.03

BOLT

01547-0616A

$2.03
