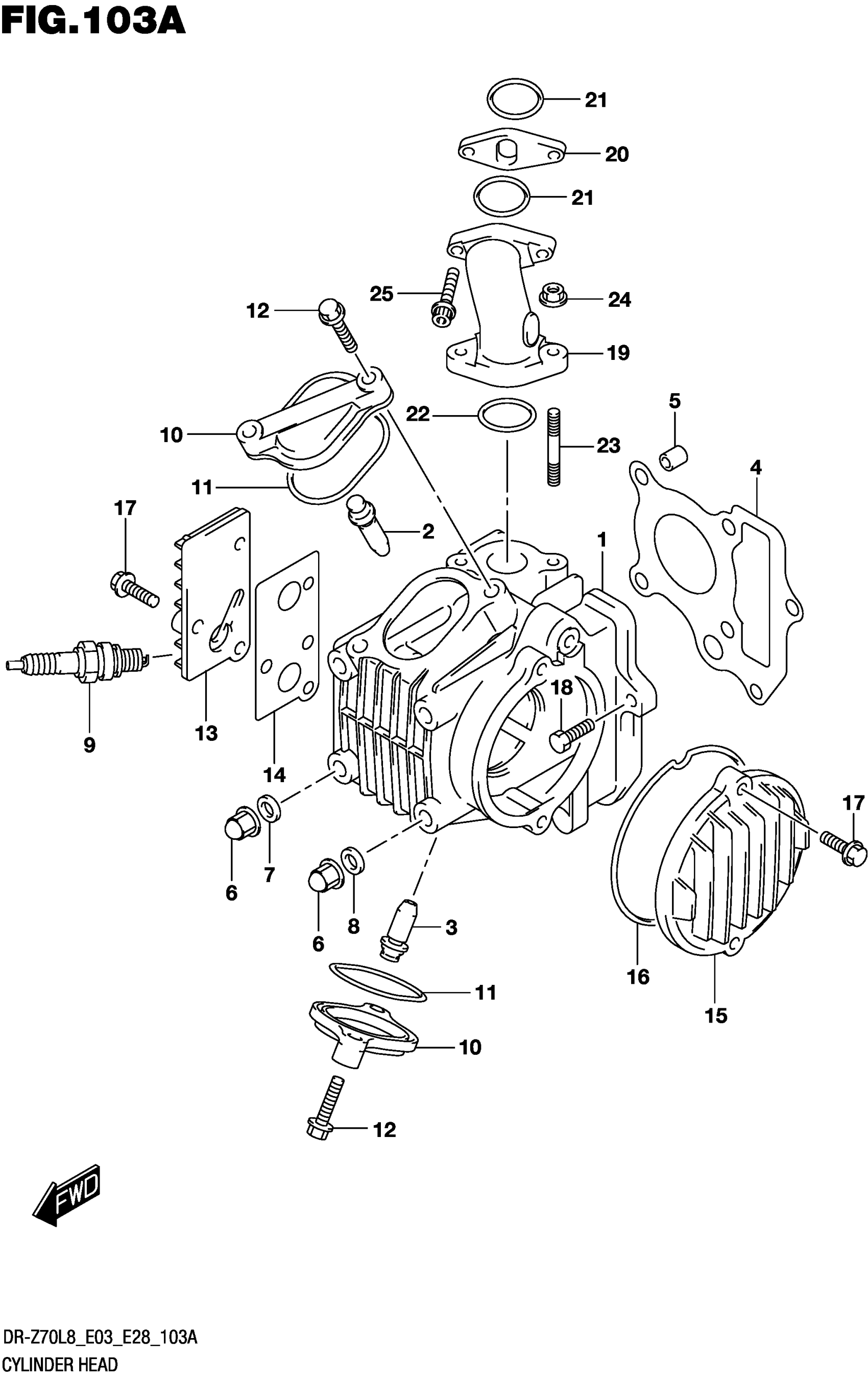

Suzuki DR-Z70L8 (2018) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD

11110-02A00

Unavailable

2

GUIDE | OPT

11115-02A70

Unavailable

3

GUIDE,VALVE (OS:0.3) | OPT

11115-09470

Unavailable

4

.GASKET

11141-02A00

$12.72

5

.PIN (8X11)

09206-08001

$1.78

6

NUT (M6)

09159-06100

$2.81

7

GASKET,6.5X13X2.3 (6.5X13X2.3

09168-06017

$1.92

8

WASHER (6.5X14X2.3)

09160-06127

$2.30

9-1

SPARK PLUG,CR7HSA (CR7HSA) | NGK

09482-00408

$9.83

9-2

SPARK PLUG,U22FSR-U (U22FSR-U | DENSO

09482-00314

Unavailable

10

CAP,INSPECTION

11175-09400

Unavailable

11

O-RING (D:2.4,ID:33.6X48.6)

09280-50007

$4.68

12

BOLT

01547-0625A

$2.01

13

COVER,CYLINDER HEAD,R

11134-09400

Unavailable

14

.GASKET,CYL HEAD COVER R

11135-09420

$3.87

15

COVER,CYLINDER HEAD L

11121-09405

Unavailable

16

O RING (D:2.4,ID:73.5)

09280-70008

$8.10

17

BOLT

01547-0620A

$2.03

18

BOLT

01500-0620A

$1.78

19

PIPE

13111-14H00

$80.10

20

INSULATOR,CARBURETOR

13129-36G00

$8.89

21

O-RING (D:1.9,ID:21.8)

09280-21010

$2.27

22

O-RING (D:2.4,ID:23.7)

09280-24010

$5.64

23

BOLT,STUD

01421-0620A

$1.91

24

NUT (6X12)

08316-1006A

$2.19

25

BOLT (6X25)

07130-0625A

$2.62
