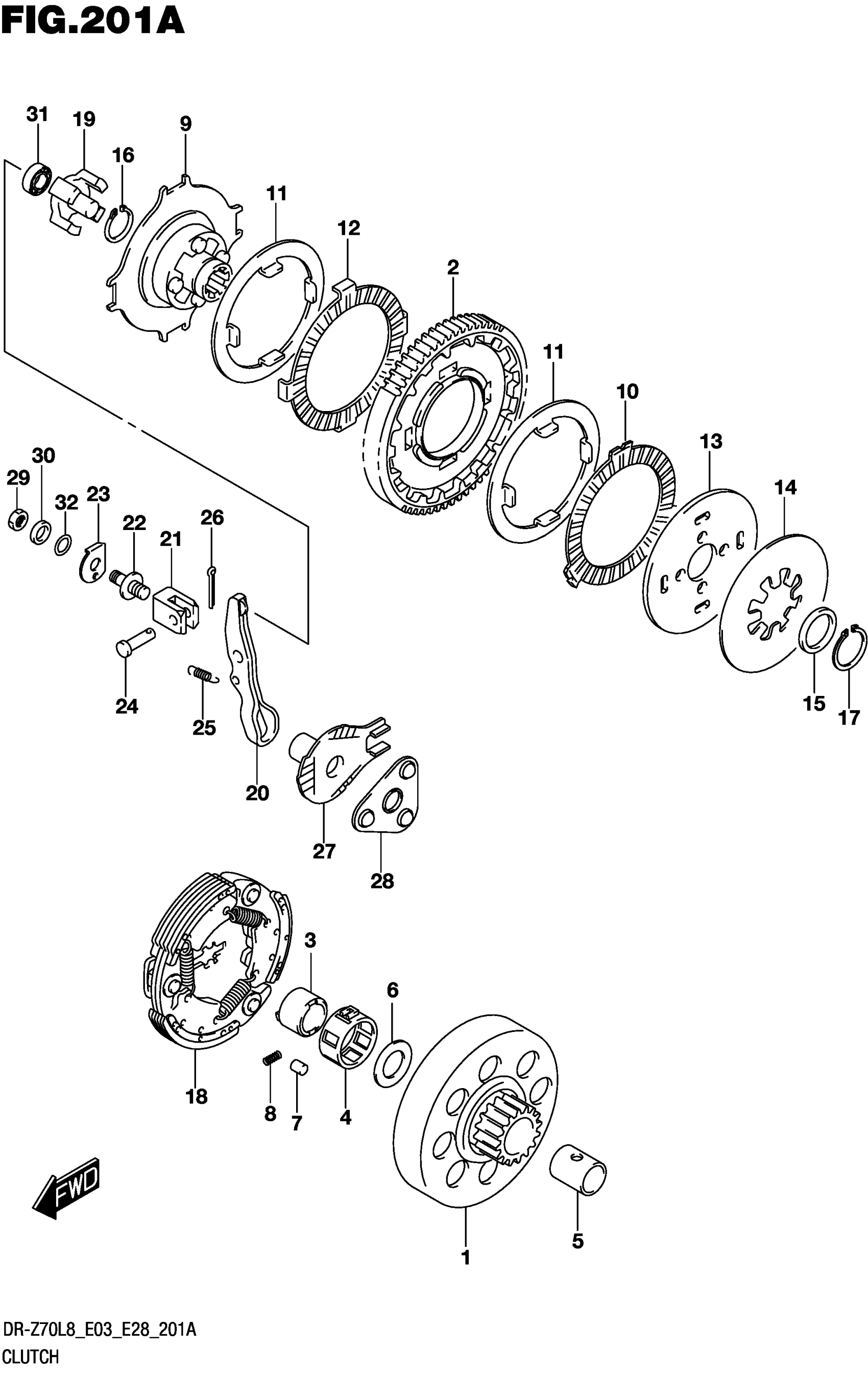

Suzuki DR-Z70L8 (2018) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY

21110-02A03

Unavailable

1

GEAR ASSY

21110-02A03

Unavailable

2

GEAR,PRIMARY DRIVEN (NT:65)

21210-36G00

Unavailable

3

RACE

21631-02A04

Unavailable

4

RETAINER

21652-30D01

Unavailable

5

SPACER,16X21X23.5 (16X21X23.5

09180-16031

Unavailable

6

SHIM (16X28X0.5)

09181-16214

$2.76

7

ROLLER (7X10)

09261-07006

Unavailable

8

SPRING

09440-02003

$1.92

9

HUB,SLEEVE

21410-09403

Unavailable

10

PLATE,CLUTCH DRIVE (T:2.6)

21441-09D02

$18.39

11

PLATE,CLUTCH DRIVEN (T:2.1)

21451-14H00

$21.35

12

PLATE,CLUTCH DRIVEN,NO.2

21452-35401

$20.75

12

PLATE,CLUTCH DRIVEN,NO.2

21452-35401

$20.75

13

PLATE,CLUTCH PRESSURE (T:2.4)

21461-30A00

Unavailable

14

WASHER

09164-22013

Unavailable

15

SPACER,22X28X4 (22X28X4)

09180-22033

Unavailable

16

CIRCLIP

08331-31179

$1.90

17

CIRCLIP

08331-31219

$2.43

18

CLUTCH ASSY

21501-02A02

Unavailable

19

PIECE,CLUTCH PUSH

23121-30A01

Unavailable

20

ARM

23221-09405

Unavailable

21

BOSS,CLUTCH RELEASE ARM

23222-09401

Unavailable

22

BOLT,CLUTCH RELEASE ADJUST

23223-09404

$7.95

23

WASHER (6.5X22X1.2)

09169-06046

$1.49

24

PIN

09200-07005

Unavailable

25

SPRING

09443-06053

$1.49

26

PIN

04111-1615A

Unavailable

27

GUIDE,RELEASE BALL OUTER

23230-30A01

Unavailable

28

BALL,CLUTCH RELEASE

23250-35402

Unavailable

29

NUT (6X3.6)

09140-06023

$2.06

30

WASHER,6.5X13X3.2 (6.5X13X3.2

09160-06123

$1.62

31

BEARING (16X6)

09266-16002

$26.28

32

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49
