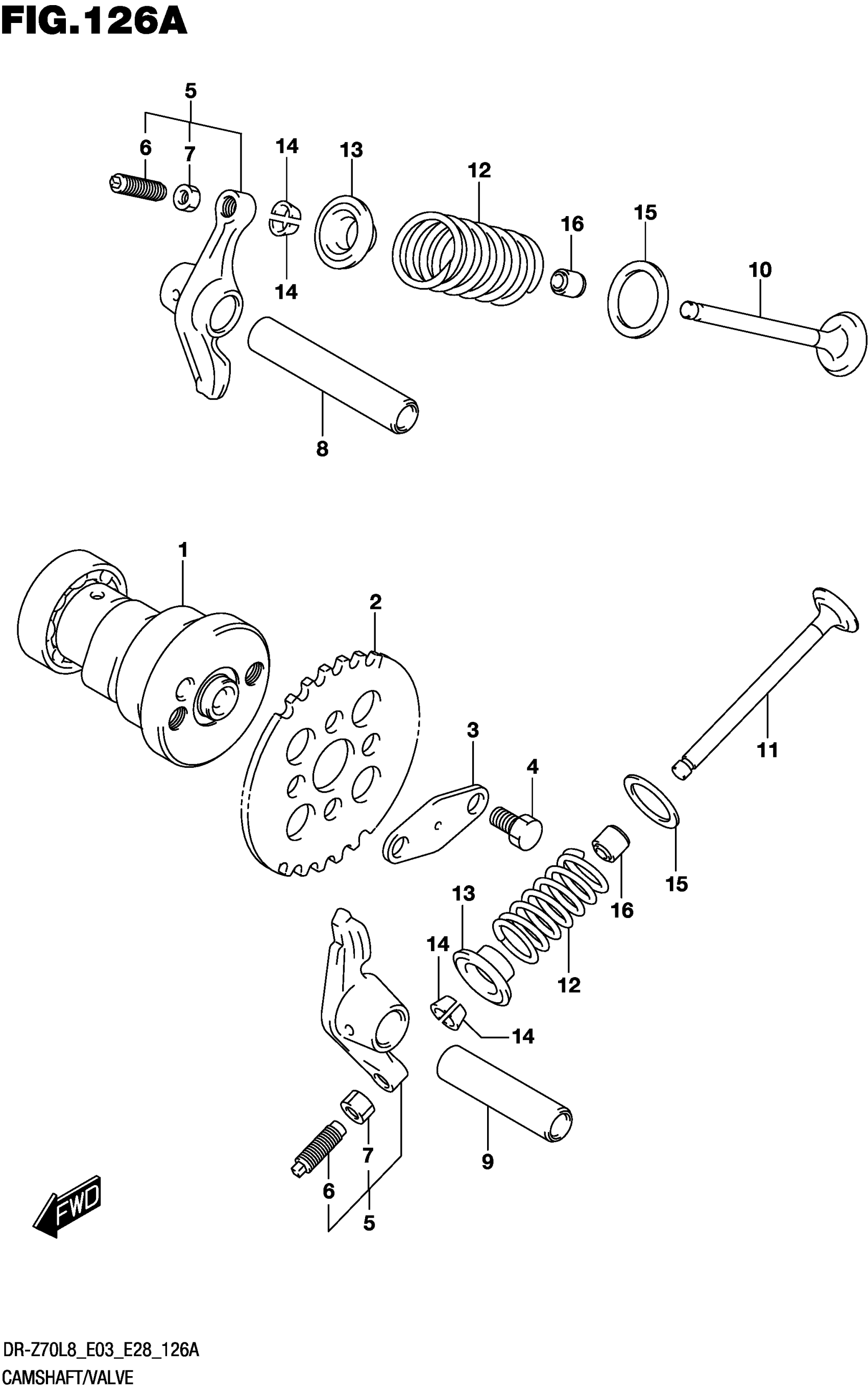

Suzuki DR-Z70L8 (2018) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT ASSY

12710-02A10

Unavailable

2

SPROCKET,CAM SHAFT (NT:28)

12741-09405

Unavailable

3

WASHER,SPROCKET

12714-09401

Unavailable

4

BOLT (6X10.5)

09111-06032

$2.12

5

ARM,VALVE ROCKER

12840-30A11

Unavailable

6

.SCREW,TAPPET ADJUSTING

12842-49201

$7.48

7

.NUT,TAPPET ADJUSTING

12843-27A00

$2.80

8

SHAFT,VALVE ROCKER ARM INTAKE

12861-09401

Unavailable

9

SHAFT,VALVE ROCKER ARM EXHAUS

12871-09401

Unavailable

10

VALVE

12911-09D00

$76.20

11

VALVE

12912-02A00

$78.82

12

SPRING SET,VALVE

12921-36G00

$7.05

13

RETAINER,VALVE SPRING

12931-09420

Unavailable

14

COTTER,VALVE

12932-27A00

$2.20

15

SEAT,VALVE SPRING OUTER

12934-09400

Unavailable

16

SEAL,OIL (5X10.5X8.4)

09289-05008

$6.85
