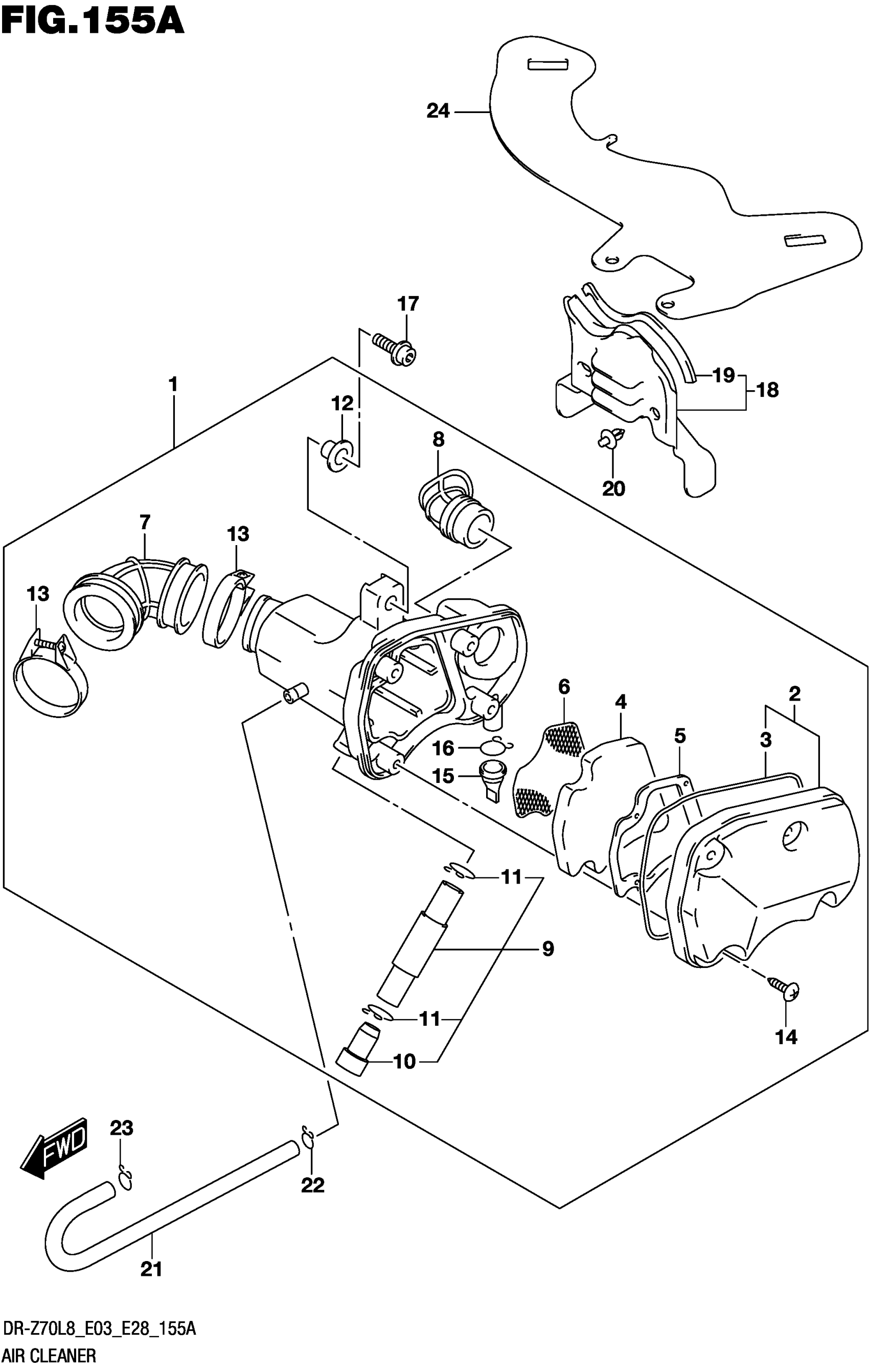

Suzuki DR-Z70L8 (2018) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR This part replaces 13700-14H00.

13700-14H01

$153.43

2

.CAP

13740-14H00

$21.35

3

..GASKET

13746-14H00

$6.93

4

.FILTER

13780-14H00

$14.93

5

.HOLDER

13791-14H00

Unavailable

6

.TRAP,FLAME

13811-14H00

$10.58

7

.TUBE,OUTLET

13881-14H00

$18.62

8

.TUBE,INLET

13890-14H00

Unavailable

9

.TUBE,DRAIN This part replaces 13870-14H00.

13870-14H01

$15.88

10

..PLUG

13877-00190

$5.32

11

.CLIP

09401-14301

$2.35

12

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

13

.CLAMP

09402-36208

$6.88

14

.SCREW

02142-0514B

$1.49

15

.TUBE,DRAIN

13878-39C10

Unavailable

16

CLIP This part replaces 09401-10410.

09401-10401

$1.49

17

BOLT

07120-0620A

$2.72

18

COVER,CLEANER INLET

13840-14H00

Unavailable

19

.CUSHION,ENG SPROCKET COVER

13841-14H00

Unavailable

20

CLIP (5.9X20.5,BLACK)

09409-06322-5PK

$3.10

21

HOSE,BREATHER This part replaces 13851-14H00.

13851-14H01

$11.35

22

CLIP

09401-09101

Unavailable

23

CLIP This part replaces 09401-10410.

09401-10401

$1.49

24

SHEET,AIR CLEANER INLET

13842-14H00

Unavailable
