2017 Suzuki DR-Z70L7 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2017 Suzuki DR-Z70L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

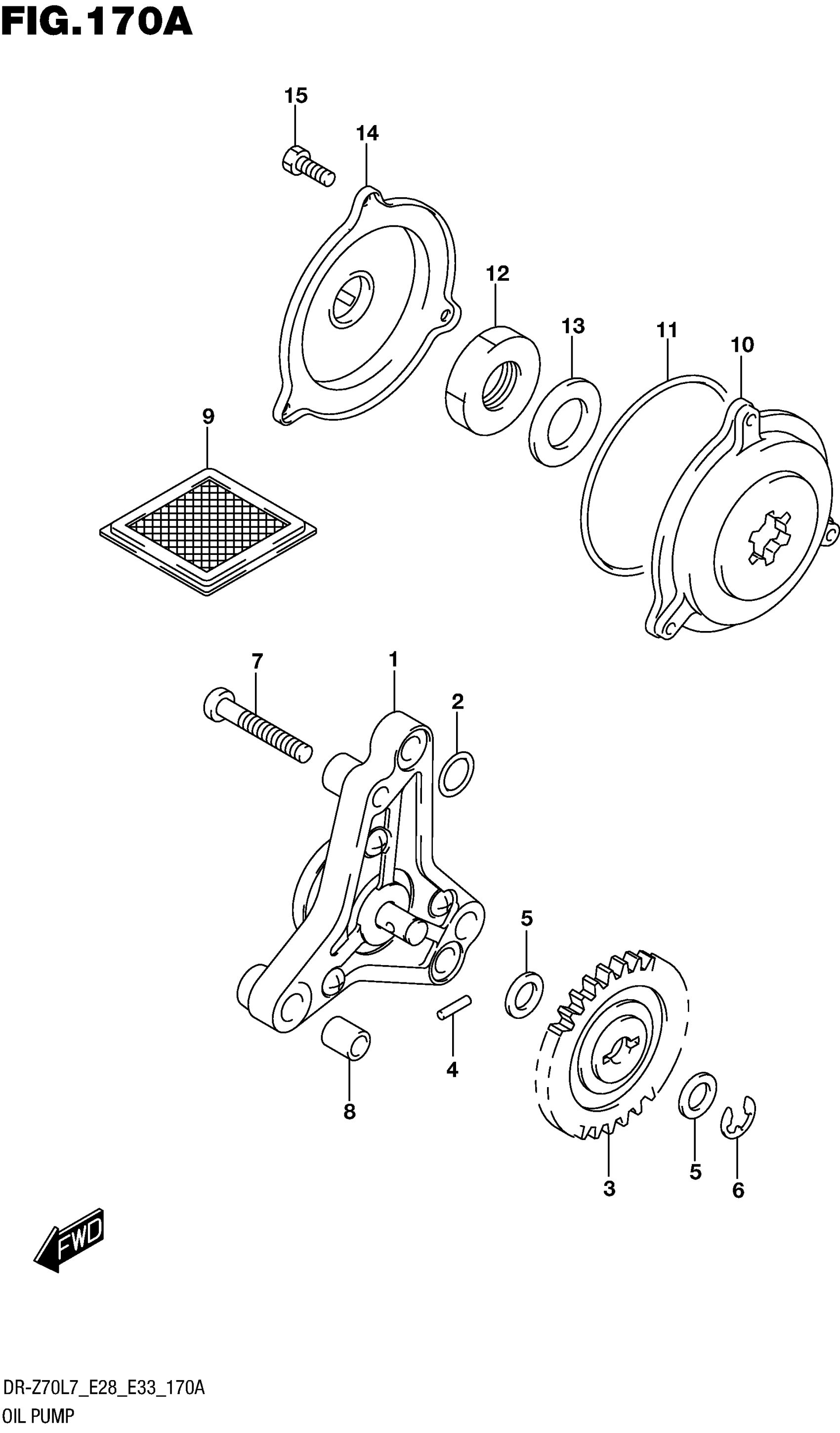

2017 Suzuki DR-Z70L7 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, ENGINE OIL

16400-09403

1
Out of stock

2

O RING (D:1.9,ID:9.8)

09280-10016

2
Out of stock

3

GEAR, OIL PUMP DRIVEN (NT:31)

16331-09440

1
Out of stock

4

PIN (2.5X19.8)

09261-02001

1
Out of stock

5

SHIM (8.8X14X1)

09181-08139

2
Out of stock

6

E RING

08332-1106A

1
Out of stock

7

SCREW

02112-0635A

—
Out of stock

8

PIN

04211-09129

2
Out of stock

9

STRAINER,ENGINE OIL This part replaces 16520-09402.

16520-09403

1
Out of stock

10

CASE, ENGINE OIL FILTER

16530-09411

1
Out of stock

11

1

$3.08

In stock

12

NUT

09140-16025

1
Out of stock

13

WASHER

09164-16004

1
Out of stock

14

COVER, OIL FILTER

16540-09D00

1
Out of stock

15

BOLT (5X10)

09100-05019

3
Out of stock
