2017 Suzuki DR-Z70L7 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2017 Suzuki DR-Z70L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

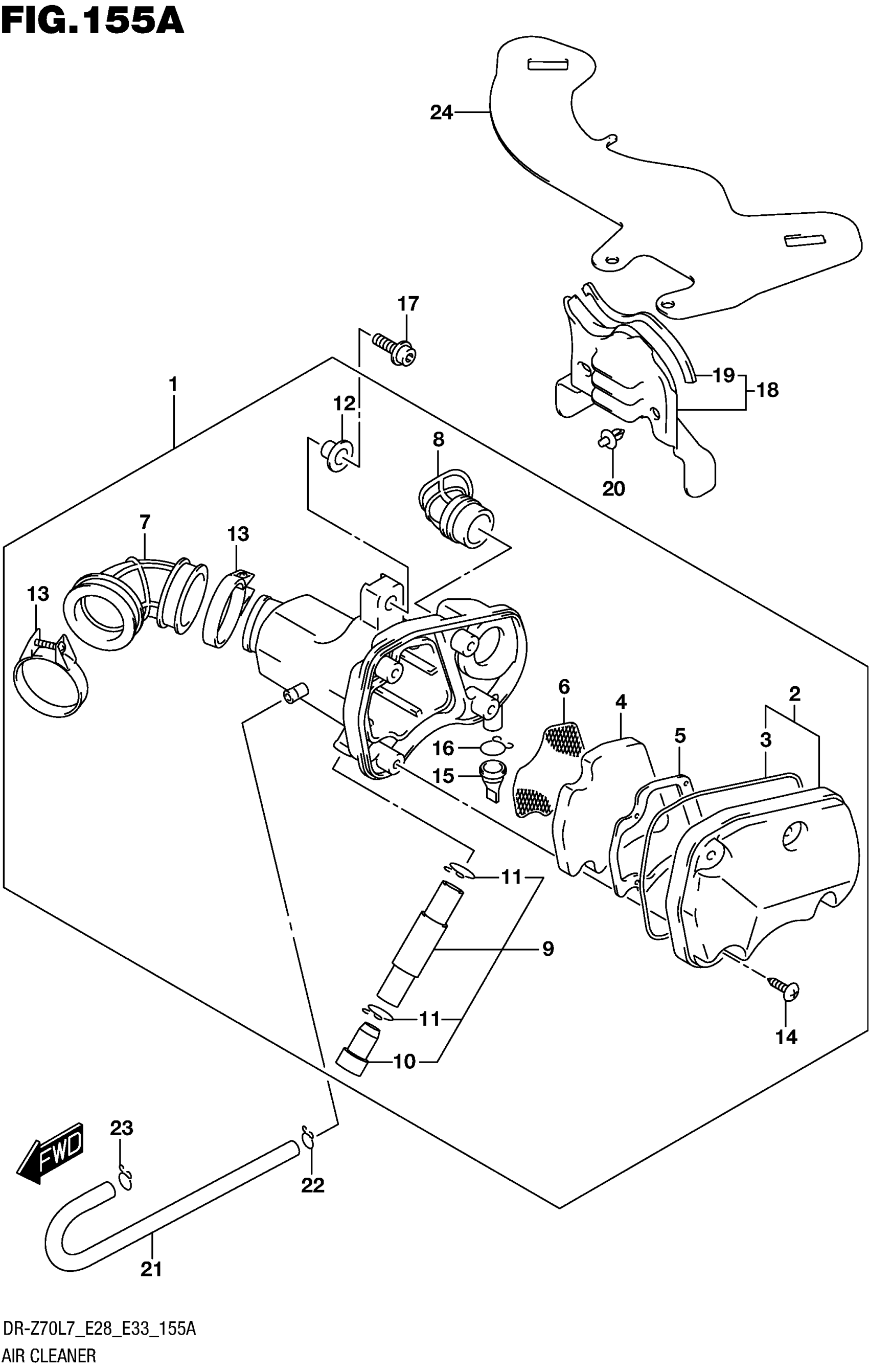

2017 Suzuki DR-Z70L7 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AIR This part replaces 13700-14H00.

13700-14H01

1
Out of stock

2

.CAP

13740-14H00

1
Out of stock

3

..GASKET

13746-14H00

1
Out of stock

4

.FILTER

13780-14H00

1
Out of stock

5

.HOLDER

13791-14H00

1
Out of stock

6

.TRAP, FLAME

13811-14H00

1
Out of stock

7

.TUBE, OUTLET

13881-14H00

1
Out of stock

8

.TUBE, INLET

13890-14H00

1
Out of stock

9

.TUBE,DRAIN This part replaces 13870-14H00.

13870-14H01

1
Out of stock

10

..PLUG

13877-00190

1
Out of stock

11

..CLIP

09401-14301

2
Out of stock

12

SPACER (6.2X8.4X10.9)

09180-06331

1
Out of stock

13

.CLAMP

09402-36208

2
Out of stock

14

.SCREW

02142-0514B

4
Out of stock

15

.TUBE, DRAIN

13878-39C10

1
Out of stock

16

CLIP This part replaces 09401-10410.

09401-10401

1
Out of stock

17

BOLT

07120-0620A

1
Out of stock

18

COVER, CLEANER INLET

13840-14H00

1
Out of stock

19

.CUSHION

13841-14H00

—
Out of stock

20

CLIP (BLACK)

09409-06322-5PK

2
Out of stock

21

HOSE,BREATHER This part replaces 13851-14H00.

13851-14H01

1
Out of stock

22

CLIP

09401-09101

1
Out of stock

23

CLIP This part replaces 09401-10410.

09401-10401

1
Out of stock

24

SHEET, AIR CLEANER INLET

13842-14H00

1
Out of stock
