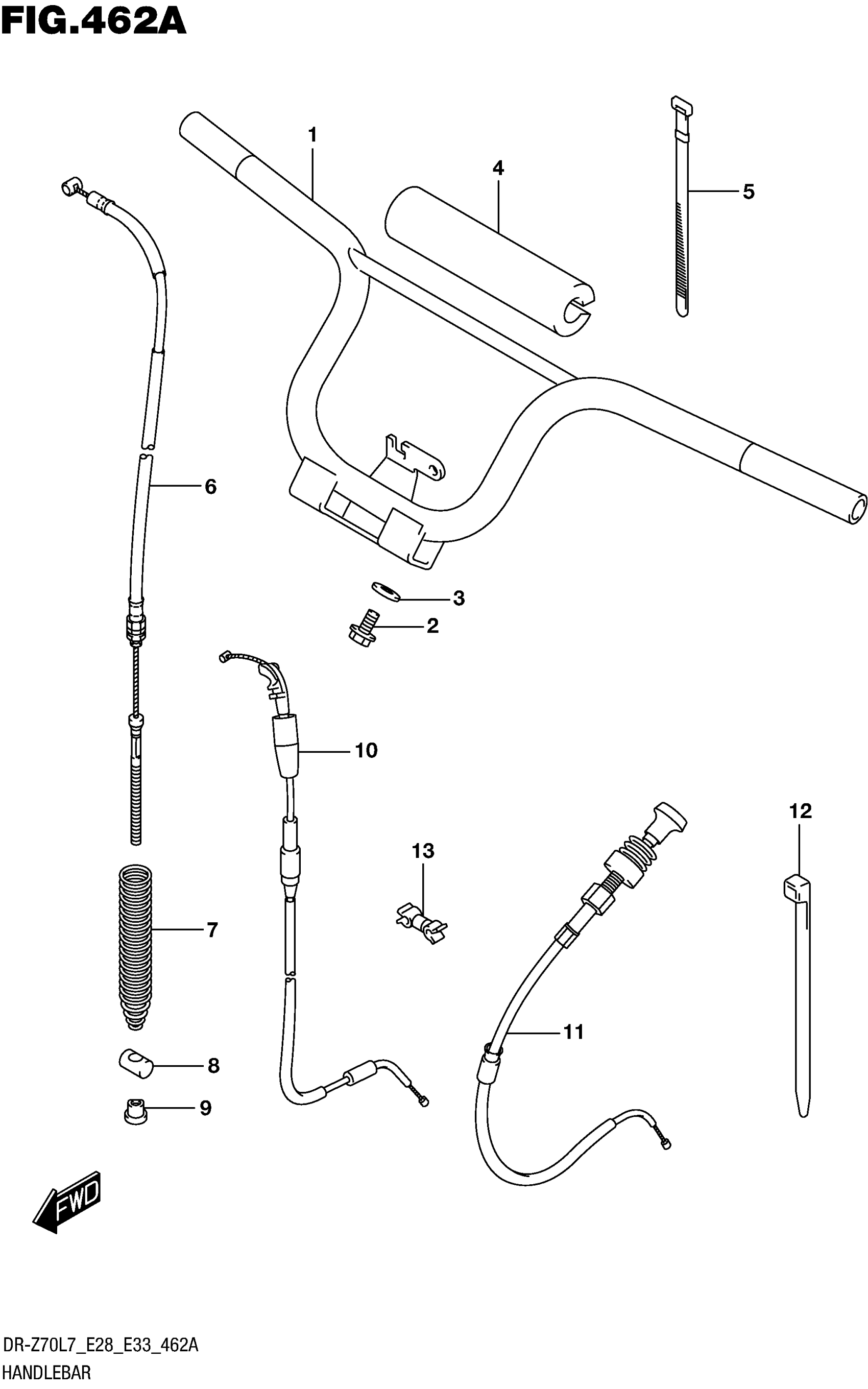

Suzuki DR-Z70L7 (2017) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (SILVER)

56110-14H00-13L

$245.55

2

BOLT (8X16)

01550-0816A

$2.32

3

WASHER (8.5X22X2)

09160-08127

$2.12

4

PAD, CROSS

56172-14H00

Unavailable

5

CLAMP

09407-14401

$3.77

6

CABLE,FRONT BRAKE This part replaces 58110-14H00.

58110-14H01

$40.00

7

SPRING,FRONT BRAKE CABLE

58162-14H00

$8.45

8

PIN (11X18)

09209-11002

$2.19

9

NUT

09150-06010

$3.10

10

CABLE ASSY,THROTTLE This part replaces 58300-14H00.

58300-14H01

$38.68

11

CABLE ASSY, STARTER

58400-14H00

$59.80

12

CLAMP (L:100)

09407-10404

$2.90

13

CLAMP

09408-00049

Unavailable
