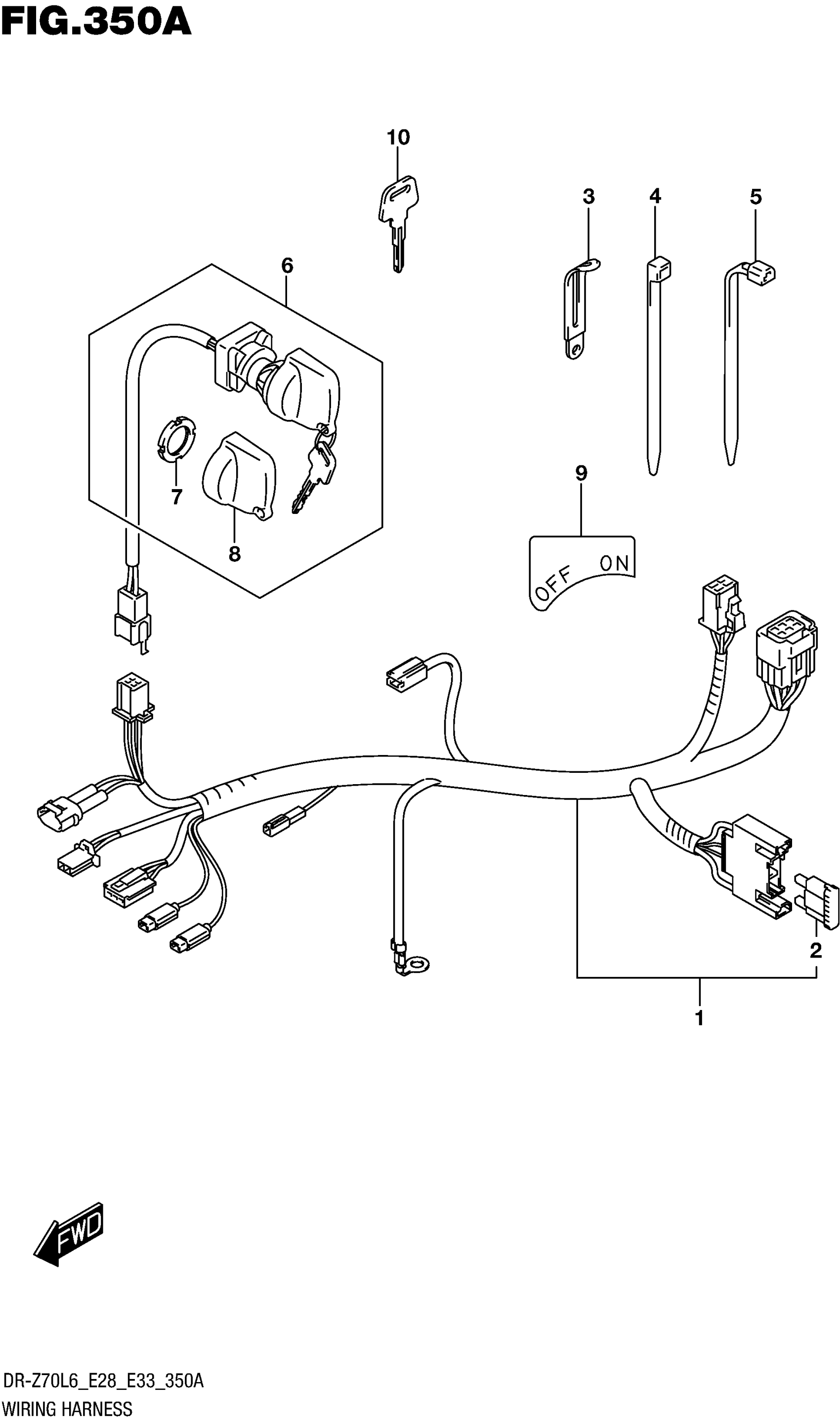

Suzuki DR-Z70L6 (2016) WIRING HARNESS (DR-Z70L6 E28) Diagram

#

Description

Price

1

HARNESS,WIRING This part replaces 36610-14H00.

36610-14H01

$140.28

2

.FUSE (10A)

09481-10101

$2.07

3

CLAMP (L:45)

09404-06429

$1.83

4

CLAMP (L:145)

09407-14407

$3.57

5

CLAMP (L:235)

09407-25401

$4.66

6

SWITCH ASSY,IGNITION This part replaces 37110-14H00.

37110-14H01

$96.12

7

.NUT,IGNITION SWITCH

37112-24500

$11.48

8

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

9

PLATE, CONTROL IDENTIFICATION

37139-09D30

Unavailable

10-1

KEY, BLANK (TYPE:C) | OPT

37146-09D00

$22.97

10-2

KEY, BLANK (TYPE:D) | OPT

37146-09D10

Unavailable

10-3

KEY, BLANK (TYPE:E) | OPT

37146-09D20

Unavailable

10-4

KEY, BLANK (TYPE:F) | OPT

37146-09D30

Unavailable
