2016 Suzuki DR-Z70L6 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2016 Suzuki DR-Z70L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

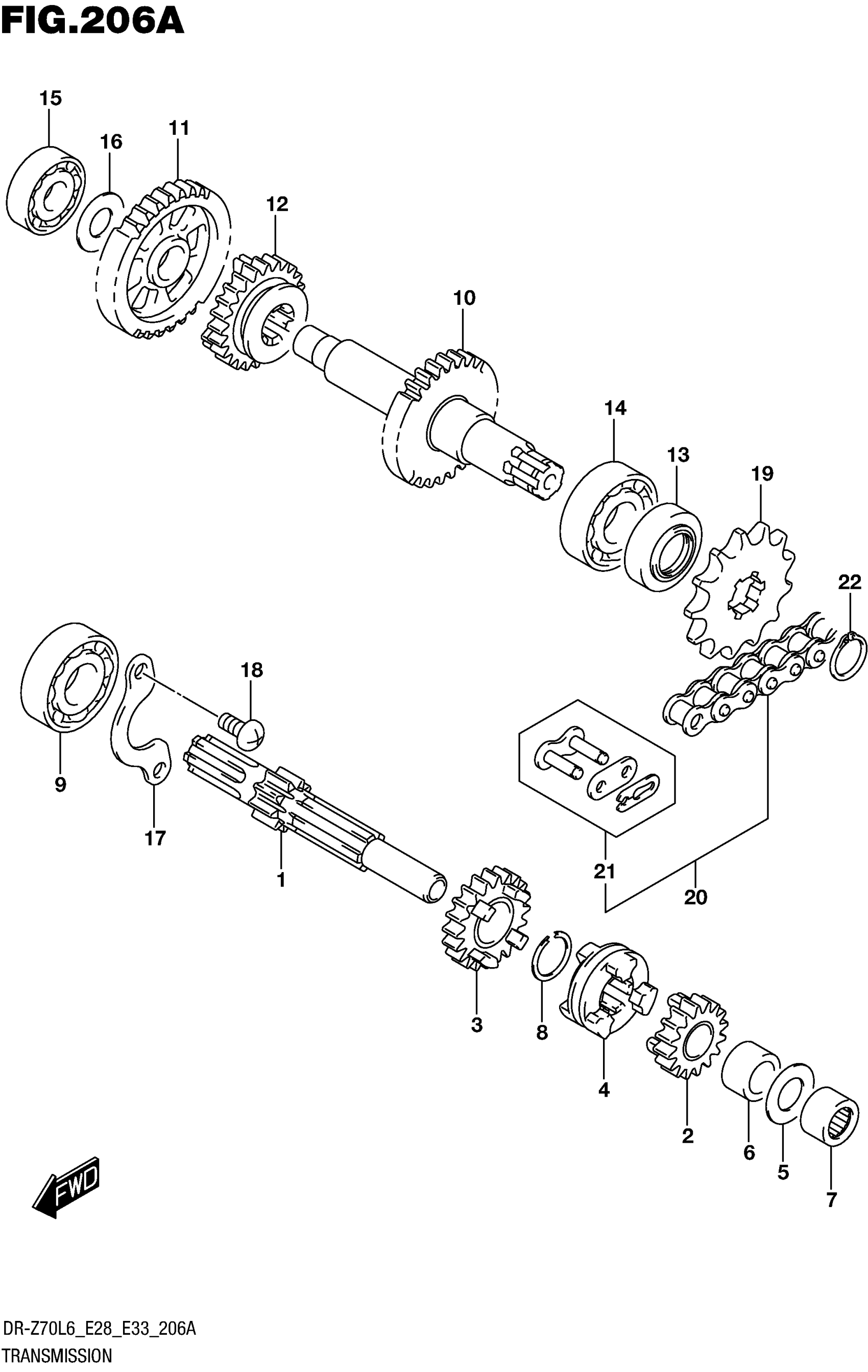

2016 Suzuki DR-Z70L6 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:10)

24121-02A02

1
Out of stock

2

GEAR, 2ND DRIVE (NT:16)

24220-02A01

1
Out of stock

3

GEAR, 3RD DRIVE (NT:20)

24231-35404

1
Out of stock

4

WHEEL, SLIDING DOG

24421-14H00

1
Out of stock

5

WASHER (13X24X1)

09160-13006

1
Out of stock

6

SPACER (13X19X12.5)

09180-13008

1
Out of stock

7

BEARING (13X19X12)

09263-13002

1
Out of stock

8

CIRCLIP

09380-17007

1
Out of stock

9

BEARING

08110-62030

1
Out of stock

10

SHAFT, DRIVE (NT:29)

24130-02A00

1
Out of stock

11

GEAR, 1ST DRIVEN (NT:34)

24310-30A01

1
Out of stock

12

GEAR, 3RD DRIVEN (NT:24)

24331-02A01

1
Out of stock

13

OIL SEAL (17X30X7)

09283-17025

1
Out of stock

14

BEARING

08110-62030

1
Out of stock

15

1

$9.97

In stock

16

WASHER

08211-12241

1

$2.23

In stock

17

RETAINER, CENTER SHAFT BEARIN

24741-09401

1
Out of stock

18

SCREW (6X12)

09125-06122

2
Out of stock

19

SPROCKET, ENGINE (NT:13)

27511-46000

1
Out of stock

20

CHAIN ASSY, DRIVE (DID428) This part replaces 27600-20910-078.

27600-20911-078

1
Out of stock

21

.JOINT SET, CHAIN This part replaces 27620-20910.

27620-20911

1
Out of stock

22

CIRCLIP This part replaces 08331-31166.

08331-31169

1
Out of stock
