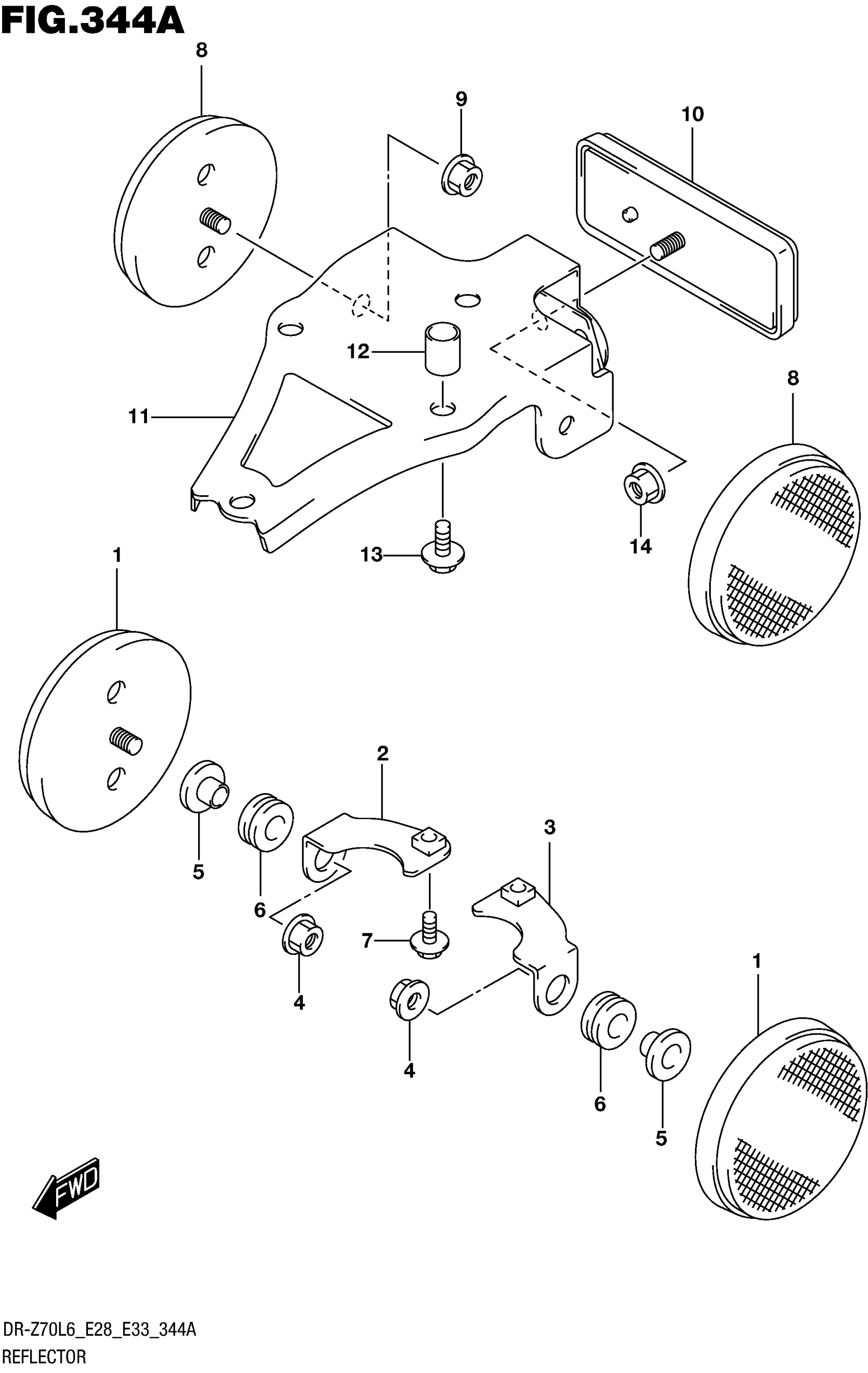

Suzuki DR-Z70L6 (2016) REFLECTOR (DR-Z70L6 E28) Diagram

#

Description
Price

1

REFLEX REFLECTOR ASSY, FR SID

35950-14A20

$11.05

2

BRACKET, FRONT SIDE RR RH

35956-14H00

Unavailable

3

BRACKET, FRONT SIDE RR LH

35957-14H00

Unavailable

4

NUT

09159-05049

$2.30

5

WASHER

09169-06063

$3.37

6

CUSHION (8.4X18X6)

09320-08066

$8.24

7

BOLT

02162-0612A

$2.05

8

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

9

NUT

08316-1005B

$2.50

10

REFLECTOR ASSY, REAR

35970-07F01

$20.88

11

BRACKET, SIDE & REAR REFL

35974-14H00

Unavailable

12

SPACER (6.5X10X13)

09180-06291

$2.45

13

BOLT, REAR REFL BRACKET

02162-0625B

$2.10

14

NUT

08316-1005B

$2.50
