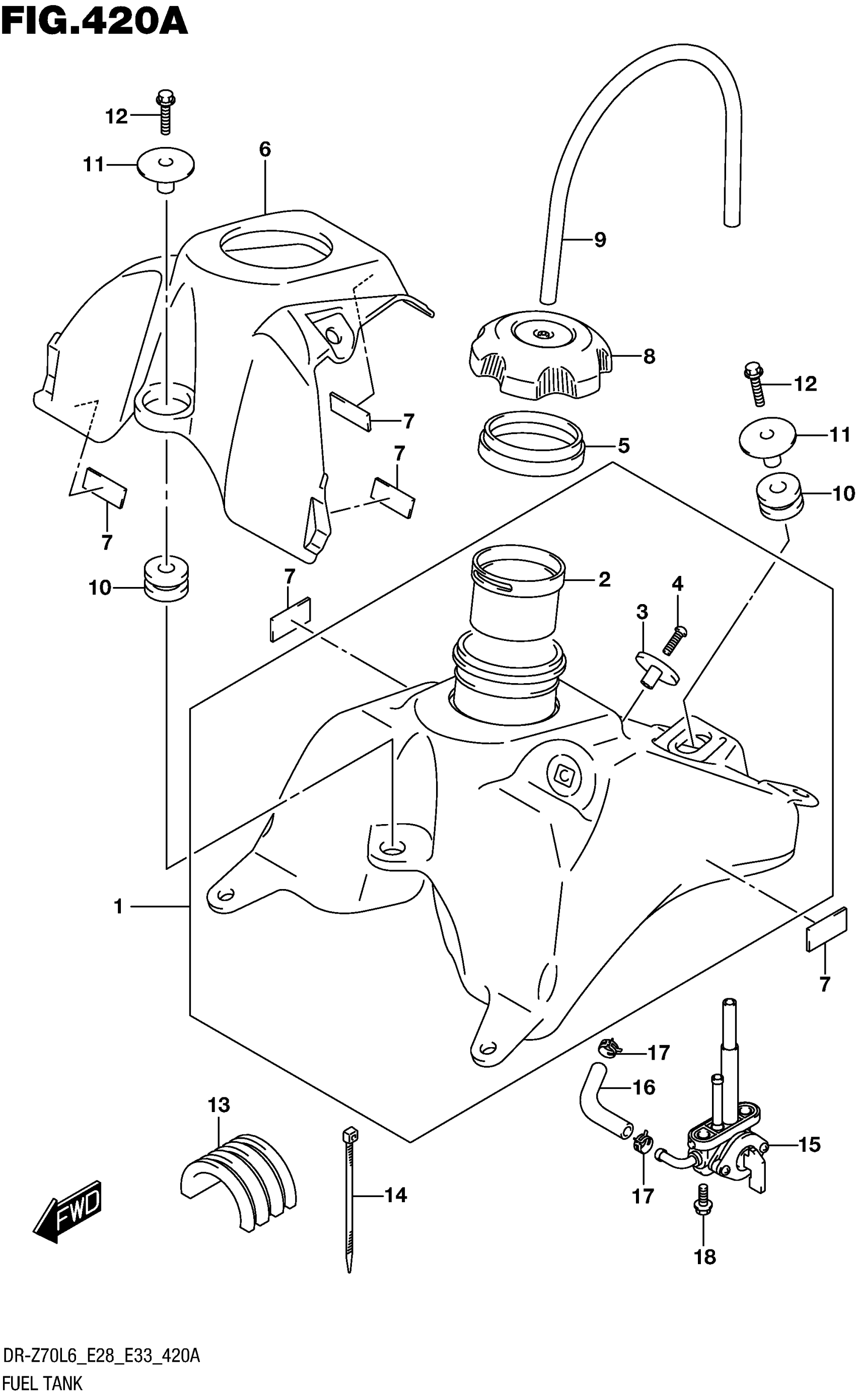

Suzuki DR-Z70L6 (2016) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-14H00

Unavailable

2

TUBE, FILLER INLET

44199-19A00

$6.28

3

HOOK, SEAT FR

44132-27C01

$17.17

4

.BOLT (6X20)

09139-06148

$4.17

5

RUBBER, FUEL TANK INLET This part replaces 44261-14H00.

44261-14H01

$10.25

6

COVER, FUEL TANK

44291-14H00

Unavailable

7

CUSHION

44294-14H00

$3.33

8

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

9

HOSE (5X8.2X360) This part replaces 09352-50823-360.

09352-50005-360

$6.38

10

CUSHION

44511-10G10

Unavailable

11

WASHER,FUEL TANK

44512-10G00

Unavailable

12

BOLT

01547-0625A

$2.01

13

CUSHION, FUEL TANK

44541-13E10

$26.73

14

CLAMP (L:300)

09407-30402

$4.11

15

COCK ASSY, FUEL

44300-14H00

$61.64

16

HOSE, FUEL

44421-14H00

Unavailable

17

CLIP (ID:9.4,H:8)

09401-09403

$2.03

18

BOLT

01547-0616A

$2.03
