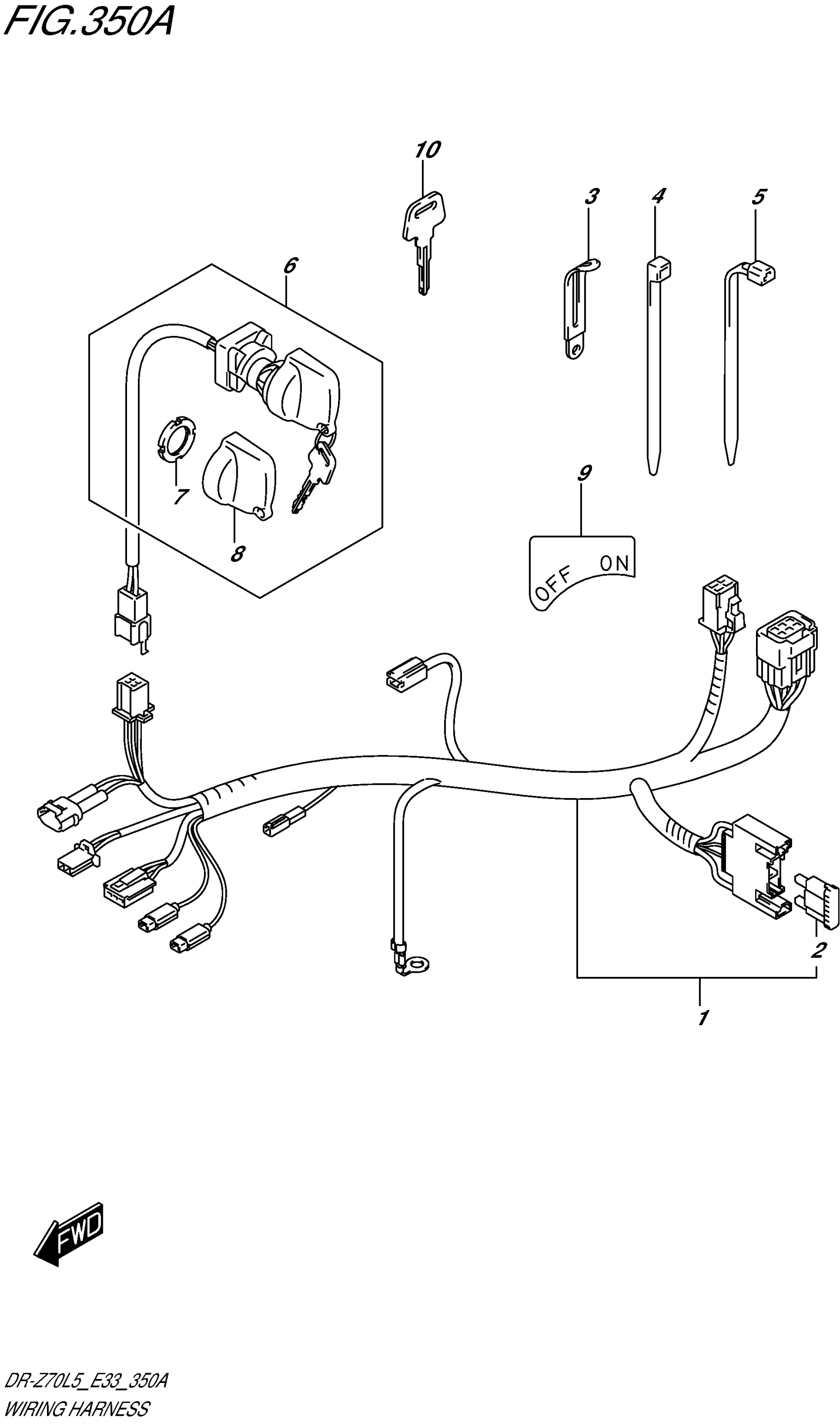

Suzuki DR-Z70L5 (2015) WIRING HARNESS Diagram

#

Description

Price

1

HARNESS,WIRING This part replaces 36610-14H00.

36610-14H01

$157.57

2

FUSE (10A)

09481-10101

$0.68

3

CLAMP (L:45)

09404-06429

$1.82

4

CLAMP (L:145)

09407-14407

$2.80

5

CLAMP (L:235)

09407-25401

$4.21

6

SWITCH ASSY,IGNITION This part replaces 37110-14H00.

37110-14H01

$107.97

7

.NUT,IGNITION SWITCH

37112-24500

$12.60

8

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

9

PLATE, CONTROL IDENTIFICATION

37139-09D30

Unavailable

10

KEY, BLANK (TYPE:F) | OPT

37146-09D30

Unavailable
