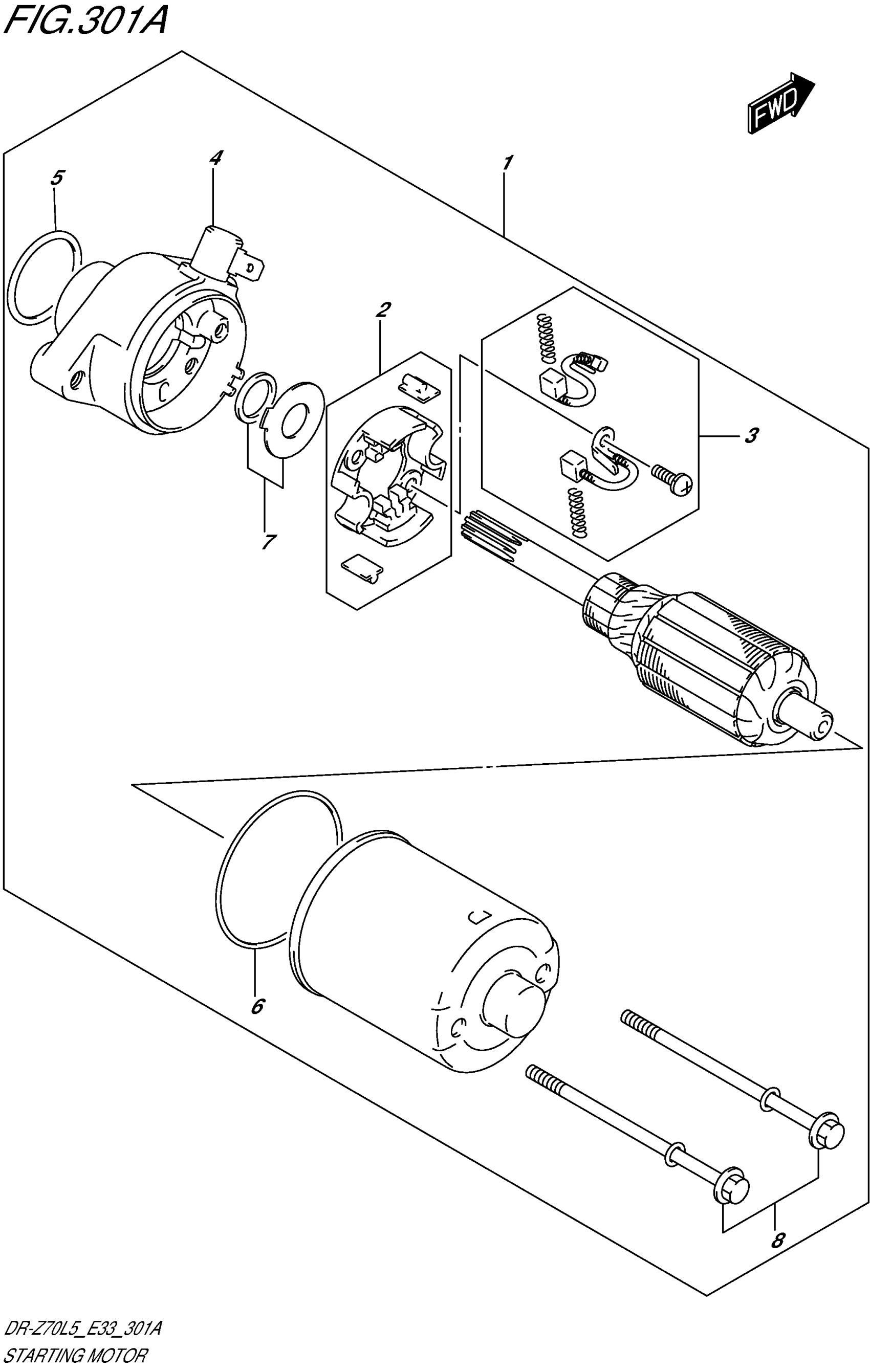

Suzuki DR-Z70L5 (2015) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY, STARTING

31100-30D00

$467.83

2

HOLDER SET, BRUSH

31130-35400

Unavailable

3

BRUSH SET

31131-35400

Unavailable

4

HOUSING ASSY

31151-30D01

Unavailable

5

.O-RING (D:2.4,ID:24.7)

09280-25004

$2.01

6

O RING

31158-35400

Unavailable

7

SHIM SET

31170-43400

Unavailable

8

BOLT SET

31280-31C00

Unavailable
