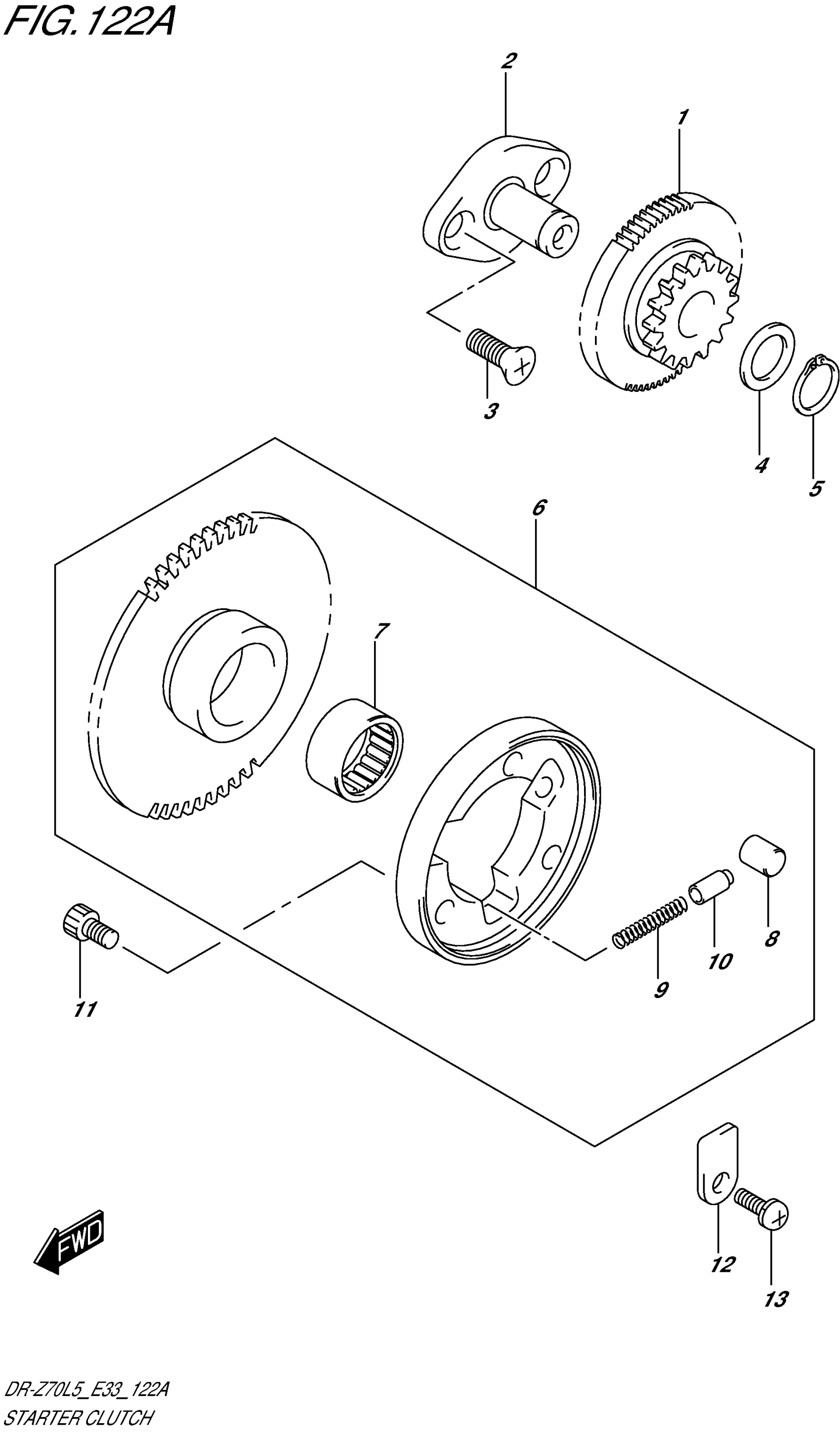

Suzuki DR-Z70L5 (2015) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE (NT:16/68)

12611-09410

Unavailable

2

SHAFT, STARTER IDLE GEAR

12612-23F01

Unavailable

3

SCREW

02122-0616A

$1.49

4

WASHER (13X20X1)

09160-13010

$2.08

5

CIRCLIP

08331-31139

Unavailable

6

CLUTCH SET, STARTER (NT:49)

12600-09855

$184.30

7

BEARING (17X25X15)

09263-17025

Unavailable

8

PIN (9X10)

09261-09002

$3.50

9

SPRING

09440-03004

Unavailable

10

PIECE

12633-05300

Unavailable

11

BOLT (6X12)

09106-06075

$2.48

12

PLATE

12629-09410

Unavailable

13

SCREW

02112-3612A

$2.06
