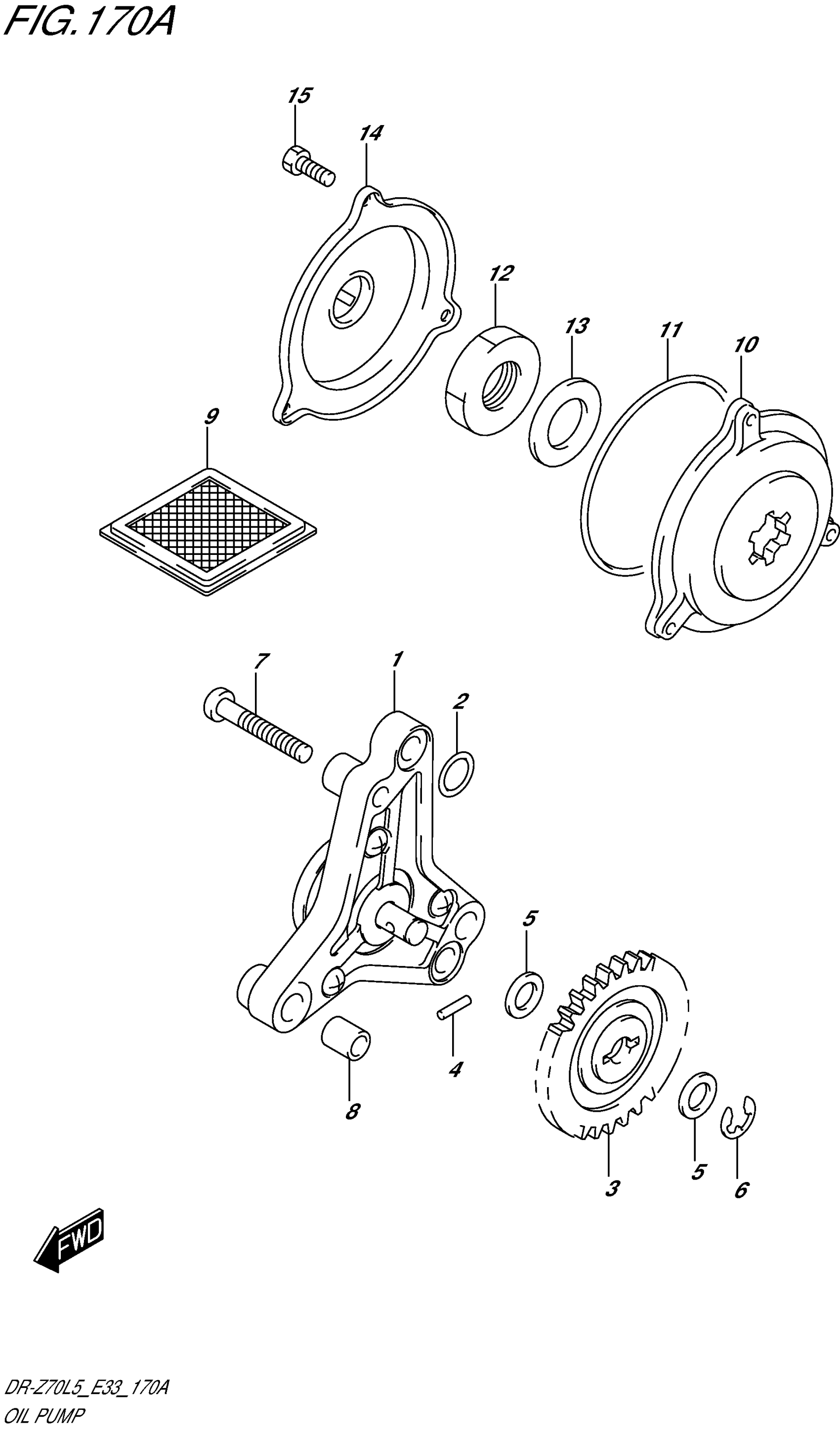

Suzuki DR-Z70L5 (2015) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENGINE OIL

16400-09403

Unavailable

2

O RING (D:1.9,ID:9.8)

09280-10016

$3.37

3

GEAR, OIL PUMP DRIVEN (NT:31)

16331-09440

$13.25

4

PIN (2.5X19.8)

09261-02001

$1.56

5

SHIM (8.8X14X1)

09181-08139

$1.91

6

E RING

08332-1106A

$1.49

7

SCREW

02112-0635A

Unavailable

8

PIN

04211-09129

$1.65

9

STRAINER,ENGINE OIL This part replaces 16520-09402.

16520-09403

$8.53

10

CASE, ENGINE OIL FILTER

16530-09411

Unavailable

11

.O RING (D:2.4,ID:60.5)

09280-60005

$3.18

12

NUT

09140-16025

Unavailable

13

WASHER

09164-16004

Unavailable

14

COVER, OIL FILTER

16540-09D00

Unavailable

15

BOLT (5X10)

09100-05019

$1.93
