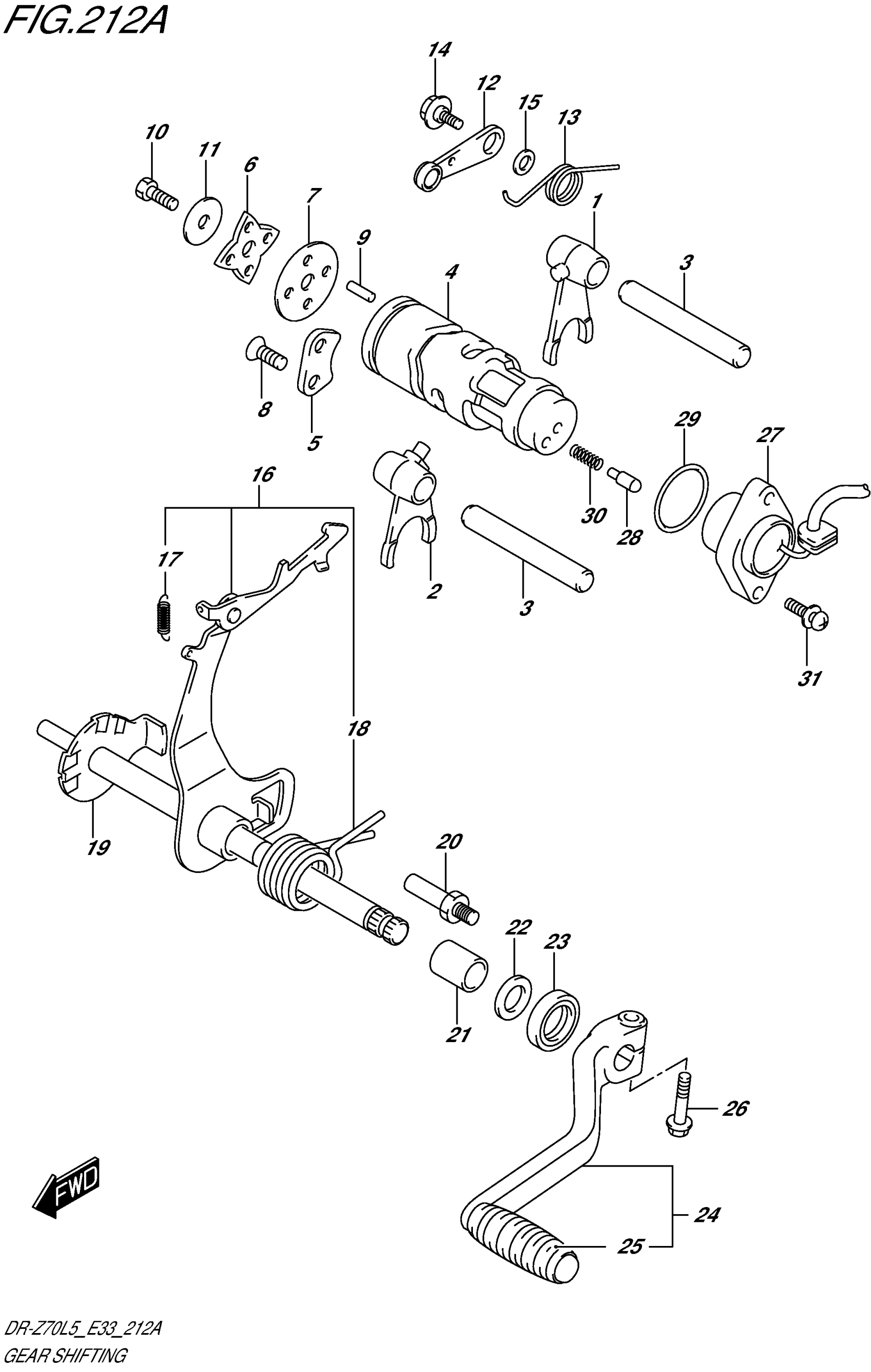

Suzuki DR-Z70L5 (2015) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-09400

Unavailable

2

FORK, GEAR SHIFT NO.2

25221-02A00

Unavailable

3

SHAFT, GEAR SHIFT FORK

25421-04702

Unavailable

4

CAM, GEAR SHIFT

25311-14H00

Unavailable

5

RETAINER, GEAR SHIFT CAM

25341-09400

Unavailable

6

PLATE, SHIFT CAM STOPPER

25381-35401

Unavailable

7

GUIDE, GR SHIKFT CAM

25382-35401

$1.49

8

SCREW (6X16)

09126-06014

$2.06

9

ROLLER (4X13.8)

09261-04002

$1.72

10

BOLT

01547-0616A

$2.03

11

STOPPER

08211-06221

Unavailable

12

STOPPER, GEAR SHIFT CAM

25350-09D00

Unavailable

13

SPRING, SHIFT CAM STOPPER

25355-14H00

Unavailable

14

BOLT (6X14.3)

09111-06041

$2.61

15

WASHER

08211-06121

$1.54

16

ASRM ASSY,GR SH This part replaces 25501-09440.

25500-09811

Unavailable

17

SPRING

09443-05030

Unavailable

18

SPRING

09444-26025

$5.33

19

SHAFT, GEAR SHIFT

25510-09405

$61.15

20

STOPPER, SHAFT ARM

25671-35410

Unavailable

21

SPACER (12X16X20)

09180-12036

Unavailable

22

SHIM (12X20X1)

09181-12167

$2.26

23

OIL SEAL (12X22X9)

09285-12006

$6.32

24

LEVER ASSY,GEAR SHIFT This part replaces 25600-14H00.

25600-14H01

$43.42

25

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

26

BOLT

01500-0620A

$1.78

27

BASE ASSY, NEUT SW TERM

37720-09420

$42.03

28

PIN (5X15.5)

09209-05011

$2.20

29

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

30

SPRING

09440-04010

$1.54

31

SCREW

02112-1516A

Unavailable
