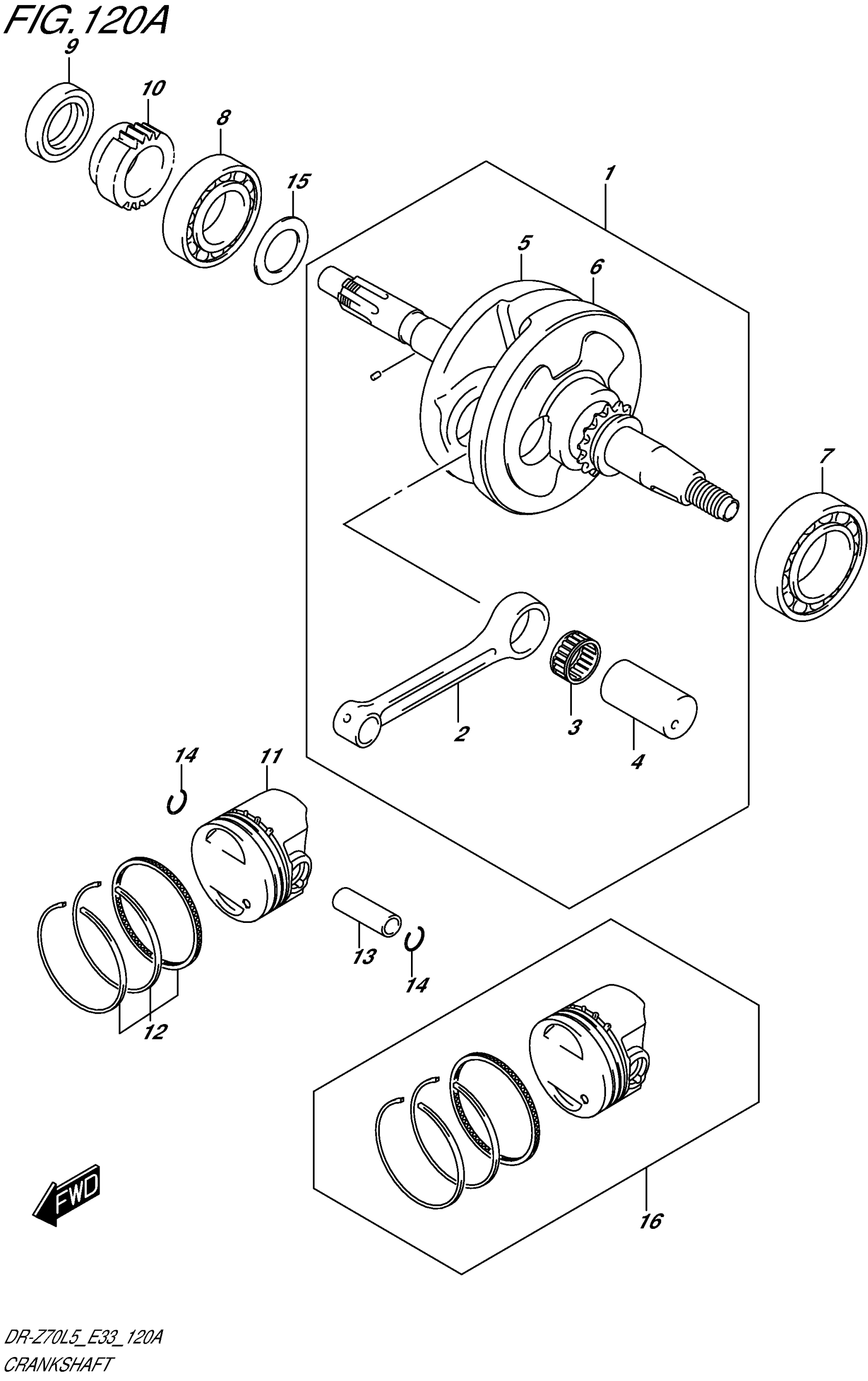

Suzuki DR-Z70L5 (2015) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-14H01

Unavailable

2

CONNROD

12161-14H00-0C0

Unavailable

3

PIN

12211-09403-0A0

Unavailable

4

BEARING (22X28X14)

09263-22072-0B0

$21.97

5

CRANKSHAFT, RH

12220-14H00

Unavailable

6

CRANKSHAFT, LH

12260-14H01

Unavailable

7

BEARING (35X62X14)

09262-35021-0A0

$42.02

8

BEARING (20X52X15)

09262-20073

$23.28

9

OIL SEAL (20X32X7)

09282-20005

$12.13

10

GEAR, OIL PUMP DRIVE (NT:17)

16321-09411

Unavailable

11

PISTON

12111-14H00-0F0

$99.63

12

RING SET, PISTON

12140-09D20

$108.97

13

PIN, PISTON

12151-02A00

$12.72

14

SNAP RING

09381-13001

$1.75

15

SHIM,20X30X0.6 (T:0.60)

09181-20187

Unavailable

15

SHIM,20X30X0.65 (T:0.65)

09181-20009

Unavailable

15

SHIM,20X30X0.7 (T:0.70)

09181-20188

Unavailable

15

SHIM,20X30X0.75 (T:0.75)

09181-20189

Unavailable

15

SHIM,20X30X0.8 (T:0.80)

09181-20190

Unavailable

15

SHIM,20X30X0.85 (T:0.85)

09181-20191

Unavailable

15

SHIM,20X30X0.9 (T:0.90)

09181-20192

Unavailable

15

SHIM,20X30X1.95 (T:0.95)

09181-20193

Unavailable

15

SHIM (T:1.00)

09181-20195

$2.60

15

SHIM,20X30X1.05 (T:1.05)

09181-20197

Unavailable

15

SHIM,20X30X1.1 (T:1.10)

09181-20200

Unavailable

15

SHIM,20X30X1.15 (T:1.15)

09181-20202

Unavailable

15

SHIM,20X30X1.2 (T:1.20)

09181-20204

Unavailable

15

SHIM,20X30X1.25 (T:1.25)

09181-20207

Unavailable

15

SHIM,20X30X1.3 (T:1.30)

09181-20209

Unavailable

16

PISTON SET (OS:0.5) | OPT

12100-14H00-050

$192.60
