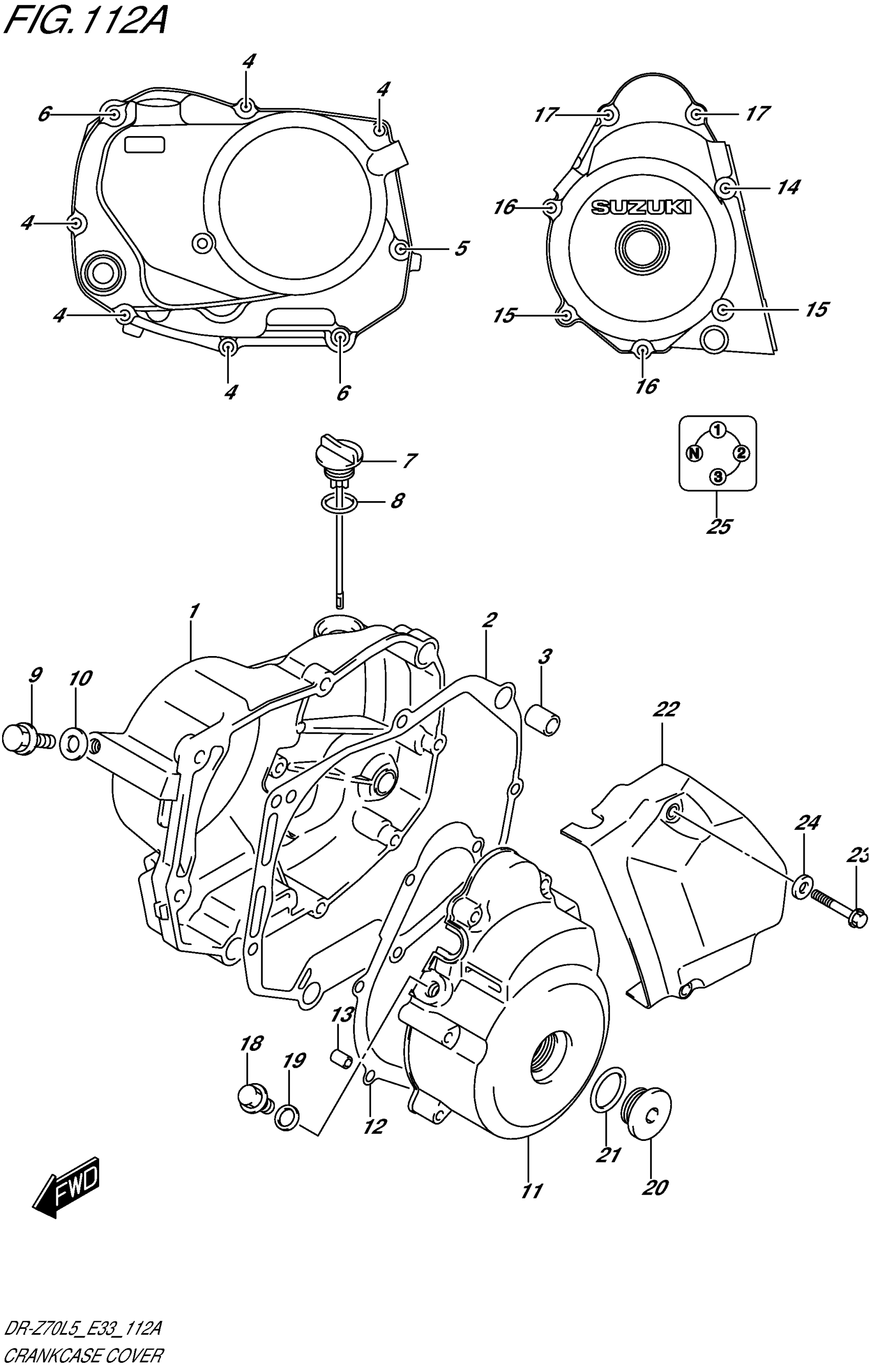

Suzuki DR-Z70L5 (2015) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-14H00

Unavailable

2

GASKET, CLUTCH COVER

11482-09420

$15.53

3

PIN

04211-13189

$2.19

4

BOLT

01547-0625A

$2.01

5

BOLT

01547-0635A

$2.30

6

BOLT

01547-0650A

$2.46

7

GAUGE, OIL LEVEL

11971-055A0

$12.40

8

O RING (D:3.2,ID:15.8)

09280-16008

$2.02

9

BOLT (8X12)

01550-0812A

$2.32

10

GASKET (8.2X14X1.6)

09168-08015

$2.79

11

COVER, MAGNETO

11351-14H00

$156.62

12

GASKET, MAGNETO COVER

11483-09440

$12.47

13

PIN

04211-09129

$1.65

14

BOLT

01547-0630A

$2.32

15

BOLT

01547-0640A

$2.32

16

BOLT

01547-0650A

$2.46

17

BOLT

01547-0690A

$2.70

18

PLUG (12X10)

09247-12006

$2.82

19

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

20

PLUG (26X9)

09259-26011

$11.03

21

O RING (D:3.1,ID:22.7)

09280-22008

$2.27

22

COVER, ENGINE SPROCKET

11360-14H00

$28.35

23

BOLT

01547-0640A

$2.32

24

WASHER

08322-0106A

$1.84

25

LABEL, GEAR SHIFT PATTERN

28117-14H00

Unavailable
