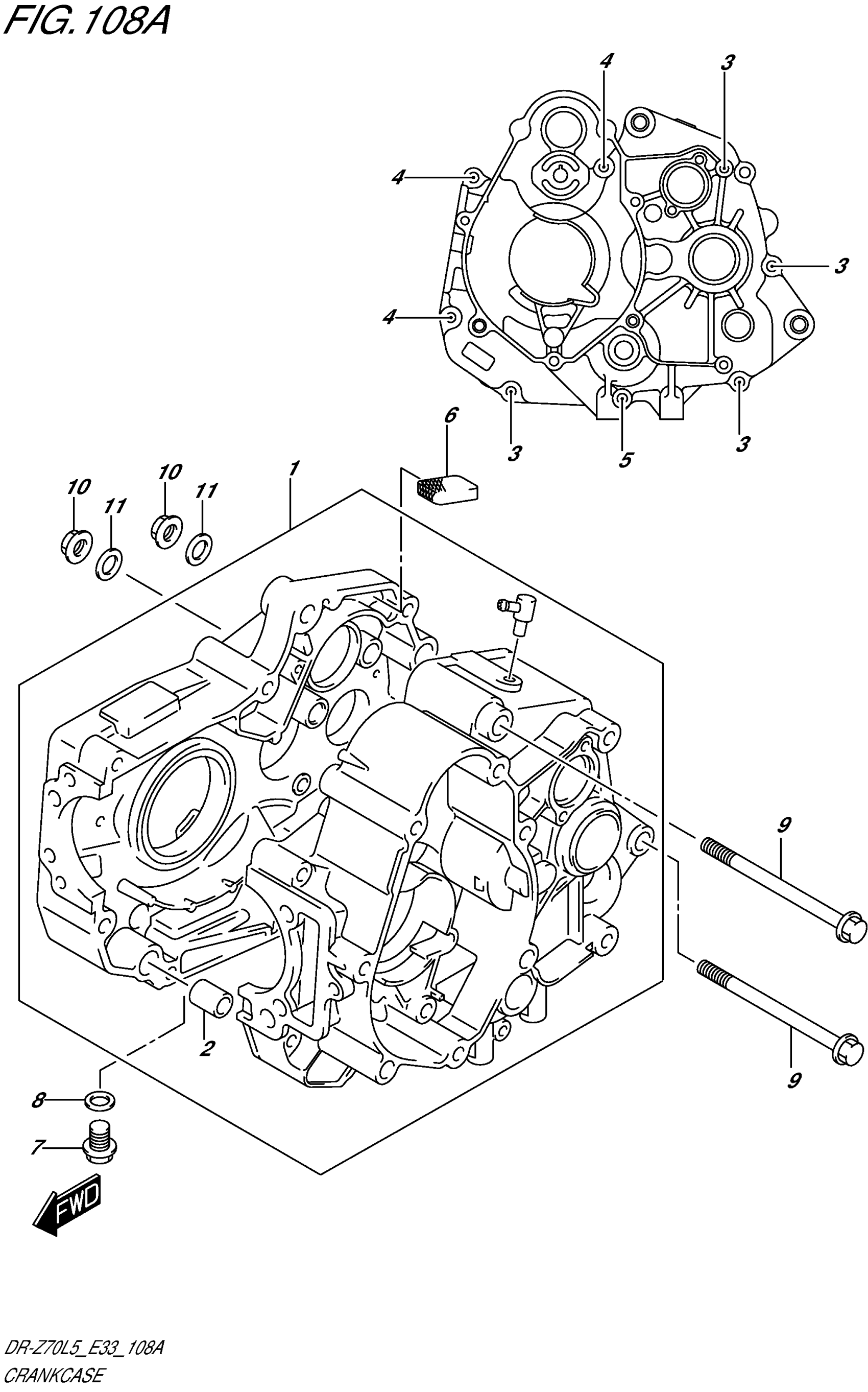

Suzuki DR-Z70L5 (2015) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-14810

Unavailable

2

PIN

04211-13189

$2.19

3

BOLT

01547-0630A

$2.32

4

BOLT

01547-0640A

$2.32

5

BOLT

01547-0675A

$3.28

6

SEPARATOR, OIL BREATHER

11186-30D00

Unavailable

7

PLUG (10X12) | OIL DRAIN

09247-10008

$1.97

8

GASKET (10X14X3.6)

09168-10002

$2.13

9

BOLT (8X100)

09103-08070

$5.57

10

NUT

08319-3108A

$2.32

11

WASHER

08322-0108A

$1.92
