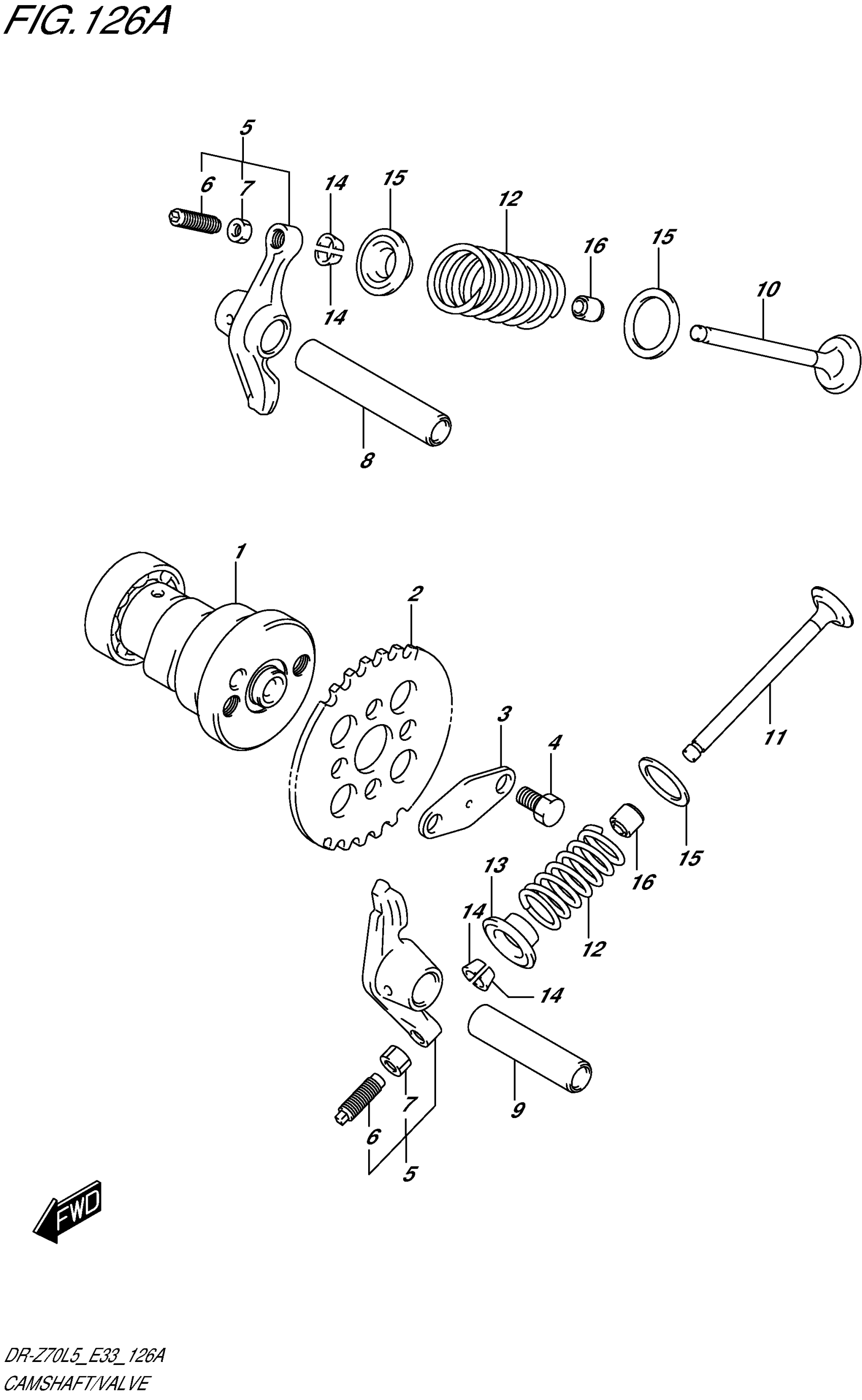

Suzuki DR-Z70L5 (2015) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT ASSY

12710-02A10

Unavailable

2

SPROCKET, CAMSHAFT (NT:28)

12741-09405

Unavailable

3

WASHER, SPROCKET

12714-09401

Unavailable

4

BOLT (6X10.5)

09111-06032

$2.21

5

ARM, VALVE LOCKER

12840-30A11

Unavailable

6

SCREW

12842-49201

$6.63

7

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

8

SHAFT, VALVE LOCKER ARM IN

12861-09401

Unavailable

9

SHAFT, VALVE LOCKER ARM EX

12871-09401

Unavailable

10

VALVE, INTAKE

12911-09D00

$67.83

11

VALVE, EXHAUST

12912-02A00

$70.17

12

SPRING, VALVE

12921-36G00

$6.74

13

RETAINER, VALVE SPRING

12931-09420

Unavailable

14

COTTER, VALVE

12932-27A00

$2.26

15

SEAT, SPRING

12934-09400

Unavailable

16

OIL SEAL (5X10.5X8.4)

09289-05008

$6.30
