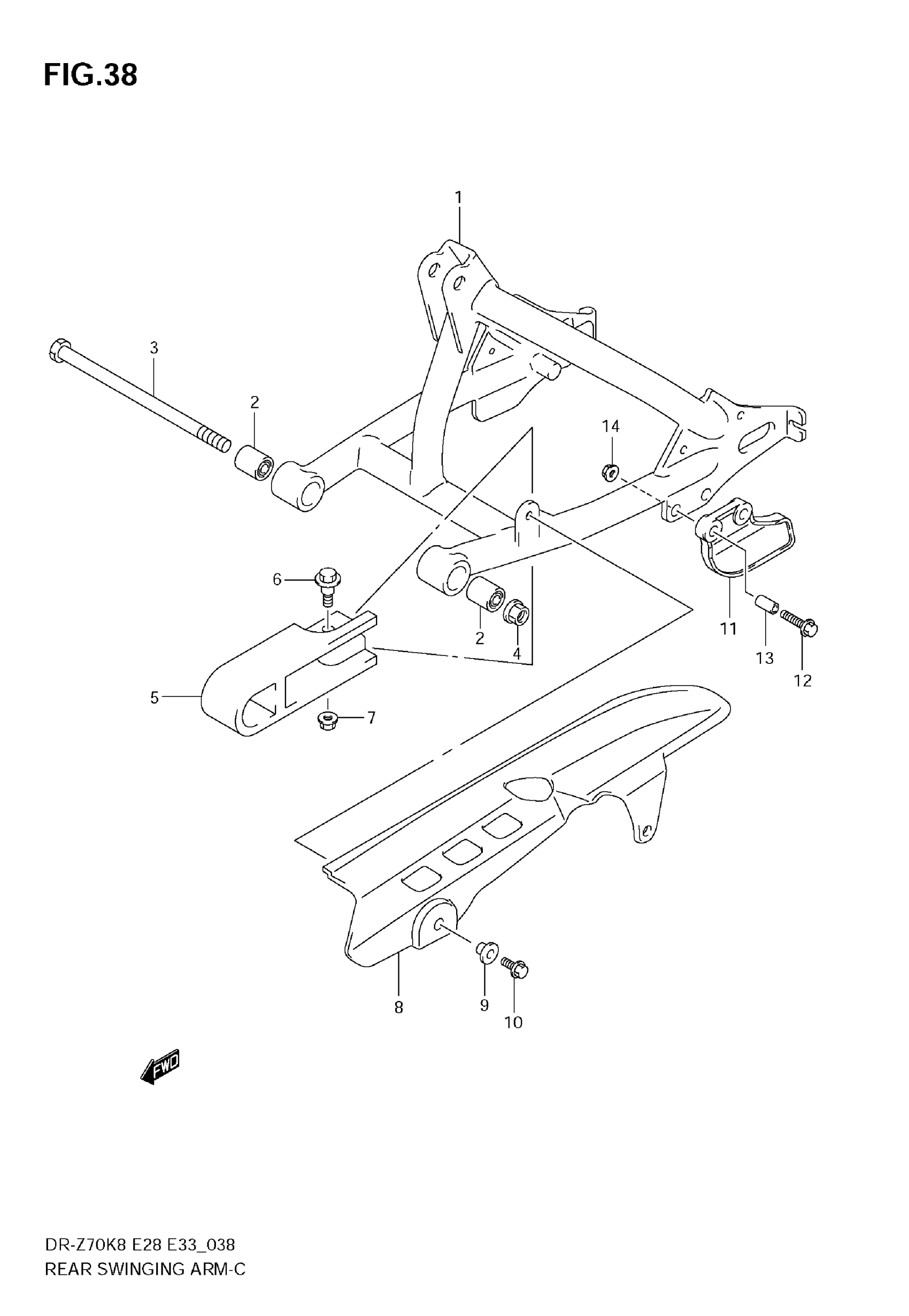

Suzuki DR-Z70 (2009) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (SILVER) | Includes Item(s) 2 This part replaces 61000-14H00-13L.

61000-14H10-13L

$541.87

2

.BUSH (10X23X30)

09319-10043

$16.87

3

SHAFT, PIVOT

61211-14H00

Unavailable

4

NUT

08319-3110A

$2.73

5

BUFFER,CHAIN This part replaces 61273-14H00.

61273-14H01

$24.08

6

BOLT, CHAIN BUFFER

09111-06092

$2.62

7

NUT, CHAIN BUFFER

08316-1006A

$2.19

8

CASE, CHAIN

61311-14H00

$68.03

9

WASHER, CHAIN CASE

09169-06040

$1.92

10

BOLT, CHAIN CASE

01547-0612A

$2.03

11

GUIDE, CHAIN

61341-14H00

Unavailable

12

BOLT, CHAIN GUIDE

09116-06177

$2.50

13

SPACER, CHAIN GUIDE

09180-06304

Unavailable

14

NUT, CHAIN GUIDE

08316-1006A

$2.19
