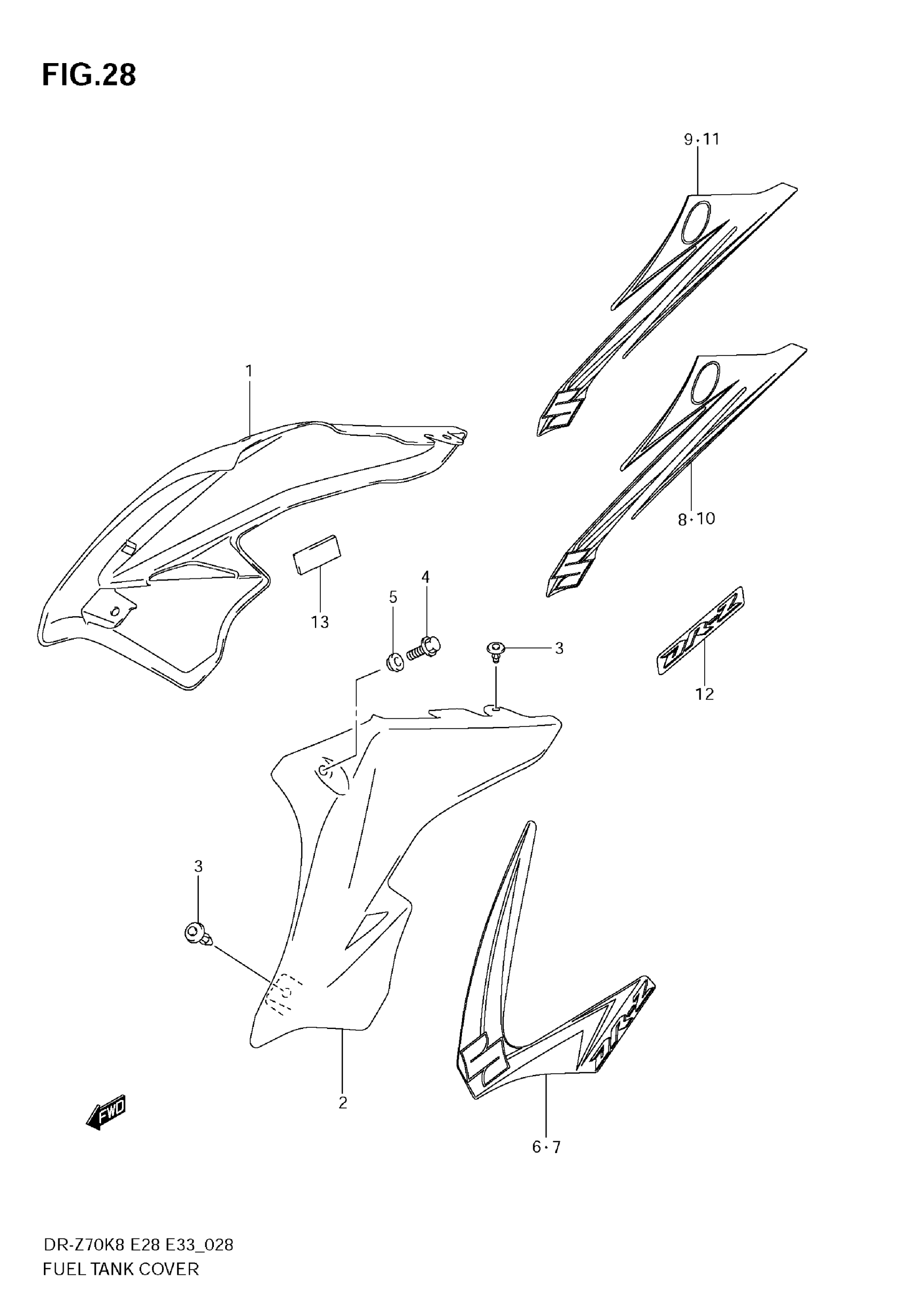

Suzuki DR-Z70 (2009) FUEL TANK COVER Diagram

#

Description
Price

1

COVER, FUEL TANK RH (BLACK)

44271-14H00-019

Unavailable

1

COVER, FUEL TANK RH (YELLOW)

44271-14H00-YU1

$72.37

2

COVER, FUEL TANK LH (BLACK)

44281-14H00-019

Unavailable

2

COVER, FUEL TANK LH (YELLOW)

44281-14H00-YU1

$92.83

3

CLIP (BLACK)

09409-08308-5ES

$1.97

4

BOLT

01547-0616A

$2.03

5

WASHER

09169-06081

$3.68

6

TAPE, COVER RH | MODEL K8 FOR 019

68115-14H00-ESZ

Unavailable

6

TAPE, COVER RH | MODEL K8 FOR YU1

68115-14H00-EMA

Unavailable

7

TAPE, COVER LH | MODEL K8 FOR 019

68116-14H00-ESZ

Unavailable

7

TAPE, COVER LH | MODEL K8 FOR YU1

68116-14H00-EMA

Unavailable

8

TAPE, COVER RH | MODEL K9 FOR 019

68115-14H20-GGL

Unavailable

9

TAPE, COVER RH | MODEL K9 FOR YU1

68115-14H10-FYF

Unavailable

10

TAPE, COVER LH | MODEL K9 FOR 019

68116-14H20-GGL

Unavailable

11

TAPE, COVER LH | MODEL K9 FOR YU1

68116-14H10-FYF

Unavailable

12

EMBLEM | MODEL K9 FOR 019

68111-14H00-GGM

Unavailable

12

EMBLEM,FUEL TAN | MODEL K9 FOR YU1 This part replaces 68111-14H00-DCP.

68111-14H01-DCP

$10.93

13

CUSHION, RH

44294-14H00

$3.33
