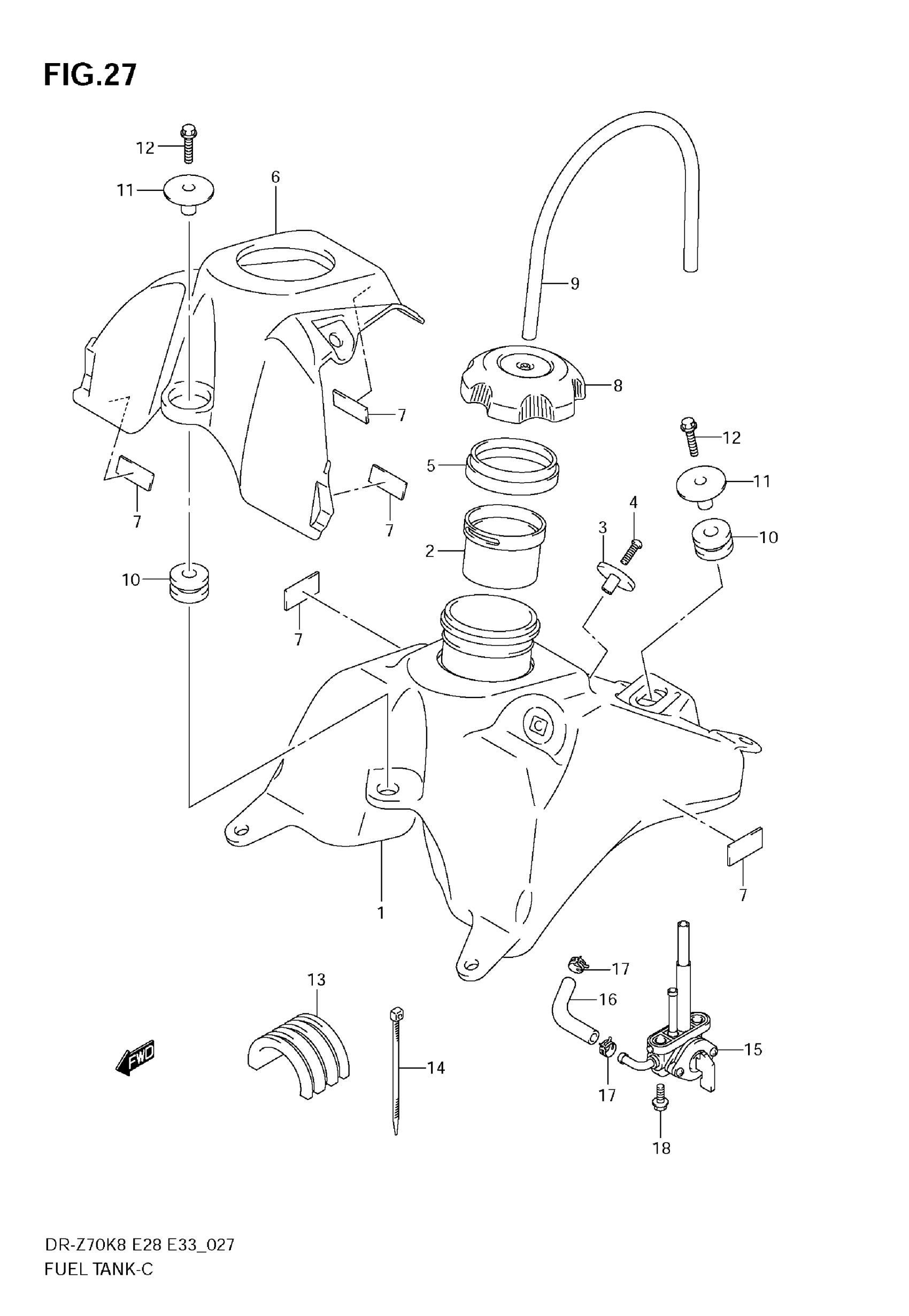

Suzuki DR-Z70 (2009) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL | Includes Item(s) 2 - 4

44100-14H00

Unavailable

2

TUBE, FILLER INLET

44199-19A00

$6.28

3

HOOK, SEAT FR

44132-27C01

$17.17

4

SCREW

09139-06148

$4.17

5

RUBBER, FUEL TANK INLET This part replaces 44261-14H00.

44261-14H01

$10.25

6

COVER, FUEL TANK

44291-14H00

Unavailable

7

CUSHION

44294-14H00

$3.33

8

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

9

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

10

CUSHION

44511-10G10

Unavailable

11

WASHER,FUEL TANK

44512-10G00

Unavailable

12

BOLT

01547-0625A

$2.01

13

CUSHION, FUEL TANK

44541-13E10

$26.73

14

CLAMP

09407-30402

$4.11

15

COCK ASSY, FUEL

44300-14H00

$61.64

16

HOSE, FUEL

44421-14H00

Unavailable

17

CLIP (ID:9.4,H:8)

09401-09403

$2.03

18

BOLT

01547-0616B

$2.45
