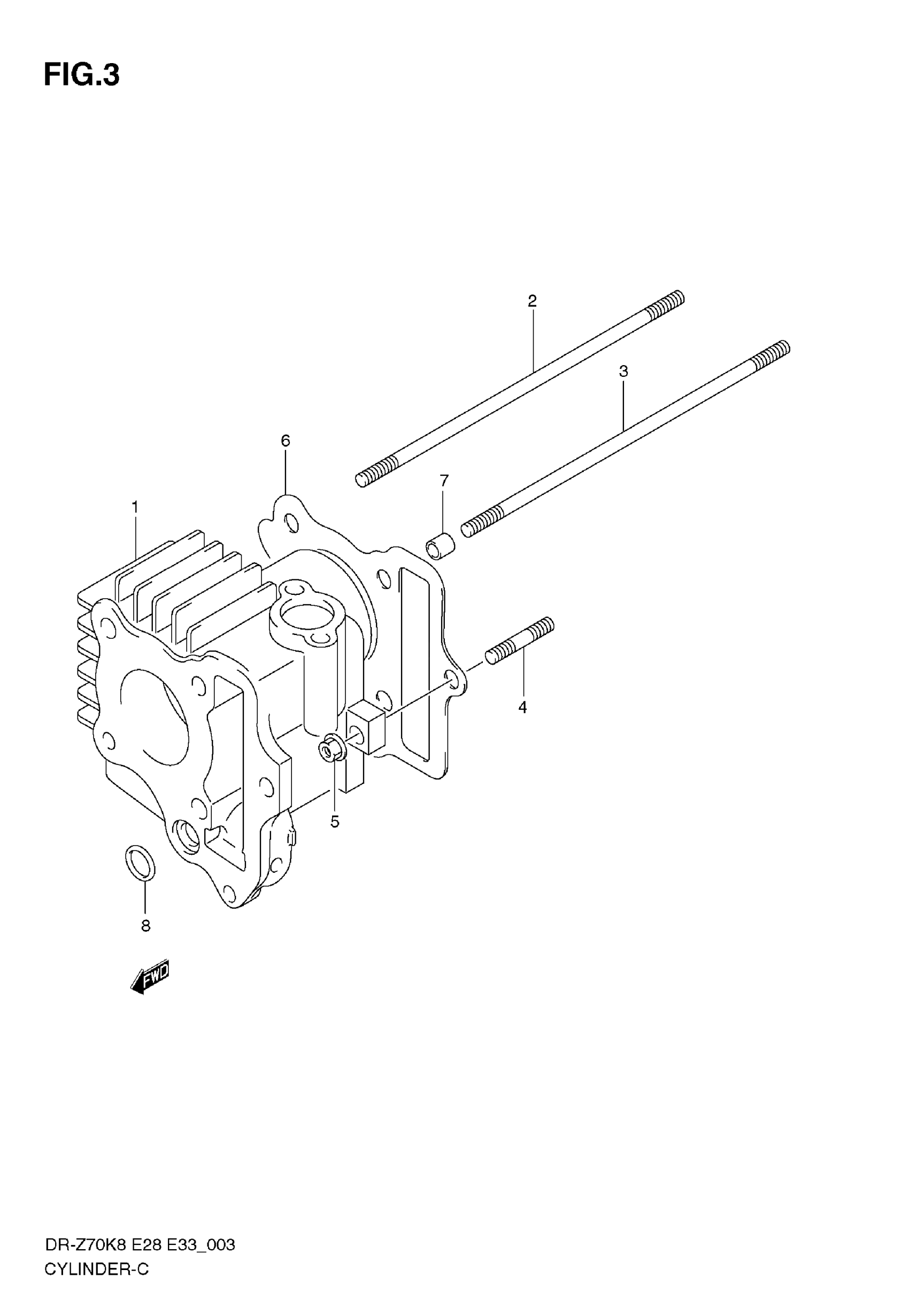

Suzuki DR-Z70 (2009) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11211-02A10-0F0

$322.07

2

STUD BOLT (L:169)

09108-06054

Unavailable

3

STUD BOLT (L:175)

09108-06055

Unavailable

4

BOLT,STUD (L:20)

09108-06124

Unavailable

5

NUT

08316-1006B

$2.50

6

GASKET, CYLINDER

11241-02A11

$7.88

7

PIN (8X11)

09206-08001

$1.78

8

O RING (D:2.4,ID:11.8)

09280-12012

$4.64
