2009 Suzuki DR-Z70 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2009 Suzuki DR-Z70, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

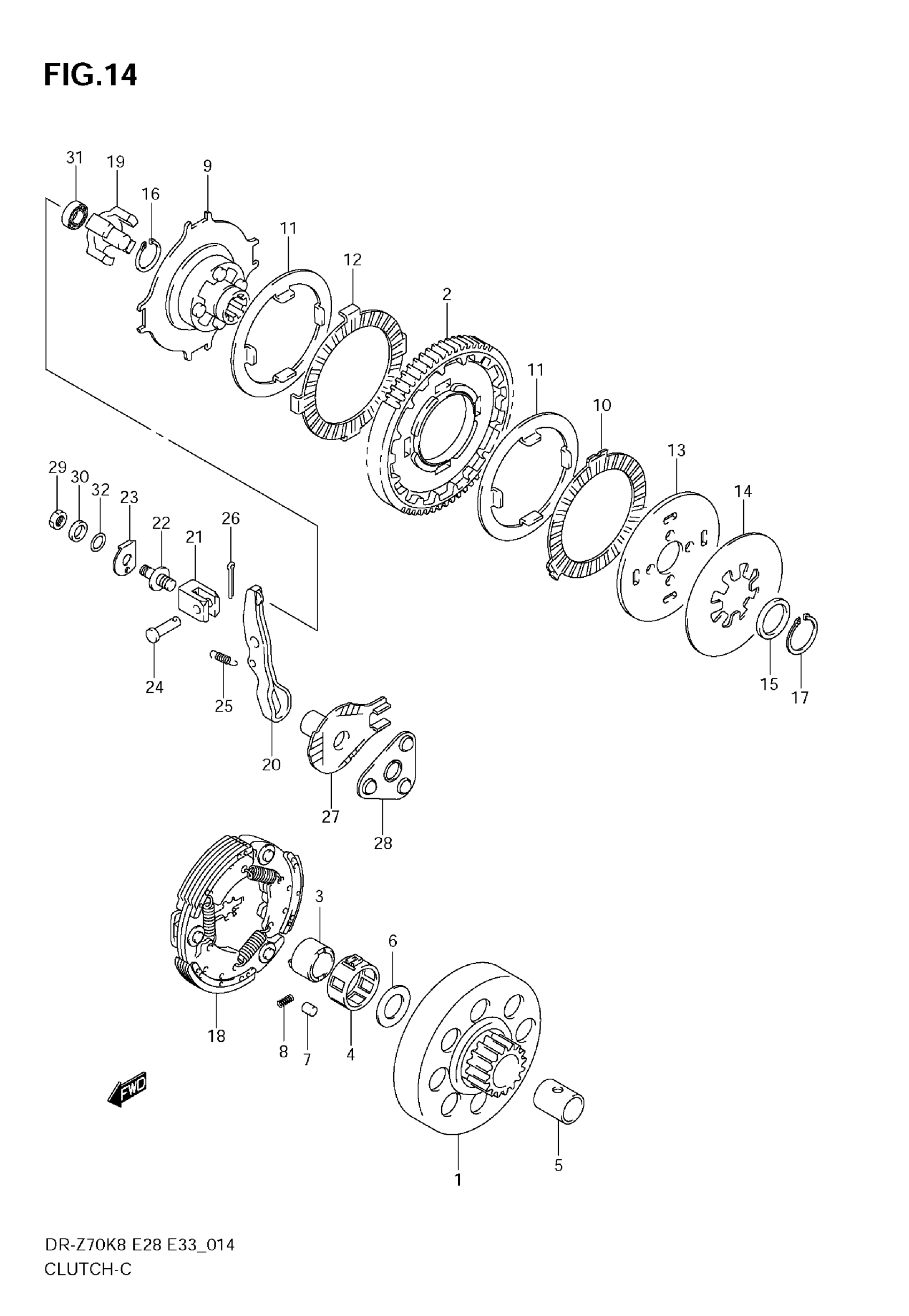

2009 Suzuki DR-Z70 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVE | NT:17

21110-02A03

1
Out of stock

2

GEAR, PRIMARY DRIVEN | NT:65

21210-09410

1
Out of stock

3

RACE, ONE WAY CLUTCH INNER

21631-02A04

1
Out of stock

4

RETAINER, ONE WAY CLUTCH

21652-30D01

1
Out of stock

5

SPACER, PRIMARY DRIVE GEAR | 16X21X23.5

09180-16031

1
Out of stock

6

WASHER, PRI DRIVE GEAR THR | 16X28X0.5

09181-16214

1
Out of stock

7

ROLLER, ONE WAY CLUTCH (7X10)

09261-07006

3
Out of stock

8

SPRING, ONE WAY CLUTCH

09440-02003

1
Out of stock

9

HUB, CLUTCH SLEEVE

21410-09403

1
Out of stock

10

PLATE, CLUTCH DRIVE

21441-09D02

1
Out of stock

11

PLATE, CLUTCH DRIVEN

21451-14H00

2
Out of stock

12

PLATE,CLUTCH DRIVEN,NO.2

21452-35401

1
Out of stock

13

PLATE, CLUTCH PRESSURE

21461-30A00

1
Out of stock

14

SPRING, CLUTCH

09164-22013

—
Out of stock

15

SPACER, CLUTCH SPRING | 22X28X4

09180-22033

1
Out of stock

16

CIRCLIP This part replaces 08331-3117A.

08331-31179

1
Out of stock

17

CIRCLIP This part replaces 08331-3121A.

08331-31219

1
Out of stock

18

CLUTCH ASSY, SHOE

21501-02A02

1
Out of stock

19

PIECE, CLUTCH PUSH

23121-30A01

1
Out of stock

20

ARM, CLUTCH RELEASE

23221-09405

1
Out of stock

21

BOSS, CLUTCH RELEASE ARM

23222-09401

1
Out of stock

22

BOLT, CLUTCH RELEASE ADJUST

23223-09404

1
Out of stock

23

WASHER, CL RELEASE ADJUST BOLT

09169-06046

1
Out of stock

24

PIN, CLUTCH RELEASE ARM

09200-07005

1
Out of stock

25

SPRING, CLUTCH RELEASE ARM

09443-06053

1
Out of stock

26

PIN, CLUTCH RELEASE ARM COTTER

04111-1615A

—
Out of stock

27

GUIDE, RELEASE BALL OUTER

23230-30A01

1
Out of stock

28

BALL, CLUTCH RELEASE

23250-35402

1
Out of stock

29

NUT, CLUTCH RELEASE ADJUST

09140-06023

1
Out of stock

30

WASHER, CLUTCH RELEASE ADJUST | 6.5X13X3.2

09160-06123

1
Out of stock

31

BEARING, PUSH PIECE THRUST

09266-16002

1
Out of stock

32

.O RING (D:1.9,ID:5.7) | D:1.9,ID:5.7

09280-06005

1
Out of stock
