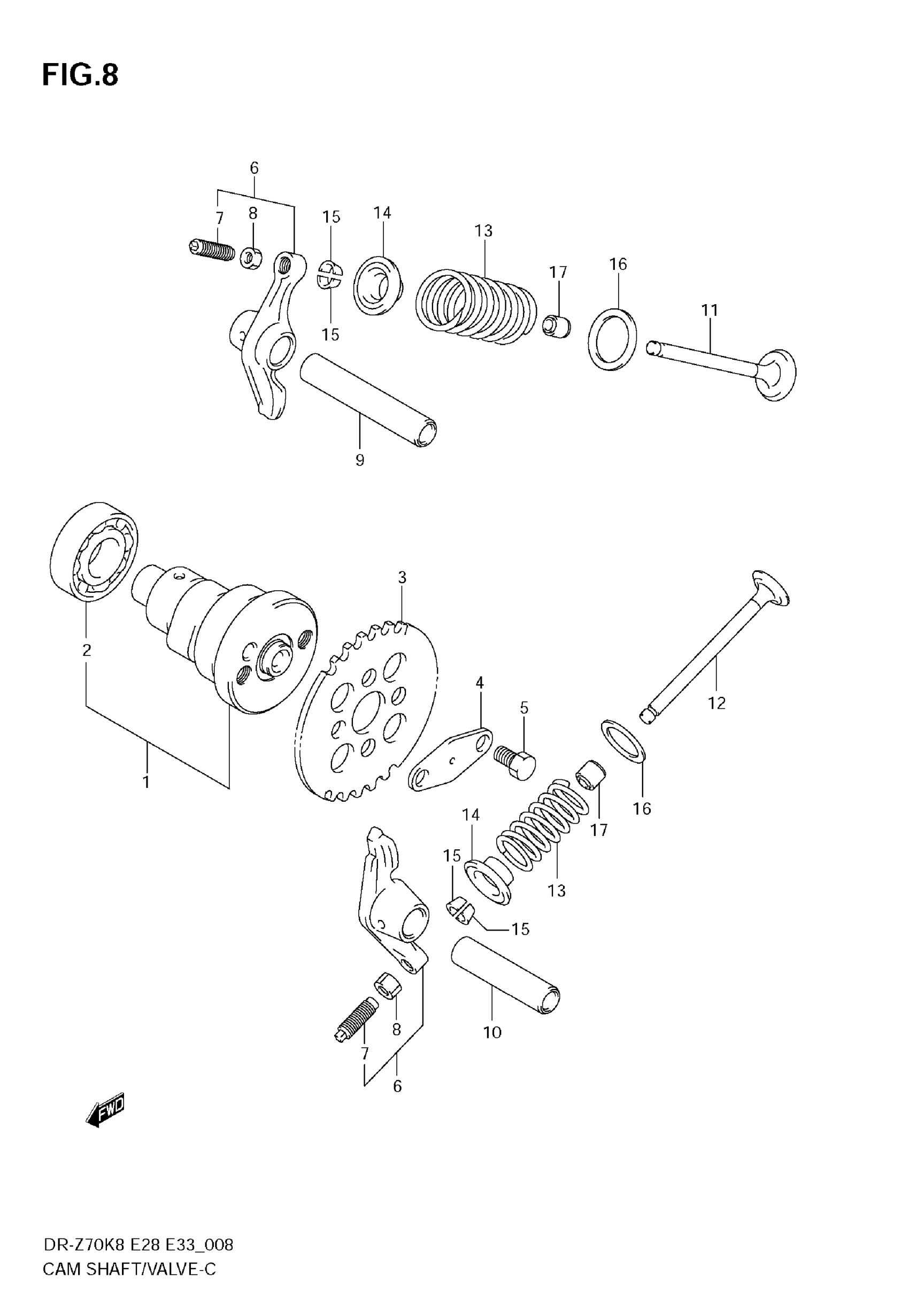

Suzuki DR-Z70 (2009) CAMSHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT ASSY | Includes Item(s) 2

12710-02A10

Unavailable

2

BEARING

09262-15013

Unavailable

3

SPROCKET, CAMSHAFT

12741-09405

Unavailable

4

WASHER, SPROCKET

12714-09401

Unavailable

5

BOLT

09111-06032

$2.21

6

ARM, VALVE LOCKER | Includes Item(s) 7 - 8

12840-30A11

Unavailable

7

SCREW

12842-49201

$6.63

8

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

9

SHAFT, VALVE LOCKER ARM, IN

12861-09401

Unavailable

10

SHAFT, VALVE LOCKER ARM, EX

12871-09401

Unavailable

11

VALVE, INTAKE

12911-09D00

$67.83

12

VALVE, EXHAUST

12912-02A00

$70.17

13

SPRING, VALVE

12921-36G00

$6.74

14

RETAINER, VALVE SPRING

12931-09420

Unavailable

15

COTTER, VALVE

12932-27A00

$2.26

16

SEAT, SPRING

12934-09400

Unavailable

17

OIL SEAL

09289-05008

$6.30
