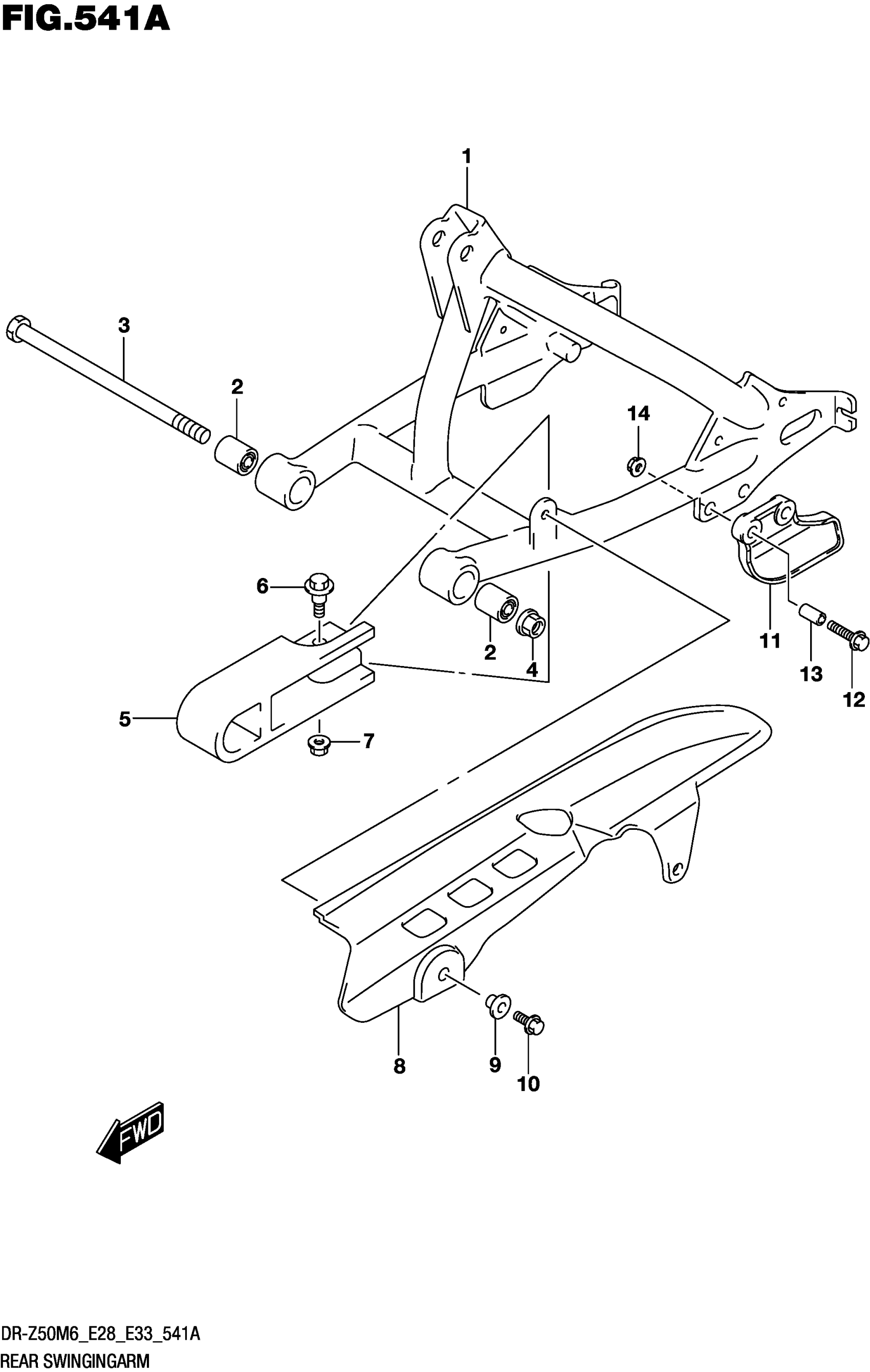

Suzuki DR-Z50M6 (2026) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR (SILVER

61000-14H10-13L

$597.20

2

.BUSH (10X23X30)

09319-10043

$18.85

3

SHAFT,RR SWGARM PIVOT

61211-14H00

Unavailable

4

NUT

08319-3110A

$2.73

5

BUFFER,CHAIN

61273-14H01

$27.18

6

BOLT (6X19)

09111-06092

$3.30

7

NUT (6X12)

08316-1006A

$2.19

8

CASE,CHAIN

61311-14H00

$49.68

9

WASHER

09169-06040

$1.94

10

BOLT

01547-0612A

$2.01

11

GUIDE,CHAIN

61341-14H00

Unavailable

12

BOLT (6X25)

09116-06177

$3.05

13

SPACER,6.1X8X15 (6.1X8X15)

09180-06304

Unavailable

14

NUT (6X12)

08316-1006A

$2.19
