2026 Suzuki DR-Z50M6 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2026 Suzuki DR-Z50M6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

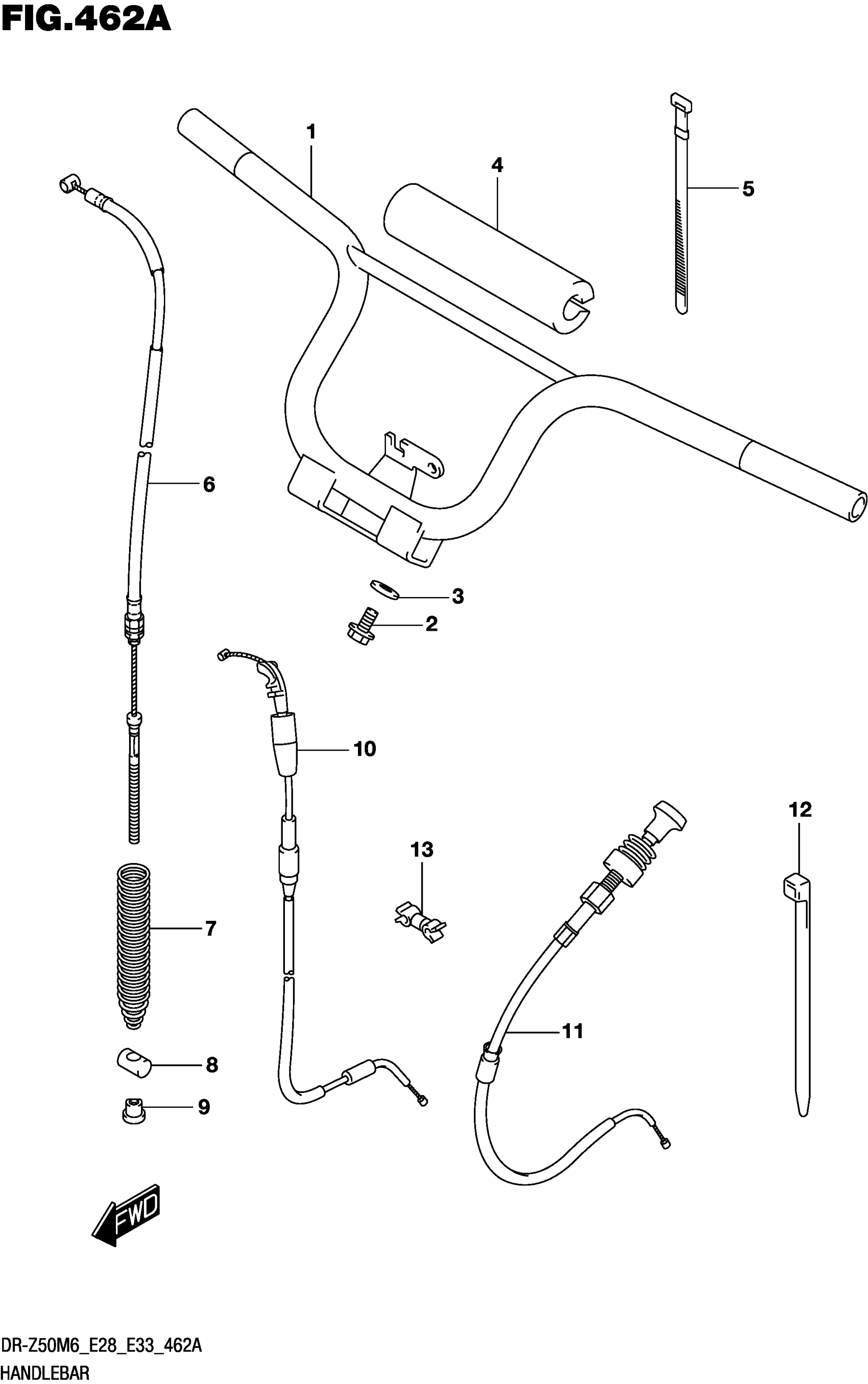

2026 Suzuki DR-Z50M6 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR (SILVER)

56110-14H00-13L

1
Out of stock

2

BOLT (8X16)

01550-0816A

2
Out of stock

3

WASHER (8.5X22X2.0)

09160-08127

2
Out of stock

4

PAD,CROSS BAR

56172-14H00

1
Out of stock

5

CLAMP (L:140)

09407-14401

2
Out of stock

6

CABLE,FRONT BRAKE

58110-14H01

1
Out of stock

7

SPRING,FRONT BRAKE CABLE

58162-14H00

1
Out of stock

8

.PIN (11X18)

09209-11002

1
Out of stock

9

.NUT

09150-06010

1
Out of stock

10

CABLE ASSY,THROTTLE

58300-14H01

1
Out of stock

11

CABLE ASSY,STARTER

58400-14H00

1
Out of stock

12

CLAMP (L:100)

09407-10404

1
Out of stock

13

CLAMP

09408-00049

—
Out of stock
